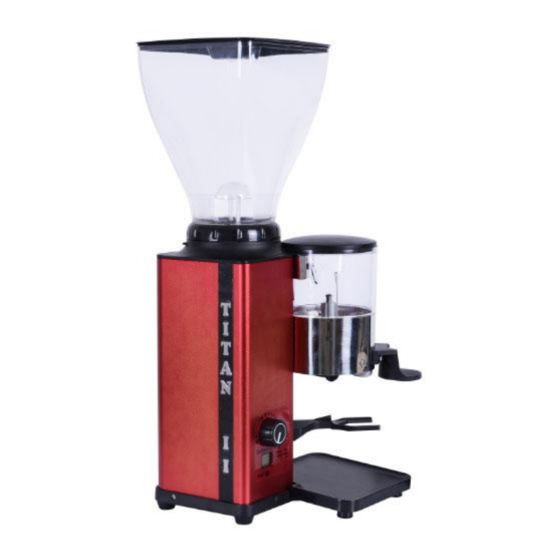

- Page 1 TITAN II (HC-608) S, T, AD Models DISPENSER COFFEE GRINDER © HeyCafé Co., Ltd. Version 5.0, June 2017...
-
Page 2: Warranty Information
WARNINGS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. -
Page 3: Table Of Contents
TABLE of CONTENTS 1) Preface……………………………………………………………………………………………….4. 2) Technical Specifications …….………………………………………………………………4. 3) General Description ……………………………………………………………………..……4. 4) Unpacking and installation ………………………………………………………………..5. 5) Operation……………………………………………………………………………………………7. 6) Safety devices…………………………………………………………………………………….9. 7) Safety instructions………………………………………………………………………….….10. 8) Maintenance and service…………………………………….……….…………………….10. 9) Cleaning…………………….…………………………………………………….……………….10. 10) Remarks and important details………………….…………………….……………….13. © HeyCafé Co., Ltd. Version 5.0, June 2017... -
Page 4: Preface
1) Preface Congratulations for purchasing the Titan II dispenser grinder. The Titan II is a commercial appliance to be used in coffee shops, espresso bars, hotels, restaurants, etc. The Titan II will grind whole been coffee into variable, user - selectable (from super fine to course) coffee powder and will dose It to your espresso machine Porta Filter. -
Page 5: Unpacking And Installation
4) Unpacking and installation: Warning: All appliances’ technical handling operations such as installation, maintenance, or service should be performed by certified personnel or by your local dealer. After opening the box, make sure that the appliance is intact and that there is no visible damage. If there is any doubt, DONOT use the appliance and call your local dealer for further assistance. -
Page 6: Operation
Install the beans hopper firmly into its position on top of the body inside the top grindstone holder. Fasten the hopper to the appliance body by means of the supplied 2mm Allen screw and key. (fig.4.5) Make sure that the screw is inserted completely through the back hole on the hopper’s crown. Fig4.5 ... - Page 7 While on grinding state, never let the grinder run un-attendant in order to avoid over filling of the dispenser which may cause powders’ flow blockage inside the grinding house. Fig 5.1A T Model (Semi-Automatic operation): The appliance is equipped with a 5 minute timer. ...
- Page 8 Operating intervals: In order to avoid over heating of grindstones and grinding chamber (resulting unnecessary heating of the coffee) the manufacturer is recommending using the appliance continuously for short intervals of a few minutes each. Never exceed 10 minutes of continues grinding (or more than 1.5 kg of coffee beans). Adjusting coffee grinding ...
-
Page 9: Safety Devices
In order to increase the amount of single dose, turn the adjusting knob counterclockwise and vice versa (Fig5.3) Test the portioned amounts by using a kitchen scale or simply by dosing single or double dose into your espresso machine’s filter-handle (not supplied) and visually match the dosed portion with your standard. ... -
Page 10: Safety Instructions
7) SAFETY INSTRUCTIONS NEVER OPERATE THE GRINDER IF THE BEAN HOPPER IS NOT FULLY SECURED TO THE TOP GRINDSTONE HOLDER. BEFORE REMOVING THE HOPPER FOR ANY REASON MAKE SURE TO DISCONNECT THE POWER SUPPLY. AVOID CLEARING FOREIGN OBJECTS FROM THE GRINDING CHAMBER OR HOPPER WHEN THE APPLIANCE IS PLUGGED INTO A POWER SOCKET. -
Page 11: Version 5.0, June
Cleaning the grinding chamber and grinding parts Follow the instruction below for grinding chamber and grinding parts cleaning: STEP1 STEP2 After removing the Disconnect the top STEP3 STEP4 hopper and before start grindstone holder screws (Step 3 should be performed Use a brush, a dry cloth, disconnecting screws (3 screws) using the... - Page 12 Do not use sharp objects to scrape coffee residue off of the grindstones. Examine both of the grindstones’ condition and replace them if necessary. The replacement and assembly of a new set of grindstones is a delicate task. Only skilled technical personnel should be allowed to perform grindstone removal and assembly.
- Page 13 Add your remarks here Date Event Remark Purchasing Important details and telephone numbers: Local dealer Address: ________________________________________________________________ Telephone number: ____________________Fax number:_______________________ Technician mobile number: ____________________name: __________________ Coffee beans supplier details:_________________________________________________________________ Telephone number: ____________________Fax number:_______________________ © HeyCafé Co., Ltd. Version 5.0, June 2017...
