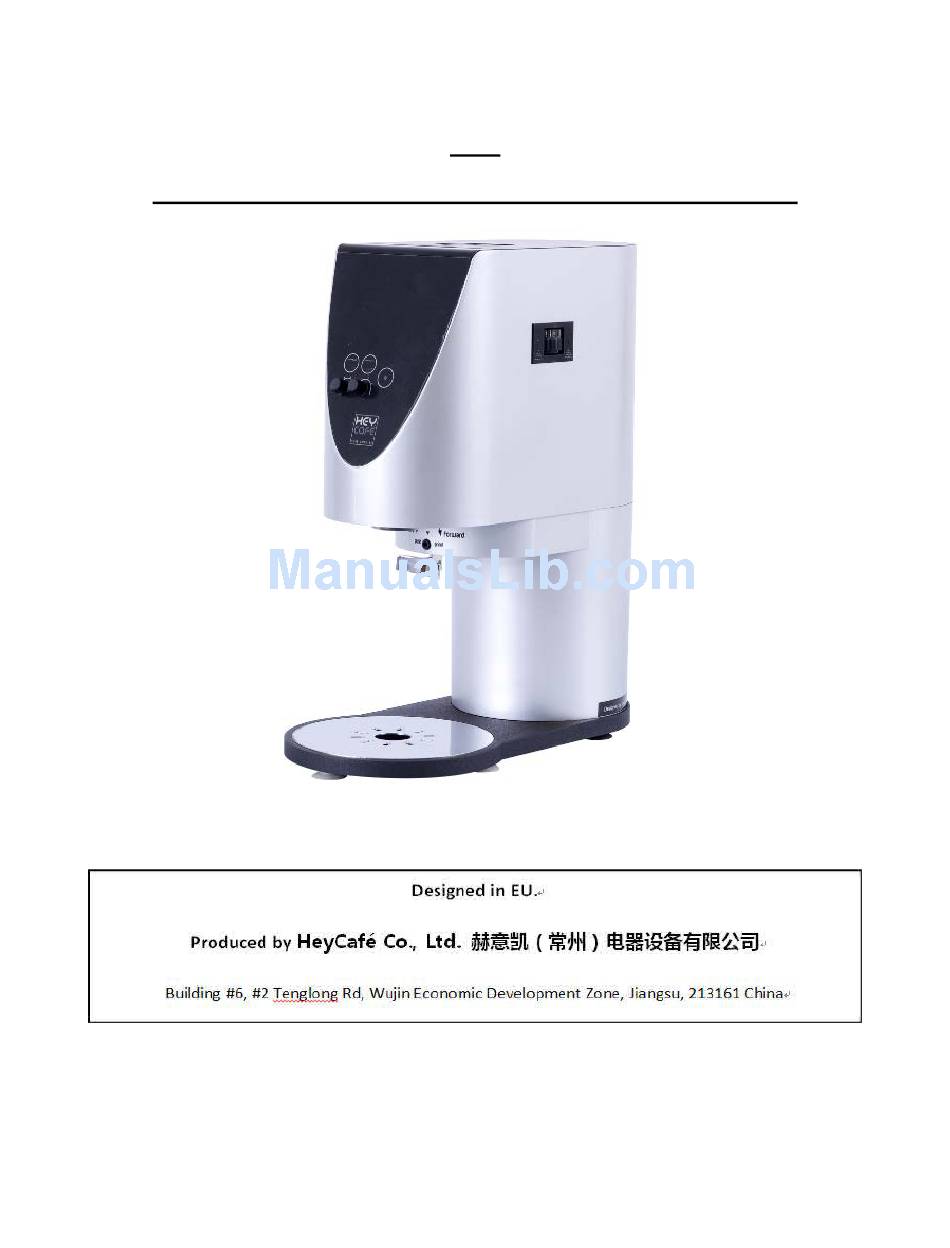

- Page 1 Domestic Professional Coffee Grinder ©HeyCafé Co., Ltd. Version 2.0, August 2016...
-
Page 2: Warranty Information
WARNINGS • This grinder is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the grinder by a person responsible for their safety. •... -
Page 3: Table Of Contents
TABLE of CONTENTS 1) Preface……………………………………………………………………………………………….4. 2) Technical Specifications …….………………………………………………………………4. 3) General Description ……………………………………………………………………..……4. 4) Unpacking and installation ………………………………………………………………..5. 5) Operation……………………………………………………………………………………………6. 6) Safety devices…………………………………………………………………………………….7. 7) Safety instructions………………………………………………………………………….….8. 8) Maintenance and service…………………………………….……….…………………….8. 9) Cleaning…………………….……………………………………………………….……………….9. 10) Remarks and important details………………….…………………….……………….10. ©HeyCafé Co., Ltd. Version 2.0, August 2016... -
Page 4: Preface

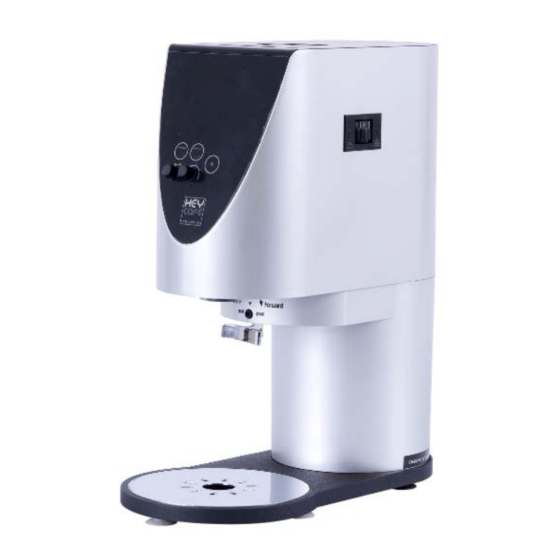

1) PREFACE Congratulations for purchasing the H5 coffee grinder. The H5 is a professional coffee grinder that can be used as a commercial grinder in small coffee shops; espresso bars etc. and as a domestic coffee grinder. The H5 coffee grinder features: •... -
Page 5: Unpacking And Installation
• The way the H5 grinder is operating on each one of the grinding modes can be changed by changing the position of the internal mode switch (for instructions how to change factory setting of the G1/G2 switch please refer to section “G1/G2 grinding function changing”) •... - Page 6 The manufacturer is not recommending grinding continuously for a period of time exceeding 60seconds • The H5 grinder’s duty cycle is 25% (1/4 of the time grinding; 3/4 of the time resting) • It is a normal occurrence that during a long grinding period the grinding chamber will heat up. In order to achieve best grinding results, it is recommended to grind coffee in short intervals of a few seconds each.
-
Page 7: Safety Devices
Adjusting demand switch position • The demand switch was designed to fit different porta filters or containers. In order to change the setting of the demand switch, use the provided Allen Key to turn the switch shaft. • Clockwise turning will advance the demand-fork forward. •... -
Page 8: Maintenance And Service
Never put grinded coffee into the hopper or try to regrind coffee powder • The H5 is a COFFEE GRINDER, never attempt grinding anything else other than roasted coffee beans. 8) MAINTENANCE AND SERVICE Warning: grinder’s maintenance and repair should be performed by certified personnel or by your local dealer. -
Page 9: Cleaning
D) Driving belt replacement The H5 grinder is equipped with a Lifetime warrantied belt (for normal usage of the grinder). Yet, it may happen that jammed blades or improper grinded substance will result an abnormal wear of the belt and the need to replace it. -
Page 10: Version 2.0, August
©HeyCafé Co., Ltd. Version 2.0, August 2016... - Page 11 Add your remarks here Date Event Remark Purchasing Important details and telephone numbers: Local dealer Address: ________________________________________________________________ Telephone number: ____________________Fax number:_______________________ Technician mobile number: ____________________name: __________________ Coffee beans supplier details:_________________________________________________________________ Telephone number: ____________________Fax number:_______________________ ©HeyCafé Co., Ltd. Version 2.0, August 2016...
- Page 12 Opening the H5 for different service needs: 1. ing the grinding house: Open the beans lid and Pull out the beans hopper Set the grinding coarseness empty the beans hopper by pulling the side ribs to most fine While holding the dial knob...
- Page 13 Identify the 4 screws under Identify the 2 screws Pull up to apart the upper the hopper area (6 screws under the screen body from bottom body including previous step) holder and release them Remove the top body Use the provided Allen Remove 3 screws and top burr holder from the bottom body...
- Page 14 Opening the H5 for different service needs: 1. ing the grinding house: Cut the wires’ strapping Disconnect the controller Pull out the main controller along the grinder’s core card (2 screws) and disconnect the cables Open grinder’s 4 holding screws...
- Page 15 Separate the motor from the grinding Remove motor’s screws (2) frame Install the new replacement belt (always Remove the worn out belt use the original part from HeyCafé Screw in the 2 motors’ screws and Lightly (!!) tight the belt and close the allow for motor swivelling tightening screw and pivot screw...
