USING THE POWERMASTER – Front Panel Controls
GENERAL OPERATION

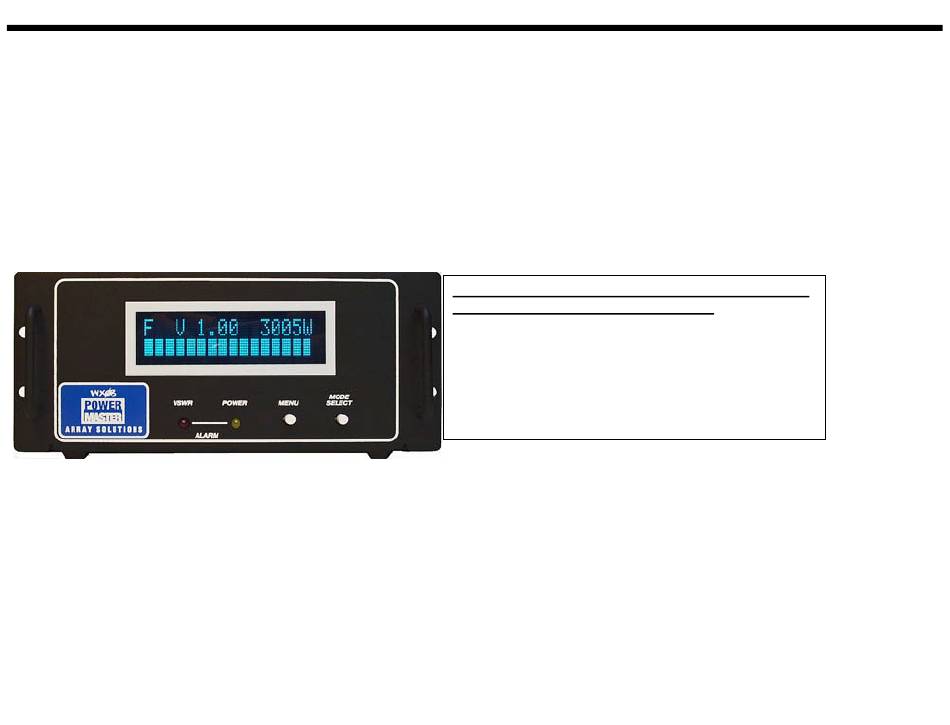

In addition to the large vacuum fluorescent display, there are two buttons on
the front of the PowerMaster: "Menu" and "Mode Select."
These buttons are used to select the operational mode, and to program the
meter's several functions such as VSWR Alarm, Power Monitor Alarm,
Auto Ranging Scales, etc.
Note the Pictures used in the following text are of the previous meter box mixed with the new meter box. The functions are all the same.
Operation Menus - A tour of how to program from the front panel buttons
PowerMaster Series RF Wattmeter
The following discussion shows you how to operate the meter. As we add
more features, you will be able to download more options for your meter
from the Array Solutions Website. You are invited to join the Array
Solutions User's Group which can be found on the Array Solutions
website.
After Power-Up the meter enters the Normal Operation
Mode – see upper left character selection
Push the mode select button to choose from:
F – Fast hold of peak power, .2 second
M – Medium hold, 1 second
S – Slow hold of peak power, 2 seconds
L - Long 5 seconds
V – VSWR is displayed on Bar Graph – see next page
