Pushing the menu button again takes us to the next menu.
Pushing the menu button again takes us to the next menu.
PowerMaster Series RF Wattmeter

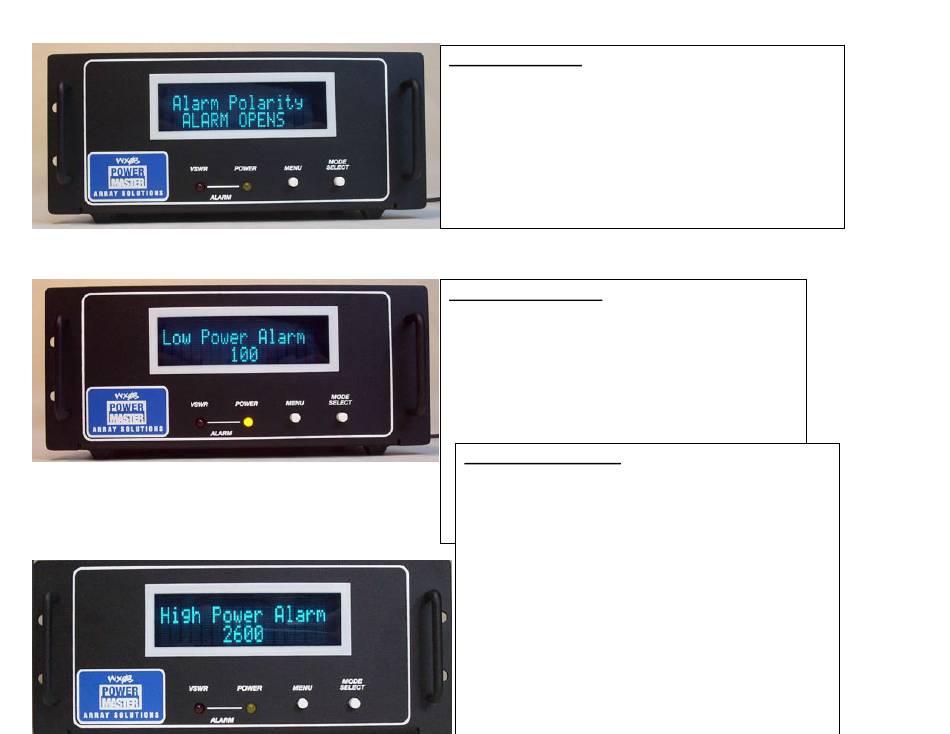

Alarm Polarity Menu
(This option only displays if VSWR Alarm Limit is not set to off)
Select by pushing the mode select button:
ALARM OPENS Relay
ALARM CLOSES Relay
This applies to the PTT/ALC relay only – not the Power Monitor
relay.
Low Power Alarm Menu
Push the mode select button to choose trip point in watts:
Off
5
50
100
250
500
1,000
2,000
High Power Alarm Menu
If the peak power remains below this setting for a few
Push the mode select button to choose trip point in watts:
seconds the power alarm LED will light and the power
0 ( off)
monitor relay will actuate.
175
Push the mode select button to reset the alarm and LED
225
700
1,100
1,600
2,600
3,000
If the peak power exceeds this setting the power alarm LED
Array Solutions Rev 3.5 Feb 20, 2007
will flash and the power monitor relay will cycle on and off. If
the "Alarm Trips Amp", next menu, option is selected then the
VSWR alarm LED will also flash and the PTT/ALC relay will
actuate but will not cycle.
