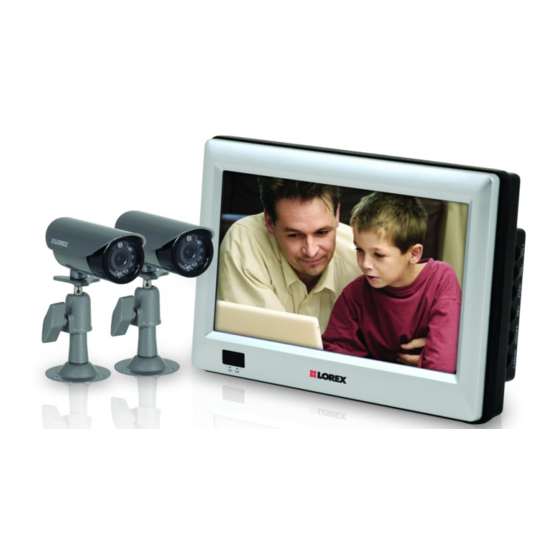

- Page 1 7” LCD Video Surveillance System with 2 Indoor/Outdoor Day/Night Cameras Instruction Manual English Version 1.0 MODEL: SHS-2S7LD Series www.lorexcctv.com © Copyright 2007 LOREX Technology Inc.
- Page 2 Thank you for purchasing the SHS-2S7LD. Lorex is committed to providing our customers with a high quality, reliable security product. To learn more about this Video Surveillance Product, and to learn about our complete range of accessory products, please visit our website at: CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK NO USER SERVICEABLE PARTS INSIDE.
-
Page 3: Important Safeguards
Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment. - Page 4 Important Safeguards Service 13. Servicing - Do not attempt to service this video equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 14. Conditions Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions.
-
Page 5: General Precautions
4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked 5. During lightning storms, or when the unit is not used for a long time, disconnect the power supply, antenna, and cables to protect the unit from electrical surge LOREX TECHNOLOGY INC. http://www.lorexcctv.com General Precautions... -
Page 6: Table Of Contents
Table of Contents SHS-2S7LD Features ... 7 Getting Started ... 8 SHS-2S7LD - Front / Bottom Views ... 9 SHS-2S7LD - Side View ... 10 Monitor Mount - Stand & Wall Mount ... 11 Counter / Table - Vertical ... 11 Counter / Table - Picture Frame ... -
Page 7: Shs-2S7Ld Features
SHS-2S7LD Features Monitor: • 7'' TFT LCD Monitor • 2 channels with auto scanning function that witches between cameras • Easy connection to TV, VCR or Monitor with the included A/V cable • OSD (On-screen Display) • Small footprint - fits on a desk like a picture frame •... -
Page 8: Getting Started
Getting Started Getting Started The SHS-2S7LD comes with the following components: 1 x 7” LCD Monitor 1 x Monitor Stand 1 x Wall Mount Bracket 2 x Cameras with Stands 2 x 60’ (18m) Extension 1 x Mounting Screws Cables... -
Page 9: Shs-2S7Ld - Front / Bottom Views
SHS-2S7LD - Front / Bottom Views Front 1. CH1 / CH2 LED DISPLAY - Indicates the currently displayed Camera number with a solid green LED indicator light. When the System is in auto switching mode, a Green Blinking light will appear. -
Page 10: Shs-2S7Ld - Side View
SHS-2S7LD - Side View SHS-2S7LD - Side View 1. VOLUME +/- - Raises or Lowers the Volume from the System. 2. FUNC BUTTON - Controls the display settings for the Monitor: • Press FUNC to cycle through the available options:... -
Page 11: Monitor Mount - Stand & Wall Mount
Monitor Mount - Stand & Wall Mount This system has a variety of Mounting Options. It can be placed on a Table or Countertop, can be attached to a stand or wall mounted. Counter / Table - Vertical • Place the System in the desired viewing location. The system is designed to remain balanced when placed on any flat surface. -
Page 12: Shs-2S7Ld Cameras
SHS-2S7LD Cameras SHS-2S7LD Cameras The System includes 2 Color Day/Night*, Indoor/Outdoor Cameras** with built in microphone. INFRARED LEDs* - Provides illumination for low light conditions CAMERA LENS MICROPHONE - Provides one way audio from the Camera to the Monitor STAND -... -
Page 13: Camera Installation
Camera Installation Before you install the camera, carefully plan where and how you will position the camera, and where you will route the cable that connects the camera to the SHS-2S7LD. Installation Warnings: • Select a location for the camera that provides a clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a strong light source or direct sunlight. -
Page 14: Connecting Cameras
Camera Installation Connecting Cameras 1. Connect the female end of the supplied 60’ extension’ cable to the camera. NOTE: Confirm that the arrows on the DIN Camera Cable and the DIN Extension cable are pointed together when connecting the cable. If the pins in the DIN Cable are bent, the Camera will NOT function. -
Page 15: (Optional) Connection To A Tv / Monitor / Vcr Using The Av Cable
Connect the Phone Jack End o the Audio/Video Cable to the AV Output Port on the bottom of the System. Connect the other RCA end to the Monitor (Yellow: Video / White: Audio). TV / VCR / MONITOR SHS-2S7LD Connectivity Diagram POWER 2 x CAMERAS 60’ EXTENSION TV / VCR / ADAPTOR CABLE MONITOR SHS-2S7LD SYSTEM VIDEO CABLE... -
Page 16: Shs-2S7Ld System Specifications - Appendix #1
SHS-2S7LD System Specifications - Appendix #1 SHS-2S7LD System Specifications - Appendix #1 Resolution Monitor Display Video Inputs Audio Inputs Audio Output Audio Supply Voltage Power Consumption Operating Temperature Range Power Supply Video Input AV Output Unit Weight Unit Dimensions 7”... -
Page 17: Camera Specifications - Appendix #2
Camera Specifications - Appendix #2 Image Sensor Pixels Video Format Horizontal Resolution Scan System Sync System S/N Ratio Iris AES Shutter Speed Minimum Illumination Video Output Lens FOV (Diagonal) Termination IR LED Night Vision Range IR LEDs Power Requirement Power Consumption Operating Temperature Environmental Rating Built-in Condenser Microphone... - Page 18 It’s all on the web Product Information User Manuals Quick Start Guides VISIT www.lorexcctv.com Lorex Technology Inc. Specification Sheets Software Upgrades Firmware Upgrades wwwlorexcctv.com...
