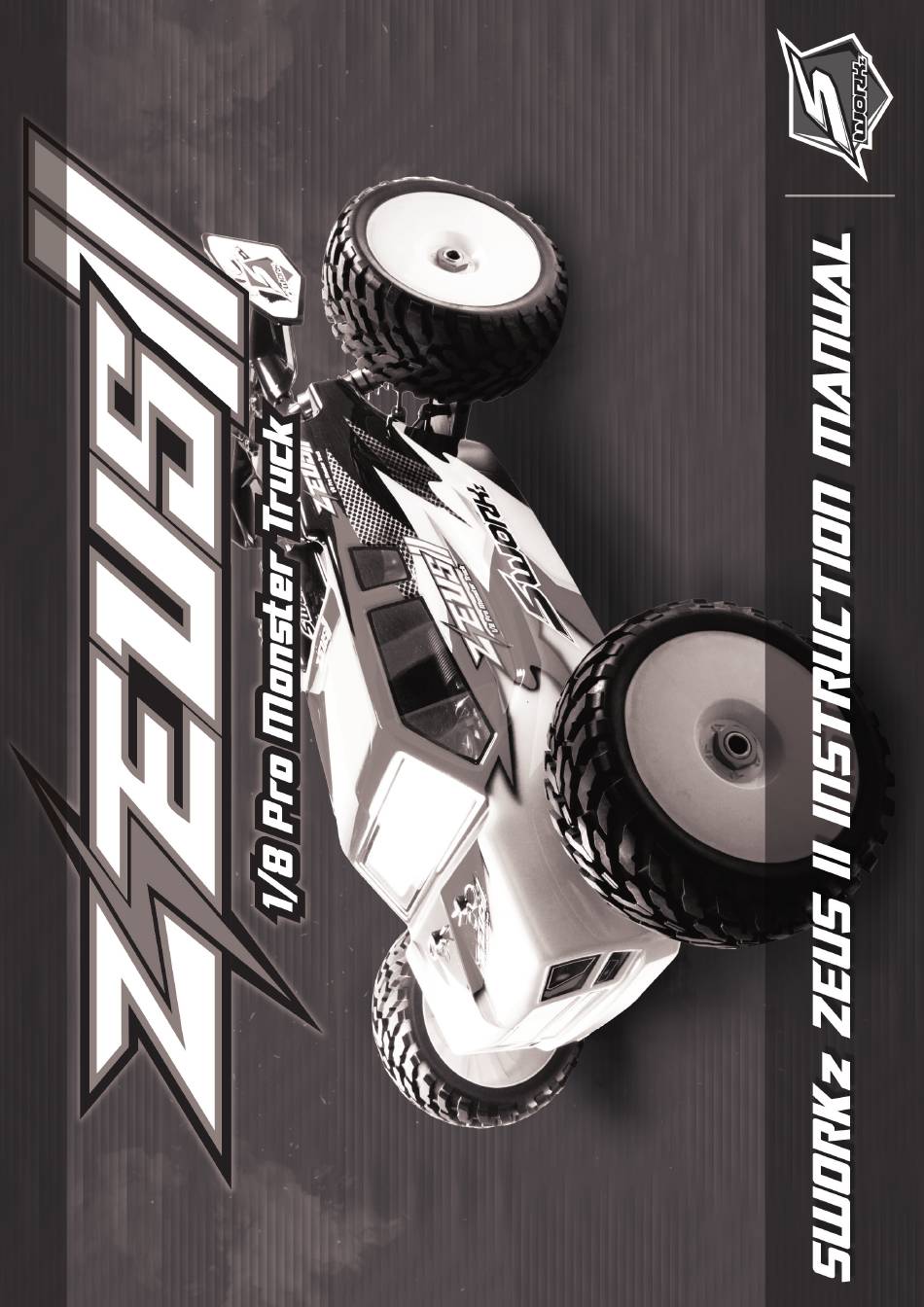

SWorkz ZEUS II Instruction Manual

1/8 pro monster truck
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZEUS II and is the answer not in the manual?

Questions and answers

Related Manuals for SWorkz ZEUS II

Summary of Contents for SWorkz ZEUS II

  • Page 2 The pivot ball steering system gives the driver sharp and accurate turning feedbacks. The ZEUS II EP Monster Truck comes with a race inspired base set up that is easy to drive. ZEUS II Kit Features: 1.

  • Page 3: Specification

    Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert...

  • Page 4: Assembly Steps

    INSTRUCTION Warranty Required Equipment for Operation Operation Guide Assembly Steps 7-33 ZEUS II Key No. List ZEUS II Spare Part List 34-35 ZEUS II Option Part List End cover This radio controlled racing car is not a toy! This high-performance R/C model is recommended for ages 14 and older.
  • Page 5 R e q u i re d Equ ip me nt fo r O p erat io n Radio Gear Stick Type Receiver ESC system Steering servo Wheel & Trigger Type Breshless Motor Charger and LiPo Battery Tools Recommended Long nose pliers Side cutter 1.5mm Paint...

  • Page 6: Thread Locking Compound

    The ZEUS II Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from the abuse or misuse of this product or any other product required while operating this model.
  • Page 7 Bevel Gear Shaft 101004 Washer 3.5X10X0.2mm 610002P 101004 101004 320004 330013 101004 320004 101004 Fill the differentials with oil up to 80% above the satellite gears. Put the SWORKz Diff. Oil 7000cps for the front Diff. and 3000cps for the rear Diff.
  • Page 8 Bevel Gear Shaft 108007 610002P 101004 Washer 3.5X10X0.2mm 2501469-01 (45T) 101004 2501469-02 (46T) 2501469-03 (47T) 108007 101004 320004 330013 320004 101004 101004 Fill the differentials with Oil up to 80% full. Use SWORKz Diff. Oil 7000cps for the center Diff.
  • Page 9 2501529 104010 M5x4mm Set Screw (Flat Bottom) 116006R 116006R 106010 M3x6mm Hex Socket OH/TP Screw 2501114 108001 M3x12mm FH/ST HEX Screw 106010 116006R Ball Bearing 8x16x5mm (Red Rubber Case) 2501114 330501A 104010 101018 SHIM 13x16x0.2mm 106012 M3x35mmHex Soket OH/TP Screw 108001 330227 2501096...
  • Page 10 104010 116006R M5x4mm Set Screw (Flat Bottom) 2501529 116006R 108001 M3x12mm FH/ST HEX Screw 2501114 106008 106010 330501A M3x12mm Hex Socket OH/TP Screw 104010 330830 116006R 330227 Ball Bearing 8x16x5mm (Red Rubber Case) 106008 101018 106008 108001 101018 SHIM 13x16x0.2mm Please use the SHIM 13x16x0.2mm to adjust when the play was bigger between the crown gear and pinion...
  • Page 11 2501100 108008 M3x35mm FH/ST HEX Screw 2501100 2503260-24.25 101020A 330103 3mm Countersunk Washers (GM) 2503260-24.25 330831 101020A Use a 2mm Hex Wrench and slowly tighten the Hinge Pins. 108008 2.0mm 330103 Front/Rear Lower Arm HingPin 2501114 Pop in the Stabilizer Guide. After assembly ensure that both 104004 suspension arms move freely.
  • Page 12 104005 M3x4mm Set Screw 105004 M2.6x6mm Cap Screw 104005 104005 105004 108003 103001 M3 Nut Lock 340037 108003 108003 M3x10mm FH/ST HEX Screw 2501096 103001 103001...
  • Page 13 2501099 108001 330119 2501100 M3x12mm FH/ST HEX Screw 2502039B 2501099 2502040-02 2501099 330119 2501100 106002 106002 2501099 2502039B 108001 330815A 106002 330119 M3x10 mm Hex Socket OH/TP Screw Front Upper Arm HingPin 108019 330136 2502038B 2501121C 330134 106021A 2502038B M4x10mm Hex Socket OH/TP Screw 106005 106005 M3x15mm Hex Socket OH/TP Screw...
  • Page 14 2502040-02 330816A 106002 M3x10mm Hex Socket OH/TP Screw 108001 M3x12mm FH/ST HEX Screw 106002 108001 108001 The rear lower arm holder insert can offer 1.0, 2.0 and 3.0 rear kick-up for your rear lower suspension. 2501099 R/F Insert (1 degree) 2501099 R/F Insert (0 degree) 2501099 Cut away the plastic part as in picture...
  • Page 15 2501114 Pop in the Stabilizer Guide. 104004 M3x3mm Set Screw 104004 104004 105005 104005 M3x4mm Set Screw 105004 M2.6x6mm Cap Screw 104005 104005 105004...
  • Page 16 106007 116004R 117003 330135A 106007 338109 117003 115004 103001 330251 M3 Nut Lock 2501667-5 101021 101021 M3x8xT1mm 330251 116004R 101021 2501122B 116004R Ball Bearing 6x10x3mm (Red Rubber Case) 106007 M3x12mm Hex Socket OH/TP Screw(HT) 2501122A 103001 330114A 103001 106002 106002 M3x10mm Hex Socket OH/TP Screw 116004R Ball Bearing 6x10x3mm (Red Rubber Case)
  • Page 17 106002 2501098A M3x10mm Hex Socket OH/TP Screw 106002 Right 340035 340035 330252 2501100 Left 330118A 2501098A 330118A Screw and adjust 330118 Knuckle 330252 Pivot Ball Nut so as the pivot ball can be moved smoothly. 2501100 104010 M5x4mm Set Screw (Flat Bottom) 330110 330111 Pin M2.5x14.8mm...
  • Page 18 104010 M5x4mm Set Screw (Flat Bottom) 330110 330111 Pin M2.5x14.8mm 330112 330552 330124 Pin M3.0x16.8mm 330111 116006R Ball Bearing 8x16x5mm (Red Rubber Case) 2501095A 2501095A 116006R 116012 330121A 116012 Right Ball Bearing 15x21x4mm 330124 Left 104010 330117A Knuckle Pivot Ball Washer 330117A...
  • Page 19 103001 2501100(3mm) 103001 M3 Nut Lock 330401 Rear Hub Carriers Hing Pin with Nut 330401 2501100(1mm) 2501121C 338070B 2501121C 330458 330458 S350T Rear Upper Arm Turnbuckle M5x72mm 330125 48.1 mm...
  • Page 20 105011 M3x23mm Cap Screw 106002 106002 M3x10mm Hex Socket OH/TP Screw 105011 103001 2501097 106003 103001 2501097 103001 106008 2501097 103001 106008 M3x12mm Hex Soket OH/TP Screw 106008 103001 M3 Nut Lock 2501097 2501097...
  • Page 21 106006 106006 M3x20mm Hex Soket OH/TP Screw 106003 M3x16mm Hex Socket OH/TP Screw 106003 108007 108007 228004A 108007 108007 108007 108007 108007 338108 M3x6mm FH/ST HEX Screw 108007 108007 108007 228004A 108007 108007 108007...
  • Page 22 108003 M3x10mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw 108012 M4x16mm FH/ST HEX Screw 108012 108010 108003 108012 M4x16mm FH/ST HEX Screw 2501097A 108012...
  • Page 23 108001 108001 340015 M3x12mm FH/ST HEX Screw 108012 M4x16mm FH/ST HEX Screw 108012 108012 106002 Motor is not included 104011 340036 106002 M3x10mm Hex Soket OH/TP Screw 106006 228007 106006 106008 M3x20mm Hex Soket OH/TP Screw 330235 106008 338107 M3x12mm Hex Socket OH/TP Screw 105020 228007 PRO TIP:...
  • Page 24 330697 330699B 228007 108003 M3x10mm FH/ST HEX Screw 108010 M4x10mm FH/ST HEX Screw 108003 108010 338038B 338070B 228006-5 338070B 1.0mm 106002 M3x10mm Hex Soket OH/TP Screw 228006-5 338070B 104014 M5X25mm set screw 228006-5 104014 106002 338070B 106002 106002 106002...
  • Page 25 The 2503221BK Battery Stoper must be suit for different Lipo Battery style. 108006 M3x8mm FH/ST HEX Screw 108006 2503221BK 2503221BK 540001 2503221BK 540001 108006 108006 108006 M3x8mm FH/ST HEX Screw...
  • Page 26 Right 2501121C 330459 S350T Steering Linkage Turnbuckle M4x75mm 330777A 330459 330777A Left 2501121C 52.65 mm 106002 106002 M3x10mm Hex Soket OH/TP Screw 106002...
  • Page 27 330134 228006 108006 101012 M3x8mm FH/ST HEX Screw OPTION: SW-338078-25 108003 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 25T M3x10mm FH/ST SW-338078-23 SWORKz Uni-Design 2-Way System Aluminum Steering Servo Horn 23T 101012 M3x6xT0.6mm 228007 Servo is not included in the kit.
  • Page 28 1/8 ESC is not included 108003 M3x10mm FH/ST 400013 400013 108003 108003 106010 106010 M3x6mm Hex Socket OH/TP Screw 2503221 108007 M3x6mm FH/ST HEX Screw 200193 108007 108007 Receiver is not included 2503221BK...
  • Page 29 103004 Front 330634 Front 330636 Rear 330633 330558(L) S350 New BBS System Shock Shaft (L) Rear 330635 400020 330559(S) 330562A S350 New BBS System Shock Shaft (S) 210058 101011 210058 210058 103004 M2.5mm Nut Lock 210058 330557 210058 Shock Seal Washer 3.5X7X1.0mm 2501121C 210058 Front 400010(S)
  • Page 30 330138 101010A 105013A 101010A M3x25mm Cap Screw 330138 101010A 105013A 101010A 105013A 103003 103003A Flange M3 Nut Lock 106005 M3x15mm Hex Socket OH/TP Screw 106005 103003A 106005 103003A 106005 103003A 106005...
  • Page 31 105005 2501116 2501116 105005 M3x12mm Cap Screw 2501116 330122A Wheel Nut Tires and wheels are not included in the kit. 330122A 330122A...
  • Page 32 Lipo Batteries are not included Use water/washing solution to clean body. Apply window masks as shown. 510110M Paint body.
  • Page 33 115019...
  • Page 34 2 SW-2501114 108012 M4x16mm FH/ST HEX Screw 8 SW-108012 2501116 SWORKz High Down Force Wing Set (BK)(Fit S350) 1 SW-2501116 108010 M4x10mm FH/ST HEX Screw 6 SW-108010 2501121C S35/S350 Series Ball End Set with Shock Plastic Parts (2 Set) 2 SW-2501121C...
  • Page 35 Item No. Part Name Item No. Part Name SW-330241 BE1 Center Supar Gear Mount SW-228008BK SWORKz 1/8 Off Road Formula 2.0 Race Wing (BK) SW-330245 BE1 Motor Gear 15T SW-228013BK SWORKz 1/8 Off Road Pro-Speed 2.0 Race Wing (BK)(Pre-Holes) SW-330251...
