Trane BAYKSKT257 Installer's Manual

Start control kit

WARNING:

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information

pack upon completion of work.

INSTALLATION:

Be certain power to unit is DISCONNECTED.

Remove cover panel on control box compartment.

Open Start Control Kit and remove kit assembly.

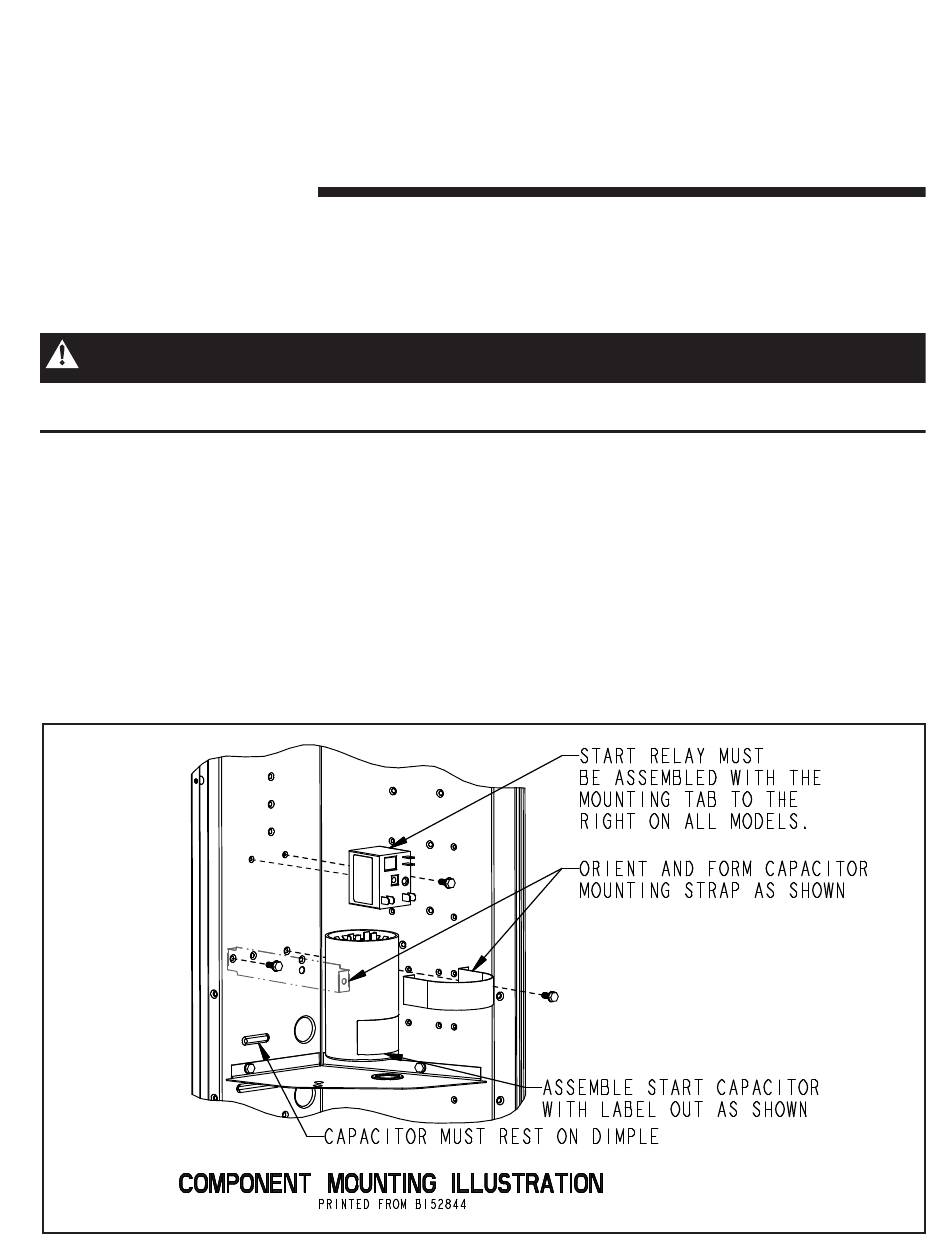

With the screws provided, secure Start Control kit

assembly in control compartment as illustrated. (See

Figure 1)

①

Installer's

Guide

Start Control Kit

BAYKSKT257, 258, 259, 260, 263, 265 & 266

HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING

18-HE12D7-5A-EN

Connect the color coded start control wires with quick

connect 1/4" flag terminals to the contactor and capaci-

tor, as illustrated. (See Figure 2)

To replace control compartment panel reverse proce-

dure used to remove these items.

Re-connect power, which was disconnected in step 1.

Table of Contents

Do you have a question about the BAYKSKT257 and is the answer not in the manual?

Page 1 18-HE12D7-5A-EN Installer's Guide Start Control Kit BAYKSKT257, 258, 259, 260, 263, 265 & 266 WARNING: HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.
Page 2 ② About Trane and American Standard Heating and Air Conditioning Trane and American Standard create comfortable, energy efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
