Sper scientific 860043 Instruction Manual

Free and total chlorine meter
Hide thumbs Also See for 860043:
Table of Contents

Advertisement

Quick Links

Download this manual
Free and Total
Chlorine Meter
860043
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 860043 and is the answer not in the manual?

Questions and answers

Related Manuals for Sper scientific 860043

Summary of Contents for Sper scientific 860043

  • Page 1 Free and Total Chlorine Meter 860043 Instruction Manual...

  • Page 3: Table Of Contents

    Table of Contents 1. Features ............4 2. Specifications ..........5 3. Front Panel Description ........ 7 4. Mode Selection ..........8 4. Calibration Procedure ........8 5. Measuring Procedure ........10 Measurement..........10 Data Hold ............ 11 Data Record ..........11 6.

  • Page 4: Features

    Features: The meter measures Free and Total Chlorine between 0.00 to 3.50 ppm ( mg/L ). The measuring method is an adaptation of the USEPA Method 330.5 for waste water and Standard Method 4500-Cl G for drinking water. The advanced optical system is based on a special narrow band LED lamp that allows most accurate and repeatable reading.

  • Page 5: Specifications

    Specifications: Display LCD size : 41 mm x 34 mm Range Free chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ). Total chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ). Resolution 0.01 ppm ( mg/L ). Accuracy ±...
  • Page 6 Power Current Stand by Approx. DC 4 mA. Testing Approx. DC 12 mA. Weight 320 g/0.70 LB. Battery is included. Dimension 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch) Accessories • Instruction manual ..………………….1 PC Included •...

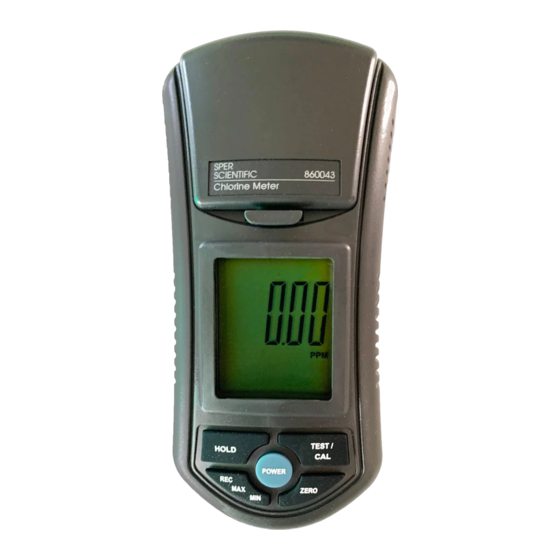

  • Page 7: Front Panel Description

    Front Panel Description: 3. FRONT PANEL DESCRIPTION 3-1 - Test Chamber Cover 3-1 Test Chamber Cover 3-2 - Test Chamber 3-2 Test Chamber 3-3 - Display 3-3 Display 3-4 - Hold Button 3-4 Hold Button ( Esc Button ) 3-5 - TEST/CAL Button 3-5 TEST/CAL Button 3-6 - Power Button 3-6 Power Button...

  • Page 8: Mode Selection

    Mode Selection: Follow these steps to switch between Free and Total Chlorine testing modes. 1) With the meter off, press and hold the HOLD button and the REC/MAX/MIN button. While continuing to hold the HOLD and the REC/MAX/MIN button, press the Power button. The unit will enter the selection mode and display the current mode selected.
  • Page 9 Calibration Procedure (continued): 3) Follow the steps below to perform calibration of the zero and 1.0ppm standards 1) Open the test chamber, place the zero chlorine standard in the chamber and close the chamber lid. Note: Be sure the testing bottle is seated fully and oriented correctly.

  • Page 10: Measuring Procedure

    Measuring Procedure: Note: Be sure to selected the appropriated measurement mode before performing a measurement. Refer to the Mode Selection. 1) Fill the testing bottle to the 10ML line with test sample. 2) Open the test chamber and place the test sample in the chamber and close the chamber lid.

  • Page 11: Data Hold

    Measuring Procedure (Continued): Data Hold Function 1) During the measurement, pressing the HOLD button once will hold the measured value and will display a HOLD symbol. Note: Press the HOLD button once again to release the data hold function. Data Record Function Note: The data record function only records the maximum and minimum readings.

  • Page 12: Battery Replacement

    If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available. This warranty does not cover sample vials, batteries, battery leakage, or damage resulting from accident, tampering, misuse, or abuse of the product.
