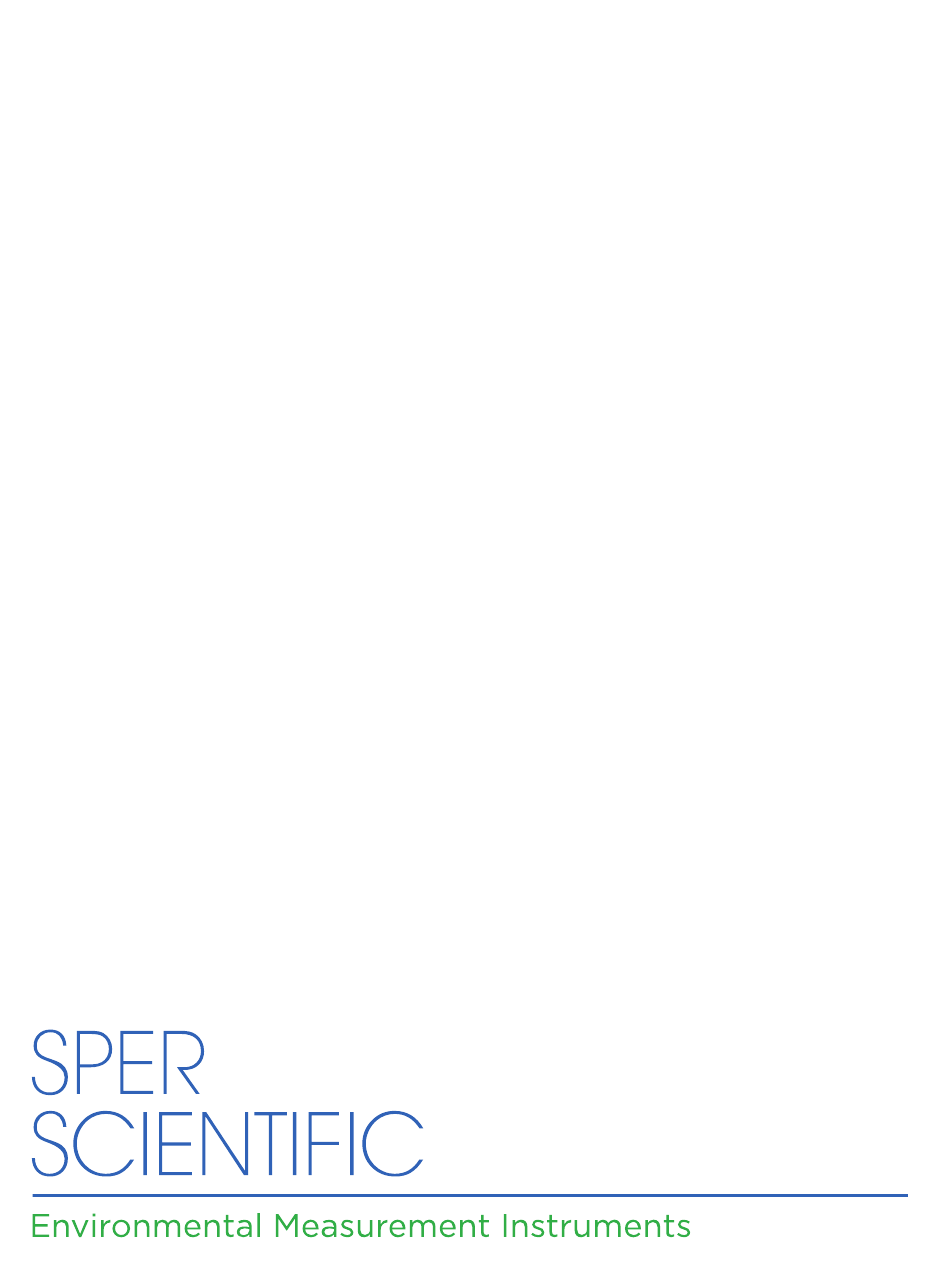

  • Page 1 3 Axis EMF Meter 860041 Instruction Manual...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ..........4 APPLICATION ..........5 FEATURES ............6 IDENTIFYING PARTS ........7 MEASUREMENT PROCEDURES ....9 CLOCK SETUP ..........11 AUTO POWER OFF SETUP ......12 CONTINUITY DATALOGGING SETUP..13 CLEAR DATALOGGER MEMORY ....14 SINGLE DATA MEMORY ......16 VIEW LOGGED READING CONTROL KEY .. 16 BATTERY REPLACEMENT ......

  • Page 4: Introduction

    INTRODUCTION Safety precautions should be taken against electric appliances in places including medical institutions, schools and residential districts, where people usually stay a long time, to prevent patients, babies and snior citizens from exposure to high electromagnetic waves. An electromagnetic wave simply means the wave motion of the electromagnetic field (EMF).

  • Page 5: Application

    APPLICATIONS • This meter is applied to measuring magnetic fields of extremely low frequency (ELF) of 30 to 200 Hz. • It is capable of measuring the magnetic field radiation intensity that is produced from electric transmission equipment, power lines, microwave ovens, air conditioners, refrigerators, computer monitors, video/audio devices and so forth.

  • Page 6: Features

    FEATURES • Uses three (3) internal orthogonal sensors to test a wide range of ELF magnetic fields, independent of measurement angle. • The tester is designed to provide a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home appliances and industrial devices.

  • Page 7: Identifying Parts

    IDENTIFYING PARTS...

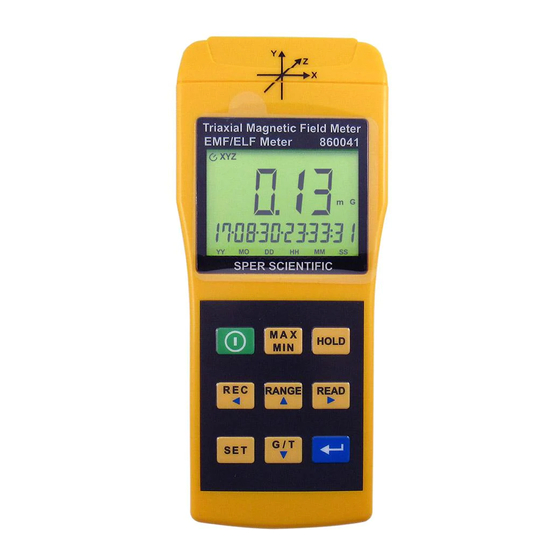

  • Page 8 IDENTIFYING PARTS 1. LCD display 2. Power key 3. Maximum Hold & Minimum Hold key 4. Data Hold key 5. Record Data & Setup function Left key 6. Range & Setup function Up key 7. Reading & Setup function Right key 8.

  • Page 9: Measurement Procedures

    MEASUREMENT PROCEDURES • Press key turn on the meter, press turn key again to OFF the meter. • Press key to select milli-gauss (mG) or micro-tesla (µT) • Position the front of the meter to measure the electromagnetic waves. • Read the measured value. When manual range select mode.
  • Page 10 MEASUREMENT PROCEDURES • To retain the maximum and minimum value, press key and the reading value displayed on the LCD will keep updating to the maximum value. Press again to select minimum value, press and hold down key 2 seconds to exit the maximum and minimum mode.

  • Page 11: Clock Setup

    CLOCK SETUP • This meter clock to introduce 24 hour time. • Press key to clock setting mode (1.SET). • Press key to select option to adjust. • Press key to change the digit. • Press key to store the setup, exit the mode. ...

  • Page 12: Auto Power Off Setup

    AUTO POWER OFF SETUP • Press key again to auto power off time setting mode (2.SET). • Press key to change the auto power off time. • Press key to store the setup, exit the mode.  • This meter the auto power off time default value is 5 minutes, for cancellation auto power off, please set time as 00MM.

  • Page 13: Continuity Datalogging Setup

    CONTINUITY DATALOGGING SETUP • Press key again to continue datalogging interval setting mode (3.SET). • Press key to select option to adjust. • Press key to change the value. • Press key to store the setup, exit the mode. ...

  • Page 14: Clear Datalogger Memory

    CLEAR DATALOGGER MEMORY • Press key again to clear data logger memory for last record setting mode (4.SET). • Press key to clear data logger memory for  last record. • Press key to clear data logger memory for last record and exit the mode.
  • Page 15 CLEAR ALL DATALOGGER MEMORY • Press key again to clear data logger memory for all record setting mode. (5.SET) • Press key to clear data logger memory for all record. • Press key to store the setup, exit the mode. ...

  • Page 16: Single Data Memory

    SINGLE DATA MEMORY • Press key each time to store the display reading and memory location in memory. VIEWING LOGGED READING CONTROL KEY • Press key to view logged readings mode. Press ▲ or ▼ key to scroll through the readings, Press key to exit this mode.

  • Page 17: External Dc Power

    EXTERNAL DC POWER • External AC to DC adapter: Voltage 9 V (8 to14 V Max) • Supply current : >300 mA • Socket : pin Positive, Ground Casing External Diameter 6.3mm internal Diameter 2.0 mm...

  • Page 18: Safety Precautions

    SAFETY PRECAUTION • For cleaning the instrument use a soft dry cloth. Never use a wet cloth, solvents or water, etc. • Operation Altitude: Up to 2000M. • Operating Environment: Indoors use. This instrument has been designed for being used in an environment of pollution degree 2.

  • Page 19: Specifications

    SPECIFICATIONS Display 4 digits Triple LCD display Range 20/200/2000 mG 2/20/200 µT Resolution 0.01/0.1/1 mG or 0.001/0.01/0.1 µT Frequency Response 30 Hz to 2000 Hz Sensor Triple Axis (X, Y, Z) Accuracy 20 mG /2 µT ±(3.0% + 30 dgt) at 50 Hz /60 Hz ±(2.5% + 5 dgt) at 50 Hz /60 Hz.

  • Page 20: Warranty

    WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) year from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
