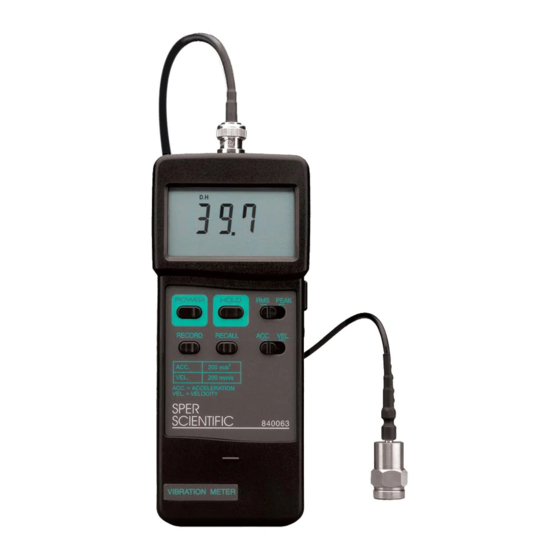

- Page 1 Vibration Meter 840063 Instruction Manual...
-
Page 2: Table Of Contents
Sper Scientific. TABLE OF CONTENTS INTRODUCTION ........3 PANEL DESCRIPTION . -
Page 3: Introduction
INTRODUCTION The level of vibration is a useful guide to the balance, alignment and general condition of pumps, motors, and other machinery. Poor balance, misalignment and looseness results in higher levels of vibration and indicates maintenance is required for operational as well as safety reasons. -
Page 4: Operating Instructions
OPERATING INSTRUCTIONS General Measurement 1. Attached the BNC PLUG to the BNC SOCKET. 2. Attached the MINI PLUG to the INPUT SOCKET. 3. a. Acceleration (ACC) Measurement: Awitch the ACC/VEL SELECTOR to the “ACC” position. b. Velocity (VEL) Measurement: Used for general industrial vibration. Switch the ACC/VEL SELECTOR to the “VEL”... -
Page 5: Data Record
Data Record (Displays the Maximum and Minimum readings.) 1. To start the Data Record function, press the RECORD BUTTON once. The LCD display will indicate “REC.” 2. Press the RECALL BUTTON and the “Max” symbol (along with the maximum value) will appear on the LCD display. 3. -
Page 6: Battery Replacement
BATTERY REPLACEMENT When the top left corner of LCD display indicates “LBT,” it is time to replace the battery. Accurate readings may be taken for several hours after the low battery indicator appears. Open the battery cover, install a fresh 9V battery and replace the cover. CLASSIFICATION RANGES There are 4 different machine groups with 4 classification ranges and limits for ISO 2372 and VDI 2056, machinery. -
Page 7: Iso 2954 Sensitivity Relative Table
ISO 2954 SENSITIVITY RELATIVE TABLE Relative sensitivity Frequency Normal Value Minimum Value Maximum Value 1000 SPECIFICATIONS Range Resolution Accuracy +/- (5% +2d) rdg, Acceleration 0.5 to 199.9 m/s 0.1 m/s 160 Hz, 80 Hz. @ 23 +/- 5ºC Velocity 0.5 to 199.9 mm/s 0.1 mm/s 10 Hzto 1 KHz, sensitivity relative during the Frequency... -
Page 8: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of one (1) year from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
