Testing And Operation - NavTool NAVRGB6.0-VI Installation Instructions Manual

Step 1: Turn on the ignition. A green LED will light up on the interface to confirm it has power.
Step 2: Press the push button once to turn on and display Video 1. Skip this step if only using reverse camera.
(If no video source is connected you will see a "no signal" message)
Step 3: To return to the factory information screen press and hold the push button for 2 seconds
Step 4: To test the aftermarket reverse camera operation, press on the brake and set the vehicle in reverse.
The reverse camera will display. if no camera is connected a "no camera connected" message will appear.
To Turn On parking lines, place vehicle in reverse and hold 12 volts to the white wire until the lines Turn On.
To Turn Off parking lines, place vehicle in reverse and hold 12 volts to the white wire until the lines Turn Off.

Testing and Operation

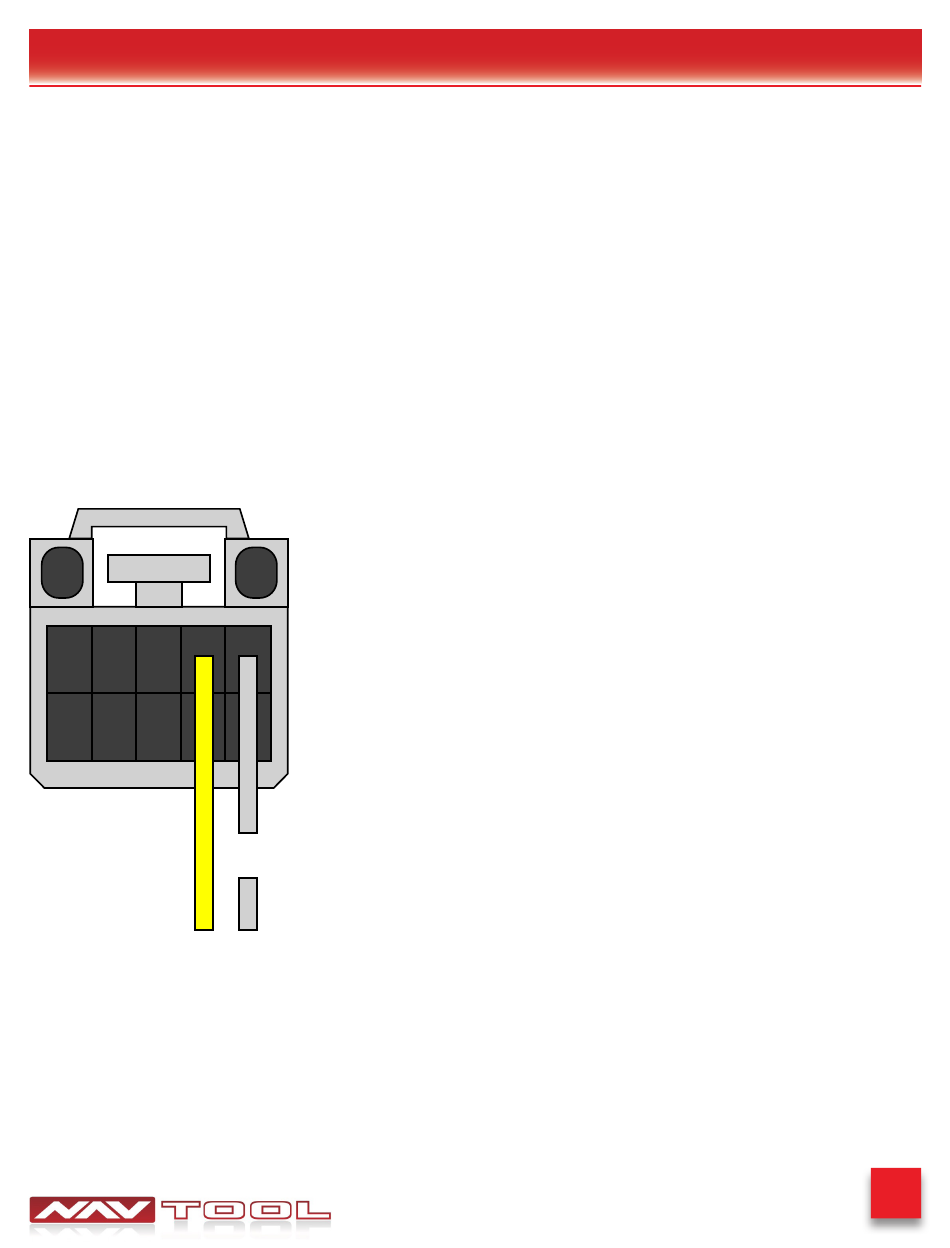

Wire Side View of Supplied Vehicle Specific Harness TL10 (Male End)
If you see the navigation image ghosting on the screen when one of
the video inputs is activated, cut the wire to the right of the yellow wire
on the male end of Supplied Vehicle Specific Harness TL10.
CUT
