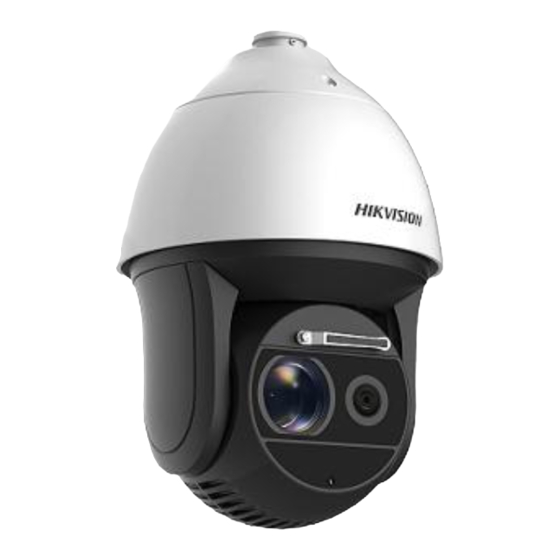

P07Z35LW4T30(36X ZOOM)
Tracking PTZ IP Camera Quick Start Guide
Part 1【P6sLite mobile APP Quick Start Guide】
1, Mobile phone APP (P6sLite) installation and login:

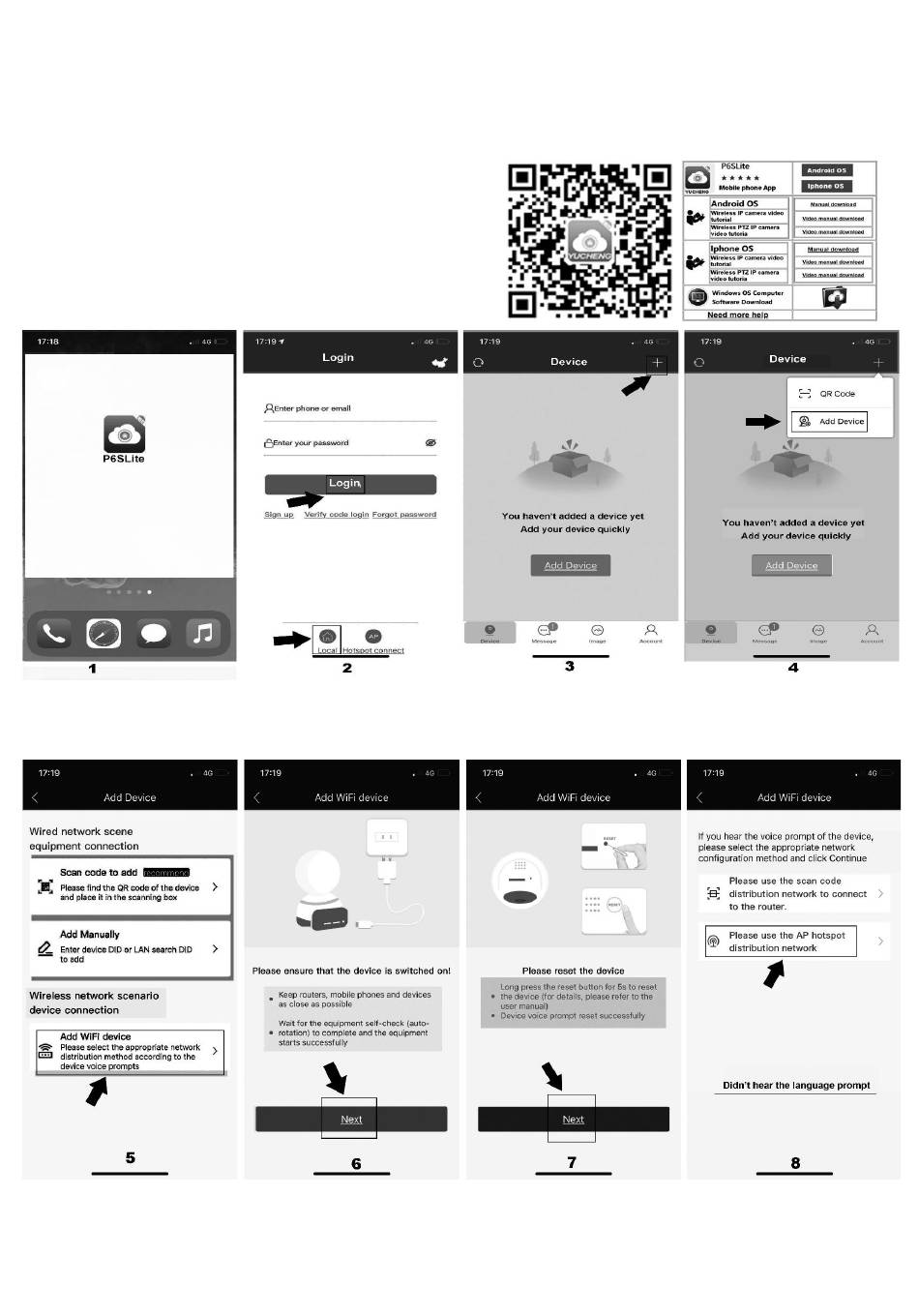

Scan the QR code above to enter the download page
1), select the corresponding download option to download the mobile
phone APP and manual, of course, can also download the PC software,
currently only supports Windows OS software download.
2), download the APP and install it, as shown below:
Use your e-mail to register an account for login. You can also login to the APP system directly use "Local"login
2, Add device
1),AP configuration: the camera only need to connect 12V power (for WIFI wireless camera)
2),Go to APP Home page and click + for add camera. Select "Add device" Connect as shown in Figure 4. According to the prompt until
screen from Figure 5 to 8, select the AP at the beginning of ZWAP in Figure 11. If no WiFi hotspot is displayed, wait for the hotspot to
start. ) Enter the hotspot password 01234567 as shown in Figure 12.Then click"Join"
1
Advertisement
Related Manuals for HIKVISION P07Z35LW4T30
Summary of Contents for HIKVISION P07Z35LW4T30
- Page 1 P07Z35LW4T30(36X ZOOM) Tracking PTZ IP Camera Quick Start Guide Part 1【P6sLite mobile APP Quick Start Guide】 1, Mobile phone APP (P6sLite) installation and login: Scan the QR code above to enter the download page 1), select the corresponding download option to download the mobile phone APP and manual, of course, can also download the PC software, currently only supports Windows OS software download.
- Page 2 3), Click”P6SLite” on the back button APP of the mobile device to show that it is connected as shown in Figure 14.(Note: If the configuration fails in the interface of Figure 9, it will return to the interface of Figure 11; this is the wifi hotspot connection! ! !) 4), If the hotspot connection is successful, it will enter the wifi configuration mode.
- Page 3 3，QR code added(The camera has been wired to your router) 1),Open APP Home page, click the + icon in the upper right corner, select the QR code (you can also click on the sweep) as shown in Figure 2-8. The two-dimensional code recognition will enter the Add Device interface as shown in Figure 21. 2), Add a successful APP will return to the device home page interface, click the home page list to show the connected device.
- Page 4 Complete the operation of 33. Click “I Know”. Added successfully .APP will return to the device's home page. 6, Home page interface, real-time preview and function description 1), home icon uses as shown in Figure 2),The function of the PTZ interface is shown in Figure 36-38.
- Page 5 3）Preview interface Part 2【APP Quick button function introduction】 1,Set and Call preset: Click the “PTZ”on the APP interface, Go the preset position setting keyboard, please select "advanced preset position" and the APP will pop up Numeric keypad button. You can use this numeric keypad to set presets, call presets and turn on some special features.If we need to set the 1 th preset , we need to Click 1 on the keyboard, then click the “Settings”...
- Page 6 1.Commnuication settings ：Default PELCO-D/115200) 2.Control the speed dome up ,down and left right rotation Users can control the speed dome up and down movement by NVR & client soft-ware & mobile app （P2P） & keyboard Joystick’s movement can control the speed dome’s action. when the joystick turn right, the speed dome also turn right. So the speed dome’s movement agree with joystick’s movement.
- Page 7 Part 4【Common functions operating Express 】 Function name Explanation Preset Call Set return position for tracking The camera will return the position when camera tracking end √ Close auto tracking Close auto tracking √ Open Humanoid tracking Only track people √...
