Summary of Contents for DELTA DORE TYXIA 1701

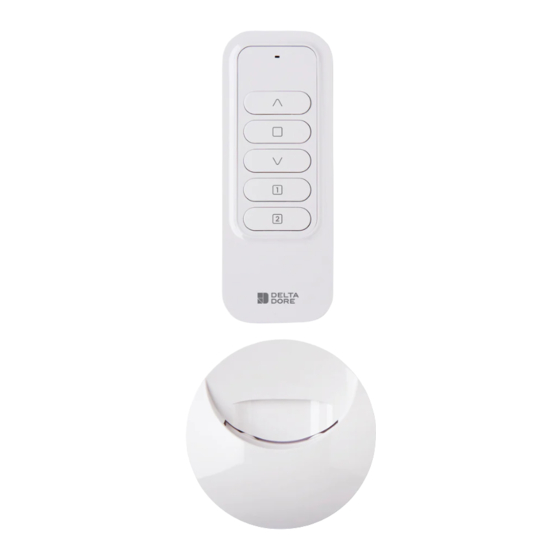

- Page 1 TYXIA 1701 1-channel remote control for roller shutter...
-
Page 2: Table Of Contents
Technical characteristics Contents • Power supplied by 3V lithium battery, CR2430 • Class III insulation 1/ Location/Mounting ..........4 • X3D Transmission frequency: 1.1 Mounted on the wall ........4 868.7 MHz to 869.2 MHz 1.2 Placed on a flat surface ......... 5 • Maximum radio power < 10 mW 2/ Wireless association ........... -
Page 3: 1/ Location/Mounting
1/ Location/Mounting 1.1 Mounted on the wall 1.2 Placed on a flat surface WARNING ! Do not ingest battery, chemical Burn Hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. -
Page 4: 2/ Wireless Association
2/ Wireless association 2.1.2 If several motors are switched on If you own a solar motor, refer to its instructions. ❶ On the remote control, press at the 2.1 Pairing of a motor in same time and hold for 3 seconds, until the red individual control mode LED flashes. Release the buttons. ... -
Page 5: Pairing Of A Tyxia Receiver For A Roller Shutter Motor (E.g. Tyxia 5630 Or 5730)
2/ Wireless association 2.2 Pairing of a Tyxia receiver for a roller shutter 2.3 Pairing of several motors motor (e.g. Tyxia 5630 or 5730) or receivers in group control Important: if you pair several motors with the ❶ Switch on and set the receiver to pairing mode remote control, you will no longer have access to by pressing its button for 3 seconds until its LED the stop settings from this remote control. -
Page 6: 3/ Save The Favourite Positions
3/ Save the favourite positions 4/ Use You can save up to 2 favourite positions from the • Press to raise, and to lower. remote control: Press to stop the shutters. The LED changes from red to green if the receiver has ❶... -
Page 7: 5/ Troubleshooting
5/ Troubleshooting • The red LED flashes several times - Press the buttons at the same time and every time a button is pressed. hold for 3 seconds. The shutters start. The battery is low. Change the battery. - Press button A to exit. •... - Page 8 www.deltadore.com...
