Lorex SG7351 Quick Start Manual

Lorex SG7351 Quick Start Manual

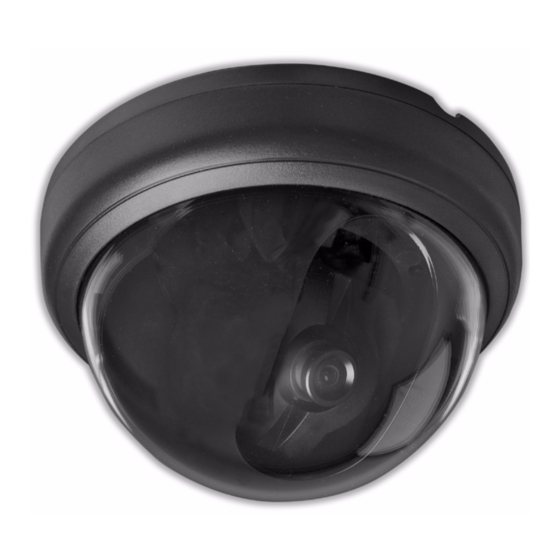

Mini color dome camera

Advertisement

Quick Links

Camera Specifications
Image Sensor
High Resolution 1/4" Sensor
Video Format / Pixels
NTSC: 656(H) x 492 (V)
Horizontal Resolution
450 TVL
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio
> 48dB
Iris & Shutter Speed
AES; 1/60 ~ 1/50,000 sec.
Minimum Illumination
3.0 LUX
Video Output
Comp. 1.0 Vpp @ 75ohm
Lens / Lens Mount
3.6 mm F2.0/ Fixed
FOV (diagonal)
70 Degrees
Termination
Video: BNC Female
Power: Barrel Female
IR / Night Vision Range
N/A
Power Requirement
12V DC
Power Consumption
90 mA max
Operating Temp.
14°F ~ 122°F
(-10°C ~ 50°C)
Weight (with stand)
0.62 lbs / 0.28 kg
Dimensions
4.72" x 4.72" x 2.96"
LxWxH
120 mm x 120 mm x 75 mm
(with dome)
Dimensions:
It's all on the Web!
Product Information
User Manuals
Quick Start Guides
VISIT
www.lorexcctv.com
Lorex Technologies Inc.
Copyright © 2009 Lorex Technologies Inc.
As our products are subject to continuous
improvement, Lorex reserves the right to
modify product design, specifications and
prices, without notice and without incurring
any obligation. E&OE
Specification Sheets
Software Upgrades
Firmware Upgrades
©
Copyright
MINI COLOR
DOME CAMERA
MODEL: SG7351
QUICK START GUIDE
English Version 1.0
www.lorexcctv.com
2009 Lorex Technology Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SG7351 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lorex SG7351

  • Page 1 QUICK START GUIDE English Version 1.0 Lorex Technologies Inc. Copyright © 2009 Lorex Technologies Inc. As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring www.lorexcctv.com...
  • Page 2 Contents Installing the camera Connecting the camera ATTENTION - Test the camera prior to selecting a permanent mounting location by temporarily connecting 1 x Mini Color Dome the cameras to an observation system. Camera To mount the camera: 1. First, select the general direction the camera will be facing.
