3.4

Chart positioning

Please note that the placement of chart type (A), (B), or (C) in the following description is vital and must
not be changed. Otherwise, the automatic detection of the iQ-Analyzer-X will not work. You may also
have to optimize your camera position while positioning your charts.
Setup 1:
Place chart (C) in the center of the back wall. The other charts must be positioned on a straight vertical
and horizontal line through the image center. The vertical placement has to have one chart (A) on the
top using the top wall and one chart (B) at the bottom using the bottom floor wall. The horizontal
placement has to be done similarly: place one chart (B) on the left wall and one chart (A) on the right
wall. Use folding and rotating for each chart so that its border looks straight-lined in the resulting image:

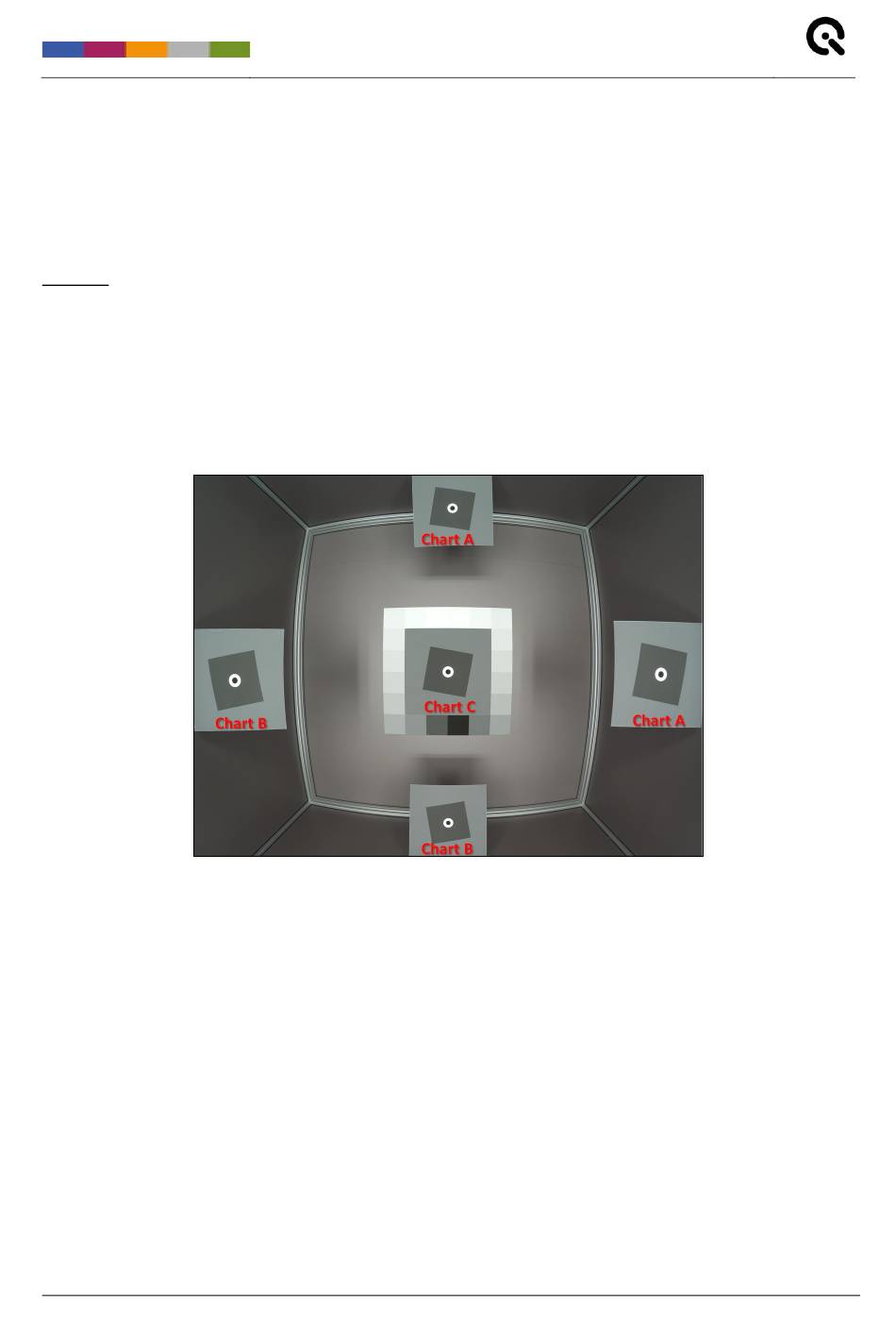

Image 01: Chart positions, Setup 1
