Summary of Contents for Lorex SG7125

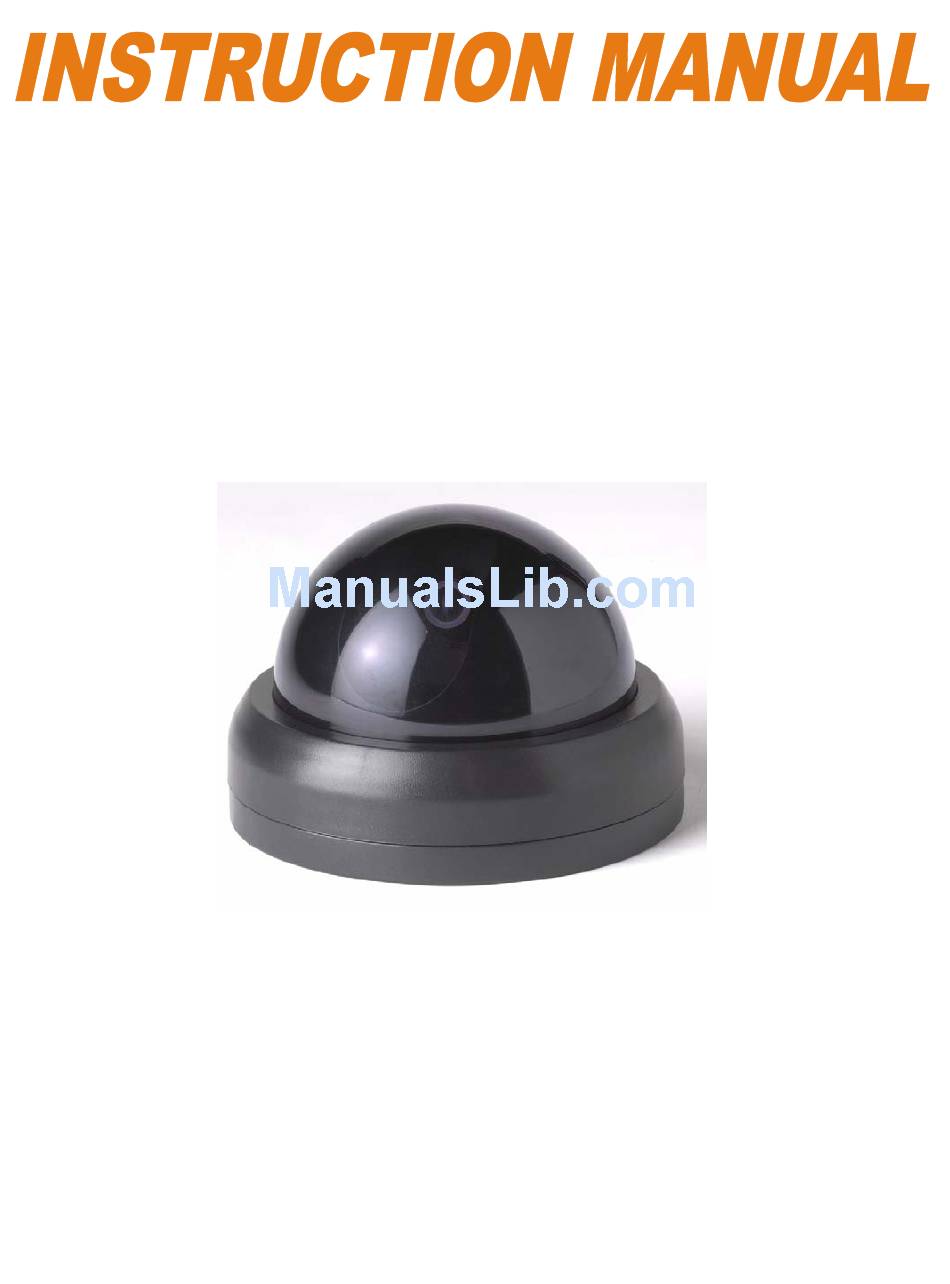

- Page 1 1/4”COLOR CCD DOME CAMERA FOR OBSERVATION SYSTEMS SG7125 FOR MORE INFORMATION WWW.STRATEGICVISTA.COM BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THOROUGHLY AND RETAIN IT FOR FUTURE REFERENCE...
- Page 2 You can easily connect the dome camera to any Color LOREX, Home Sentinel or Sylvania observation system. The camera receives power directly from the monitor. To learn more about this Dome Camera and see the complete range or Lorex products, please visit our website at:...
-
Page 3: Camera Components
CAMERA COMPONENTS: INSTALLATION: Please refer to the camera component installation diagram above. To install the dome camera on a ceiling or wall, follow these procedures: 1. Unscrew the base plate from the dome camera 2. Using the 2 screws and drywall anchors mount the base plate and adapter plate on the wall or ceiling 3. -
Page 4: Technical Specifications
Monitor Camera input OPERATION: Since this camera has a fixed lens, the camera lens must be adjusted manually to the desired position for optimum viewing before installing the plastic bubble housing on the base plate. TECHNICAL SPECIFICATIONS: Image Sensor Effective Pixels Horizontal Resolution Lens Viewing Angle...
