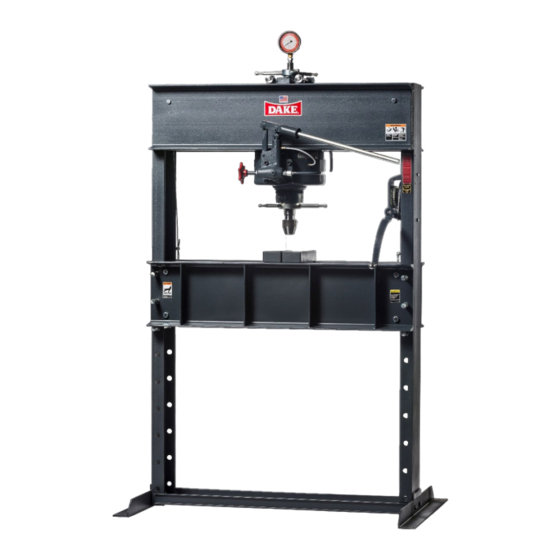

DAKE HAND-OPERATED HYDRAULIC PRESS
Model 150H
INSTRUCTIONAL MANUAL
*Model 75H shown. May be slight differences.
WARNING!
Read and understand all instructions and responsibilities before operating. Failure to follow
safety instructions and labels could result in serious injury.
Dake Corporation
Phone: 800.937.3253
www.dakecorp.com
1809 Industrial Park Dr
Grand Haven, MI 49417
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Laguna Tools DAKE 150H
Summary of Contents for Laguna Tools DAKE 150H
- Page 1 DAKE HAND-OPERATED HYDRAULIC PRESS Model 150H INSTRUCTIONAL MANUAL *Model 75H shown. May be slight differences. WARNING! Read and understand all instructions and responsibilities before operating. Failure to follow safety instructions and labels could result in serious injury. Dake Corporation Phone: 800.937.3253 www.dakecorp.com 1809 Industrial Park Dr Grand Haven, MI 49417...
-
Page 2: Table Of Contents
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE OF CONTENTS DAKE STANDARD LIMITED WARRANTY ............2 RETURN & REFUND POLICY ................4 SAFEGUARDING THE POINT OF OPERATION ........... 5 SPECIFICATIONS ....................6 SAFETY ........................6 SET UP ........................8 FILLING PRESS WITH OIL ................ -
Page 3: Dake Standard Limited Warranty
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com DAKE STANDARD LIMITED WARRANTY Finished Machines Dake warrants to the original purchaser the finished machine manufactured or distributed by it to be free from defects in material and workmanship under normal use and service within 1 year (12 months) from the delivery date to the end user. - Page 4 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com Warranty Exceptions: The following conditions are not applicable to the standard limited warranty: (a) Part installation or machine service was not completed by a certified professional, and is not in accordance with applicable local codes, ordinances and good trade practices.
-
Page 5: Return & Refund Policy
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com RETURN & REFUND POLICY Thank you for purchasing from Dake! If you are not entirely satisfied with your purchase, we are here to help. Returns All Dake manufactured / distributed machines, parts and couplings include a 30-day return option. These policies are valid from the date of final shipment to the end user. -
Page 6: Safeguarding The Point Of Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SAFEGUARDING THE POINT OF OPERATION ANSI B11.2 - Hydraulic Power Presses - Safety Requirements for Construction, Care, and Use It is important that Dake press users have a clear understanding of their responsibility involving the care and use of their Dake hydraulic press, including point-of-operation safe guards. -
Page 7: Specifications
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SPECIFICATIONS Number 907005 Ram travel 8” Capacity 150 tons Screw travel 8” Width between uprights Horizontal workhead travel 48” 27-1/4” Width between table channels 12-1/8 Height 95” ” Min ram to table 5”... - Page 8 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com • This machine is intended to be operated by one person. This person should be conscious of the press ram movement not only for themselves but also for persons in the immediate area of the machine.
-
Page 9: Set Up
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com SET UP For shipping convenience, the gauge, pump handle, hoist crank, screw nose and base angles were removed from the press. Assemble these parts to the press in the following order: 1. -
Page 10: Operation
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OPERATION CONTROLS Hand Crank: (item 62 & 63) on the side of the press is to assist in lowering and raising the table of the press once the table pins are removed. Do not forget to replace the pins once you have the table at the desired height. -
Page 11: Maintenance
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com MAINTENANCE Recommended to replace hydraulic oil every 6 months of machine use. See “FILLING PRESS WITH OIL” section for instructions. LUBRICATION • Keep all working parts of the press well-oiled for easier operation. •... -
Page 12: Other Troubleshooting
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com OTHER TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Oil leaking from 1) Reservoir is over filled.* 1) Drain excess oil. piston oil seal. 2) Piston Packing is worn or 2) Replace Piston Packing. damaged. -
Page 13: Exploded View & Parts List
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com EXPLODED VIEW & PARTS LIST HANDPUMP ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Pump Body Retaining Ring (3/8”) 43972 Ball Valve (Ø1/2”) Pump Plunger Handle Socket Pin Hex Cap Screw 28297... - Page 14 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com WORKHEAD ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Pump Gasket Piston Leather 1538 (Serial No. < 192522) Reservoir 1532 Screw 2024 Packing Ring 37052 Handwheel 701760...
- Page 15 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com GENERAL ASSEMBLY 907005 REV122022...
- Page 16 Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com GENERAL ASSEMBLY PARTS LIST Item Item Part Name Part No. Qty Part Name Part No. Qty Screw Nose – Flat 1560 Tube Assembly (53 & 54) 700203 Screw Nose – V-ram 1575 Handle 2022...
-
Page 17: Ordering Information
Dake Corporation 1809 Industrial Park Dr Grand Haven, MI 49417 www.dakecorp.com TABLE HOIST ASSEMBLY Item Item Part Name Part No. Qty Part Name Part No. Qty Hex Nut (1/2”-13) Hand Crank Assembly 701653 43916 Not Shown Worm Shaft Drum Shaft Retaining Ring 43983 Drum Key...
