- Page 1 Motic Swiftline M30TZ-SM99CL Microscope Use and Care Manual...

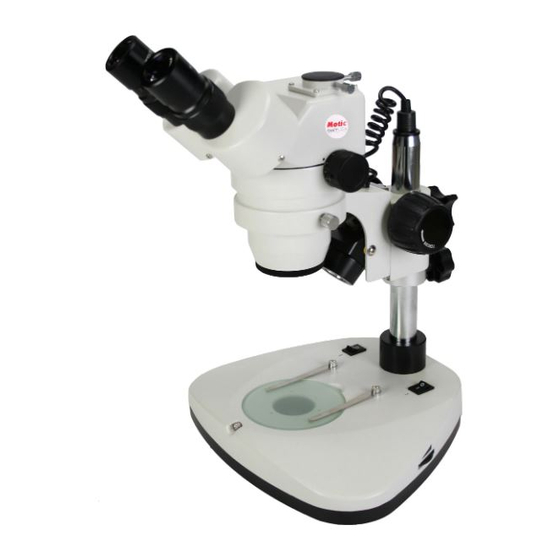

- Page 2 M30TZ-SM99CL The Swift M30TZ zoom stereo microscope is ideal for laboratory, industrial and educational use. The M30TZ is designed to produce a crisp image (erect) with a generous field of view and an excellent depth of focus. It features zoom objectives with continuous magnification ranges from 7.5x-45x which is not possible with a fixed power stereo microscope.
-
Page 3: Operation
Stereoscopic microscopes are designed for viewing 3-dimensional objects, inspection, or assembly of small parts, and for dissection of biological specimen at low magnification. The 45° inclined viewing head provides an upright, unreversed image which permits easy manipulation of object being viewed while looking through the microscope. - Page 4 1. ILLUMINATION A. The microscope is furnished with two stage plates. The frosted glass plate is used when viewing transparent specimen slides or for viewing some specimen thin enough through which light can pass (insect wings, etc.) The plastic black/white contrast plate can be used when viewing opaque objects or for dissecting.
-
Page 5: Maintenance
F. Adjust zoom control to the highest magnification by aligning the number “4” on knob to the black index dot on head. G. While looking through right eyepiece with one eye, rotate focusing control knob until specimen comes into sharp focus through right eyepiece. H. - Page 6 Return the focus block to Motic Swiftline National for replacement of the LED bulb.
- Page 7 Tablet / Camera Assembly C-Mount (supplied with microscope) C-Mount locking screw...
- Page 8 SWIFT OPTICAL INSTRUMENTS, INC. LIMITED LIFETIME WARRANTY Please see our website, www.swiftoptical.com, for complete warranty details and exclusions. Swift Optical Instruments, Inc.● (877) 967-9438 ● www.swiftoptical.com...
