UVP ColonyDoc-It Instruction Manual page 25

ColonyDoc-It Imaging Station 25

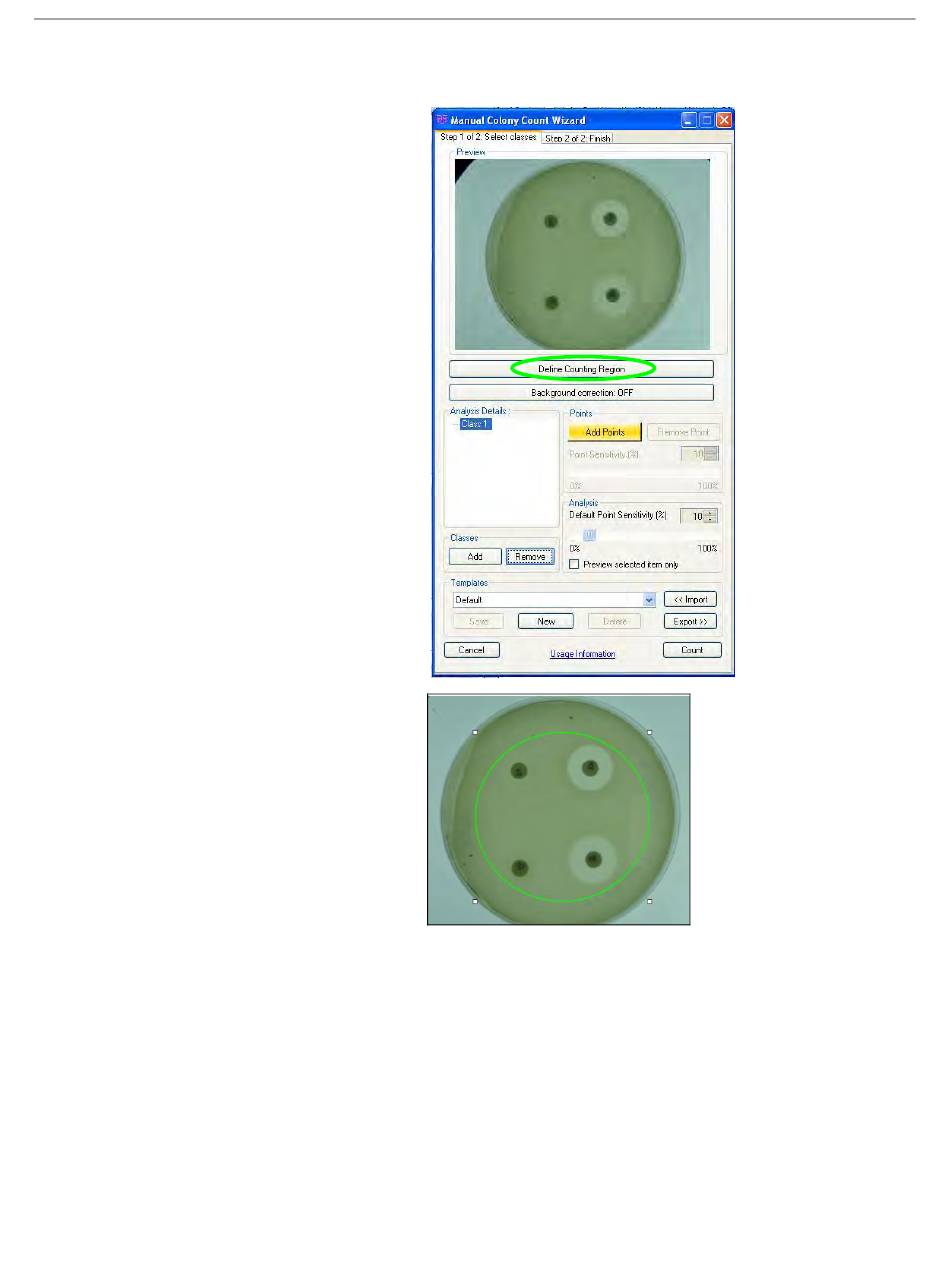

Step 1: Select classes
The window that appears after choosing
Manual Count is the Manual Count
Colony Wizard. It contains two tabs.
The first tab is Step 1 of 2: Select classes,
the second tab is Step 2 of 2: Finish.
The first tab allows the user to define the
region of interest inside the Petri dish to be
analyzed. The region of interest is
identified by a green circle that should
include all the zones of interest in the Petri
dish. The software automatically defines
the region of interest but by clicking the
Define Counting Region button the user
can increase or decrease the circle size as
needed.
If a smaller or larger region of interest is
desired, click onto the Define Counting
Region button and hold and drag the
pointer over one of the corners of the circle
to change the size.
