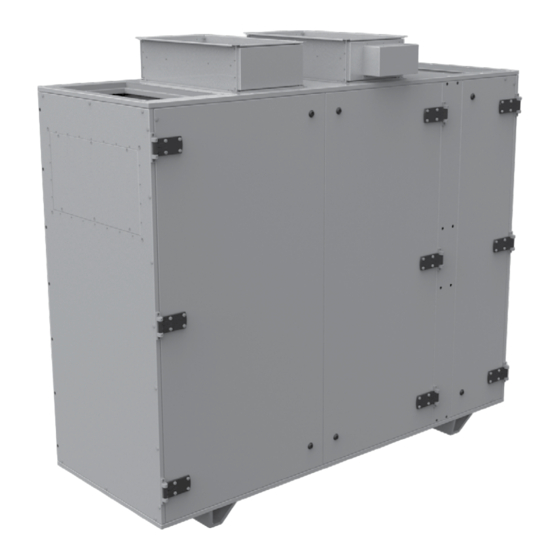

BLAUBERG BlauAir CFV Series User Manual

BLAUBERG BlauAir CFV Series User Manual

Heat recovery air handling unit

Advertisement

Quick Links

Heat recovery air Handling unit
BlauAir CFV
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlauAir CFV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLAUBERG BlauAir CFV Series

  • Page 1 Heat recovery air Handling unit BlauAir CFV USER’S MANUAL...
  • Page 2: Table Of Contents

    Blauair cFv www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating logic ............................6 Installation and set-up................................8 Connection to power mains ..............................11 Technical maintenance ................................
  • Page 3 Blauair cFv www.blaubergventilatoren.de Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials. Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
  • Page 4: Purpose

    Blauair cFv www.blaubergventilatoren.de PURPOSE The air handling unit with heat recovery is designed for integration into central mechanical ventilation systems. The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).
  • Page 5: Technical Data

    Blauair cFv www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor or sheltered use. The installation conditions must prevent ingress of atmospheric precipitations and direct solar radiation at the ambient temperatures from -35 °C up to +50 °C. Outdoor unsheltered mounting is allowed provided an extra cover and weather hoods are installed on the air ducts (not included in the delivery set).
  • Page 6: Unit Design And Operating Logic

    Blauair cFv www.blaubergventilatoren.de UNIT DESIGN AND OPERATING LOGIC UNIT DESIGN 1: drain pipe 2: water heater (only for the units with water heater) 3: electric heater (only for the units with electric heater) 4: supply fan 5: supply filter 6: extract fan 7: heat exchanger 8: extract fan 9: air flow control damper with electric actuator...
  • Page 7 Blauair cFv www.blaubergventilatoren.de The unit design provides change of the air duct positioning. For this purpose the side walls are plugged. To change positioning of the air ducts use the plugs from the side walls for the front panel. Intake air Exhaust air Extract air Supply air...
  • Page 8: Installation And Set-Up

    Blauair cFv www.blaubergventilatoren.de INSTALLATION AND SET-UP ALL OPERATIONS DESCRIBED IN THIS USER’S MANUAL MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY, PROPERLY TRAINED AND QUALIFIED TO INSTALL AND MAINTAIN VENTILATION EQUIPMENT. DO NOT ATTEMPT TO INSTALL THE PRODUCT YOURSELF. IT IS UNSAFE AND IMPOSSIBLE WITHOUT SPECIAL KNOWLEDGE. The units are available in left- and right-sided modifications with the right or left service side.
  • Page 9 Blauair cFv www.blaubergventilatoren.de The delivery set includes removable levelling feet to adjust horizontal levelling of the unit and provide required clearance from the floor to enable correct mounting of the condensed water drainage. Condensate drainage The unit is equipped with drain pipes to remove condensed water outside of the unit. U-traps must be connected to the drain pipes. Dimensions of the U-trap must be selected based on air pressure in the section and are stated in the table.
  • Page 10 Blauair cFv www.blaubergventilatoren.de Connection of the water heater (only for the models with water heater) While connecting the water heater keep the straight air duct section length not less than 400 mm from the unit. Otherwise the maintenance panel cannot be opened!
  • Page 11: Connection To Power Mains

    Blauair cFv www.blaubergventilatoren.de CONNECTION TO POWER MAINS Connection to power mains must be conducted in compliance with the automation user’s manual. TECHNICAL MAINTENANCE OPEN THE UNIT FOR INSPECTION AND SERVICE NOT LESS THAN 2 MINUTES AFTER COMPLETE DE-ENERGIZING OF THE UNIT. THE FANS ROTATION MAY BE STILL PRESENT.
  • Page 12 Blauair cFv www.blaubergventilatoren.de To access the heat exchanger remove the holder 13 (see page 7). Loosen the screws (1) on the retaining clamps (2) using a hexagon wrench. Pull the heat exchanger out.
  • Page 13: Storage And Transportation Regulations

    Blauair cFv www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range +5...+40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation.
  • Page 14: Manufacturer's Warranty

    Blauair cFv www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 15: Certificate Of Acceptance

    Blauair cFv www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Heat recovery air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 16 www.blaubergventilatoren.de B192-5EN-02...

This manual is also suitable for:

Blauair bl02 cfv 1500Blauair bl02 cfv 2500Blauair bl03 cfv 3500Blauair bl07 cfv 5000Blauair bl07 cfv 6000
