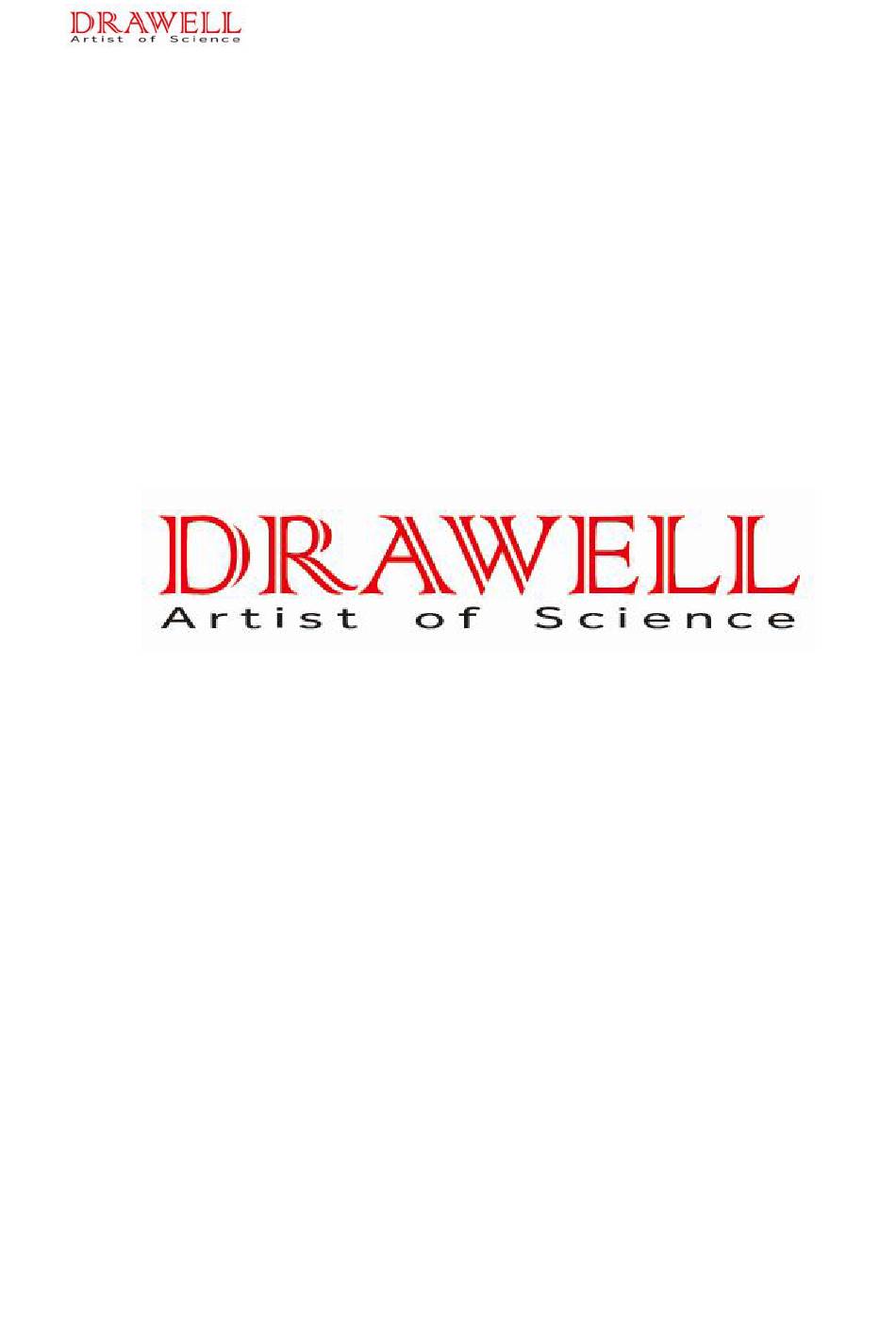

K960 GRADIENT
THERMAL CYCLER
OPERATING MANUAL
Drawell International Technology Limited
Chongqing Drawell Instrument CO,.Ltd
Add:Suite 2705,Building No.12,Shiyou Road No.1,Yuzhong District,
Chongqing,China
Tel: 0086-023-63268643
Shanghai Drawell Scientific Instrument Co.,Ltd
Add : Suite 1117,Lane561 XiuChuan Rd.,PuDong New
Area,Shanghai,China
Web : www.drawell.com.cn
Email : sales05@drawell.com.cn
www.drawell.com.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K960-A and is the answer not in the manual?

Questions and answers

Related Manuals for Drawell K960-A

Summary of Contents for Drawell K960-A

  • Page 1 THERMAL CYCLER OPERATING MANUAL Drawell International Technology Limited Chongqing Drawell Instrument CO,.Ltd Add:Suite 2705,Building No.12,Shiyou Road No.1,Yuzhong District, Chongqing,China Tel: 0086-023-63268643 Shanghai Drawell Scientific Instrument Co.,Ltd Add : Suite 1117,Lane561 XiuChuan Rd.,PuDong New Area,Shanghai,China Web : www.drawell.com.cn Email : sales05@drawell.com.cn www.drawell.com.cn...

  • Page 2: Table Of Contents

    4.1 Failure code and corresponding phenomenon..............21 4.2 Common failure analysis and corresponding solving method..........21 4.2.1 Bad experiment results....................21 4.2.2 Failure reason analysis and corresponding solving method.......... 22 Instrument Warranty..............23 Warranty content......................23 Warranty reference......................23 Question and Answering............... 24 www.drawell.com.cn...

  • Page 3: Important Note

    1.2 Security Warning: Please carefully read the manual before operating the instrument, otherwise the improper operations may cause damage to the instrument or harm your personal safety www.drawell.com.cn...

  • Page 4: Safe Operation

    Significant changes in the device’s performance, such as can’t power ● on or operate normally. Note : For your safety and the normal operating of the instrument, don’t open the instrument. Otherwise your safety is not guaranteed and you will lost the right to warranty. www.drawell.com.cn...

  • Page 5: Instrument Introduction

    Thanks to the application of the semi-conductor, an optimal, constant increasing and decreasing temperature can be assured, which means the gradient experiment results can be used easily and precisely in common application, decreasing the intensity of the exploring experiment and increase the quality and efficiency of the experiment. www.drawell.com.cn...

  • Page 6: Features

    Particularly to some experiment with precise temperature and uncertainty, the operator can adjust the temperature flexibly, make sure to achieve the efficient experiment. www.drawell.com.cn...

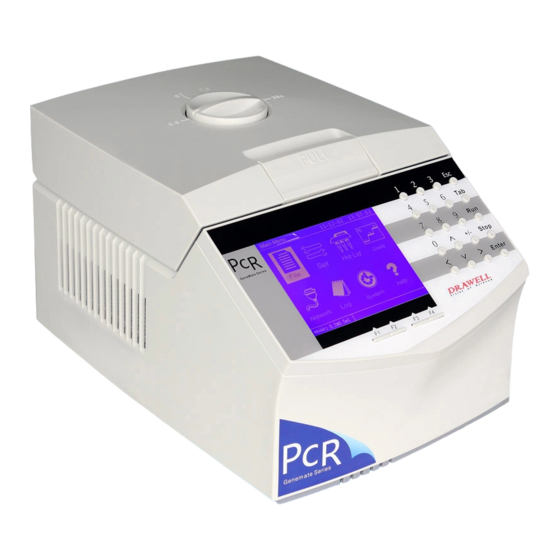

  • Page 7: Structure Intro

    6 button panel 7 display 8 button 9 switch power supply socket 11 Fuse socket 12 network interface 13 USB interface 14 232 interface 15 shell 16 air out hole 17 LOGO 18 heat lid spanner 19 grade knob 20 grade calibration www.drawell.com.cn...
  • Page 8 Note : The angle between the upper cover and the shell range from 0 to 90, please don’t push it more than the upper limit 90 so as not to break the instrument. www.drawell.com.cn...
  • Page 9 0.2(flat). We use a rational and practical design, slam the door of traditional idea of changing heat lid or even change the instrument. Note : The calibration knob circles clockwise, namely from 0.5 to 384. Please don’t circle it anti-clockwise so as not to break it. www.drawell.com.cn...
  • Page 10 Figure 2 shows the state of installment. When operator has chosen the suitable block, he only needs to hold the holder, put the block into the crust, and put down the holder. The alnico will attract the block and the holder will self-lock it to the shell. www.drawell.com.cn...
  • Page 11 Replacement steps of module components Take Pull up the the block handle Select the module you need and put it into the shell www.drawell.com.cn...
  • Page 12 Note : All the wirings in the instrument is connected using the plug，please lightly take out or install the block. You can shake the block softly but never strongly so as not to break the instrument. www.drawell.com.cn...

  • Page 13: Button Intro

    Cancel button, used to escape from submenus, clear the dialog box and cancel the input. Stop button, when the file is running, press this button if you want to Stop eliminate the running. Affirm button, used to affirm various contents in dialog box, selection Enter option and information input. www.drawell.com.cn...

  • Page 14: Instrument Working Condition And Performence Indicators

    Otherwise there may be damage to the instrument and harm the operator’s safety and life. 2.2.5.3 instrument performance indicator Model: K960-A；K960-B；K960-C；K960-D Sample size: 96*0.2mL(A);54*0.5mL(B);96*0.2mL+77*0.5mL(C);384well(D) Temperature range: 0℃—99.9℃（Rt≤30℃） Temperature ascending speed: ≥3℃/s Temperature descending speed: ≥2.8℃/s...

  • Page 15: Menu Operation

    ENTER to affirm. System will get into the “segment &step”. Note :Gradient of Block D(384well) is disabled.Display "Gradient of Block D(384well) is disabled"in the extended function section instead of option "Grads" while using Block D. www.drawell.com.cn...
  • Page 16 ENTERr to input. Press the number buttons can directly input the numbers into the display section. You can press ESC to cancel you wrong input, and then re-input. Press F4 to save after setting. www.drawell.com.cn...

  • Page 17: Edit

    ESC to cancel. 3.2 parameter setting 3.2.1 running parameter setting 3.2.1.1 move the cursor ( or press number 2) in the “main menu window” to select the “setting” submenu, press ENTER to enter the “parameter setting” window. www.drawell.com.cn...

  • Page 18: Parameter Setting

    ENTER to affirm and ESC otherwise. 3.2.2 Heat lid setting 3.2.2.1 Move the cursor (or press number 3) in the “main menu window” to select the “heat lid” submenu, press ENTER to enter the “heat lid function setting” window. www.drawell.com.cn...

  • Page 19: System Setting

    200, all the files’ information will be displayed in this window. If the number of files is above 200, the most recently created 200 files’ information will be displayed. These information include the file names, run time, and create date, etc. www.drawell.com.cn...

  • Page 20: Gradient Inquiry

    Operator can view the temperature of 12 corresponding block rows. 3.3.2.3 In the "cycle parameter"window(building or editing a program),Press "Tab" to turn to"Temperature Gradient Distribution"window while the cursor stay at the stage which has been set grads.Press "ESC"to exit. www.drawell.com.cn...

  • Page 21: Help Information

    3.4.1 when the operator enters value out of the permitted scale, the system will value it with default value and the input value will not be adopted. 3.4.2 the communication submenu in the main menu window is obligated for update, and is not valid in this version. www.drawell.com.cn...

  • Page 22: Common Failure Analysis

    H. Check the recation tube have been placed correctly，overlaid the reaction with mineral oil to enhance heat exchange. I. After a long time usage, the temperature may loss accuracy, and this could be adjusted by the producer, customers should never do it by themselves. www.drawell.com.cn...

  • Page 23: Failure Reason Analysis And Corresponding Solving Method

    Contact distributor or Lid sensor failure Lid cannot be heated manufacture Bad contact between connectors Bad contact between chip Abnormal characters Contact distributor or and its socked displayed manufacture Chip malfunctioning Contact distributor or Inactive keys Film panel malfunctioning manufacture www.drawell.com.cn...

  • Page 24: Instrument Warranty

    5.2.2 The above warranty is not applicable to defective devices with incorrect use, abnormal operating conditions, improper application, and unauthorized maintenance or alteration. www.drawell.com.cn...

  • Page 25: Question And Answering

    For example, the starting temperature is 55℃. If the temperature ascend (descend) 1℃, then the temperature in the second circle is 56℃(54℃ for descending). And in the third circle the temperature will be 57℃for the ascending and 53℃ for the descending. www.drawell.com.cn...
  • Page 26 The right operation is: Start the machine then enter the menu,click the “set” and enter the “parameter setting” interface. After select “enable” you can set the temperature of low temperature store in this interface. www.drawell.com.cn...
  • Page 27 But for some particular or nonstandard test tube, we have to turn the button to the extent that we feel some resistance. (Note: to force the button roll may cause damage to the test tube and speed up the aging of the instrument.) www.drawell.com.cn...
