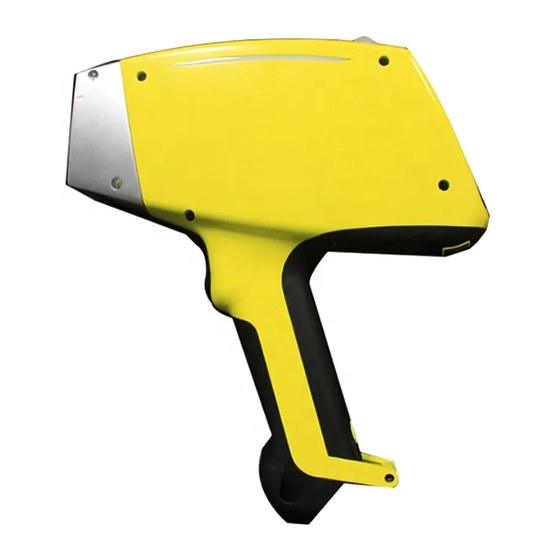

Drawell TrueX XRF User Manual

Handheld analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Please read operating manual before installation and operation.
Drawell International Technology Limited
Shanghai Drawell Scientific Instrument Co.,Ltd
Add : Suite 1101,Lane561 XiuChuan Rd., Greeland Max-Mall,PuDong,Shanghai,China
Tel: 0086 21 50966080
Fax: 0086 21 50966080
Web : www.drawell.com.cn
Email : sales01@drawell.com.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TrueX XRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drawell TrueX XRF

Summary of Contents for Drawell TrueX XRF

  • Page 1 User Manual Please read operating manual before installation and operation. Drawell International Technology Limited Shanghai Drawell Scientific Instrument Co.,Ltd Add : Suite 1101,Lane561 XiuChuan Rd., Greeland Max-Mall,PuDong,Shanghai,China Tel: 0086 21 50966080 Fax: 0086 21 50966080 Web : www.drawell.com.cn Email : sales01@drawell.com.cn...
  • Page 2 TrueX handheld analyzer TrueX handheld analyzer operation guide operation guide Version：1.0...

  • Page 3: Preamble

    Thank you for purchasing TrueX X-ray Fluorescence Spectrometer. This is an Energy Dispersive X-ray Fluorescence Spectrometer. By using TrueX XRF，you can perform a fast, accurate and non-destructive qualitative and quantitative analysis of the elements from (12Mg) to (92U) in solid, powder and liquid samples.

  • Page 4: Guarantee

    Guarantee Thank you for purchasing TrueX X-ray Fluorescence Spectrometer. Drawell offers the following guarantee to the equipment you have purchased from us. 1. Warranty time All parts are warranted for 12 months after the date the customer received the apparatus.
  • Page 5 vibration. 5） Fire, earthquake or other natural disasters. 6） Severe damage due to vibration or drop after installation. 7） Consumables or the equivalents of consumable parts.

  • Page 6: Letter To The User

    Letter to the User （1）The copyright of this manual is reserved by Drawell. Therefore, in the absence of Drawell 's permission, any part of this manual shall not be reproduced or copied. （2）The contents of this manual are subject to change without prior notification.

  • Page 7: Preventive Measures For X-Ray Generator

    2. Do not use this instrument in a harmful environment. 3. Without the permission of Drawell engineers, do not remove the case of the apparatus. Do not remove it. If you disregard the instructions in this manual and remove it, Drawell takes no responsibility in guaranteeing the safety and reliable performance of the equipment.
  • Page 8 4. Keep the surface of the instrument clean. 5. If you use this instrument very frequently (more than 50 samples a day on average), you need to make a thorough check of the instrument once every 2-3 years. If you need more detailed information, please contact Drawell.

  • Page 9: Table Of Contents

    CONTENTS Preamble......................Guarantee......................Letter to the user....................Important......................Preventive measures for X-ray generator............Precautions in use.................... ······················································· Chapter 1 Introduction 1.1 Description of TrueX system ....................-1 - 1.1.1 What Is TrueX? ......................-1 - 1.1.2 What Does TrueX Do? ....................-1 - 1.2 Inspection ..........................
  • Page 10 4.1.1 Time ...........................- 19 - 4.1.2 Distance ........................- 19 - 4.1.3 Shielding ........................- 20 - 4.2 Exposure to Radiation ....................... - 20 - 4.3 Monitoring your radiation exposure ................- 20 - 4.4 Pregnancy and Radiation Exposure .................- 21 - 4.5 How to Use the Beethor X3G Series Analyzer Safely .............

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Description of TrueX system 1.1.1 What Is TrueX? The TrueX is a handheld enregy dispersive X-Ray fluorescence spectrometer, generally referred to as an XRF analyzer. A complete TrueX package consists of: Handheld analyzer using an integrated group of instrument components that are sealed in an ergonomically designed, light-weight body.

  • Page 12: Tour Of The Truex Package

    Verify that no visible damage occurred during shipping. WARNING If there is damage to any of the components,DO NOT attempt to use the instrument.Immediately contact Drawell Customer Support :+86 0512 69376270 Or call your local distributor. 1.3 Tour of the TrueX Package 1.

  • Page 13: Tour Of Instrument

    1.4 Tour of Instrument 1.4.1 Handheld XRF Analyzer 1. Measurement Window 2. Detector 3. Heat Sink - 3 -...

  • Page 14: Battery Charging Station

    4. Flash LED 5. I/O(Power)Switch 6. DoubleBeam Window 7. Probe 8. Trigger 9. Handle-Non-Slip Rubber Cover 10. Battery Boot 11. USB data interface 12. Stand Control Interface 13. Adapter Interface 14. Touchscreen for User Interface 1.4.2 Battery charging station 1. Charging station working indicator light 2.

  • Page 15: Accessories-List The Standard And Optional Accessories

    chart : Battery charging interface 1.4.3 Accessories-List the Standard and Optional Accessories Standard Optional ◆ batteries ◆ stand ◆ TrueX Docking Station ◆ USB Cable ◆ Cal Check Coupon 1.4.4 STANDARD Accessories ◆ Batteries Each TrueX contains two lithium batteries, This is the standard configuration, The other end of the battery charging electrode is provided with a miniature display, which can directly display the battery power.
  • Page 16 ◆ Universal adapter This adapter is a universal adapter, which can be used for direct charging of the instrument, and can also be charged through the charging station. The input voltage of the adapter is 100-240VAC and the output voltage is 9V. ◆...
  • Page 17 ◆ Cal Check Coupon Standard calibration blocks provide a test standard for testing: Before the instrument work, test the standard block, using the standard data and test data to do the comparison, in order to determine whether the instrument is in the best condition. - 7 -...

  • Page 18: Optional Accessories

    1.5 OPTIONAL Accessories ◆ TrueX test stand The TrueX portable X fluorescence spectrometer is installed on the test stand, which can meet the testing work of the instrument in the laboratory. - 8 -...

  • Page 19: Chapter 2 Applications

    Applications Chapter 2 2.1 TrueX Analyzers preview TrueX analyzer is a high-performance, high accuracy and easy-to-carry portable X-ray Fluorescence Spectrometer. 2.2 Instrument started Prepare your TrueX Analyzers. Press the power switch for 3 seconds. Then the instrument is turned on and the power light becomes green. 2.2.1 Basic Operations Load cell, light press switch for 3 seconds >>...
  • Page 20 Figure. virtual digital keyboard Figure. the test menu SNAPSHOT of TrueX’s User Interface The TrueX’s user interface is introduced by the startup Radiation Safety and Initialization screens. Main operations then revolve around the Home screen. Mode select setup settings - 10 -...

  • Page 21: Analyze

    2.3 Analyze Test option is the main channel for TrueX analyze, Select the analyze into the analysis interface. Test interface, the default selection the last analysis mode The sample cover the front window when analyzing, Maintain proper posture, Click the Test button or pull the trigger to start the test. Hold the trigger starts the test, Release the trigger end of the test.

  • Page 22: User Factor Instructions

    Match：Indicates that the sample comply with the degree of matching standard grades. This value is smaller the better match. In general: 0-2 indicates exact match, 2-4 indicates a good match, Greater than 4 indicates not match. Element content: the content of the test results showed that the main component elements。...

  • Page 23: Process For Establishing Correction Factors

    analysis will affect other elements test. Besides, some elements oxide will cause othe r elements test deviation. Under many condition, this deviation is very small, even the results without calibration are accurate enough, especially for the tests purely for obs erving which elements included.
  • Page 24 Fig 1. The correction factor linear regression diagram The slope and intercept should be calculated by linear regression. Y=mx+b， Formula m is the slope, b is the intercept. Then m and b directly enter a new model. The correction factor can be use EXCEL to calculate the linear regression。y value represents laboratory data, x value represents TrueX results.
  • Page 25 Fig 6 Fig 7 According to the formula in Fig. 7, y = 1.003x + 0.265，a correction coefficient can be obtained . 1.003 is the slope, 0.265 is the intercept. Add the slope and intercept values to "turkey mining" model elements Cu, Fig 8. Fig 8 Note1: You can not add intercept negative number.

  • Page 26: Chapter 3 Maintenance Guide

    Please use cotton or soft cloth to clean the test window and the instrument surface. Washing medicine is forbidden. Don’t put the instrument into the water. If the test window has any abrasion, damage or pollution, contact Drawell service center for further advice.

  • Page 27: Change Test Window Membrane

    Don’t try to repair the instrument by yourself. Drawell won’t be responsible for any damage caused by your own repair and the warranty time prescribed on the contract will be invalid at that time.

  • Page 28: Chapter 4 Radiation And General Safety

    Radiation and General Safety Chapter 4 This chapter covers topics related to radiation safety and general safety when using a TrueX analyzer. All operators of the TrueX should be familiar with the instructions provided in this chapter in order to handle the TrueX in a safe manner. In - 18 -...

  • Page 29: Radiation Protection Basics

    Drawell recommends that instrument users participate in a radiation safety and operational training class offered by Drawell. WARNING: treat radiation with respect. Do not hold your analyzer near the window during testing. Never point your analyzer at yourself or anyone else when the shutter is open.

  • Page 30: Exposure To Radiation

    4.2 Exposure to Radiation Exposure to Radiation Human dose to radiation is typically measured in rem, or in one-thousandths of a rem, called millirem (mrem), 1 rem = 1000 mrem. Another unit of dose is the Sievert (Sv), 1 Sv = 100 rem. The allowable limit for occupational exposure in the U.S (and many countries internationally) is 5,000 mrem/year (50 mSv/year) for deep (penetrating) dose and 50,000 mrem/year (500 mSv/year) for shallow (i.e., skin) dose or dose to extremities.

  • Page 31: Know Where The Beam Is

    resource CD. * The International Commission on Radiological Protection, ICRP, is an independent Registered Charity, established to advance for the public benefit the science of radiological protection, in particular by providing recommendations and guidance on all aspects of protection against ionizing radiation. * The National Council on Radiation Protection and Measurements (NCRP) was chartered by the U.S.

  • Page 32: Take Proper Care Of Your Truex Analyzer

    4.5.5 Take Proper Care of your TrueX Analyzer Keeping your analyzer maintained in good condition will help minimize the risk of accidental exposure. Mechanical malfunction of the shutter can be avoided by maintaining the Kapton window, as described in the User Guide. This prevents foreign objects from entering your Beethor X3G Series.

  • Page 33: Lost Or Stolen Instrument

    5. Notify your Radiation Safety Officer (RSO) or the equivalent responsible individual at your company or institution immediately. 6. You or your RSO should call Drawell at one of their contact numbers listed below for additional instructions and guidance. Major damage If the instrument is severely damaged: 1.

  • Page 34: Chapter 5 Sample Preparation

    Sample preparation Chapter 5 5.1 Analysis of Prepared Samples Analysis of bagged bulk samples Sometimes it is convenient to measure samples in plastic bags. Without further preparation of the sample, you can screen the site by testing each bag. Because you are testing through a bag, test results will tend to be lower than test results obtained from direct analysis.

  • Page 35: Cleaning Your Equipment

    several different sized metal sieves, cups to hold the samples. CAUTION: All test equipment must be kept clean to prevent contamination of samples. 5.2 Cleaning Your Equipment 5.2.1 Sample Preparation Prior to analysis, the material should be dry and well homogenized. Ideally, the entire sample should be dried to constant weight, sifted to remove gravel and debris, and ground or milled to a fine powder.

  • Page 36: Placing The Sample In An Xrf Sample Cup

    Note: The sample container should be a sample cup of a type that can be filled from the rear; that is, the side opposite the window. Drawell recommends using a 1/4 mil (6.3mm) Polypropelene film. A supply of cups and films are included.
  • Page 37 Fill the rest of the cup with polyester fiber stuffing to prevent sample movement. Use aquarium filter or pillow filling as stuffing. A small supply of stuffing comes with your bulk sample kit. Cap the cup. Place a label on the cup. Use a pen with indelible ink and write identifying information on the cup.

  • Page 38: Appendix

    Appendix X-ray Emission Energies Arranged Alphabetically by Element Symbol Atomic Atomic Kα Kβ Lα Lβ Lγ Number Weight 26.99 1.49 28.09 1.74 1.84 30.97 2.02 2.14 32.06 2.31 2.47 35.45 2.62 2.82 39.94 2.96 3.19 39.1 3.31 3.59 40.08 3.69 4.01 0.34 0.34...
  • Page 39 118.6 25.19 28.60 3.44 3.67 4.13 3.04 121.7 26.27 29.85 3.61 3.84 4.35 3.19 127.6 27.38 31.13 3.77 4.03 4.57 3.34 126.9 28.51 32.44 3.94 4.22 4.80 3.48 131.3 29.67 33.78 4.11 4.42 5.04 3.64 137.3 30.85 35.15 4.29 4.62 5.28 3.79 137.3...
  • Page 40 Drawell International Technology Limited Shanghai Drawell Scientific Instrument Co.,Ltd Add : Suite 1101,Lane561 XiuChuan Rd., Greeland Max-Mall,PuDong,Shanghai,China Tel: 0086 21 50966080 Fax: 0086 21 50966080 Web : www.drawell.com.cn Email : sales01@drawell.com.cn...
