MANUAL

COM/PAD

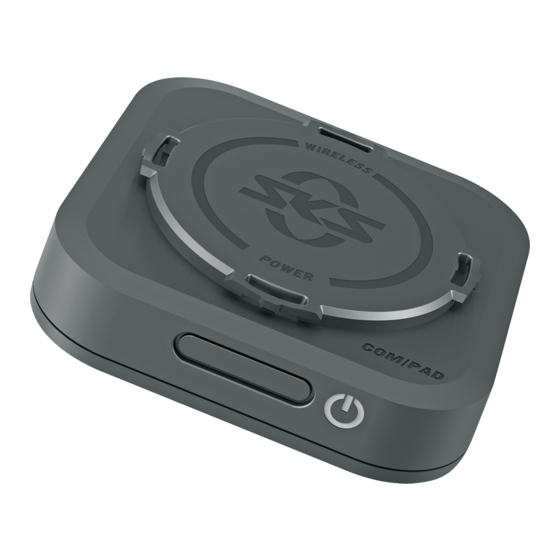

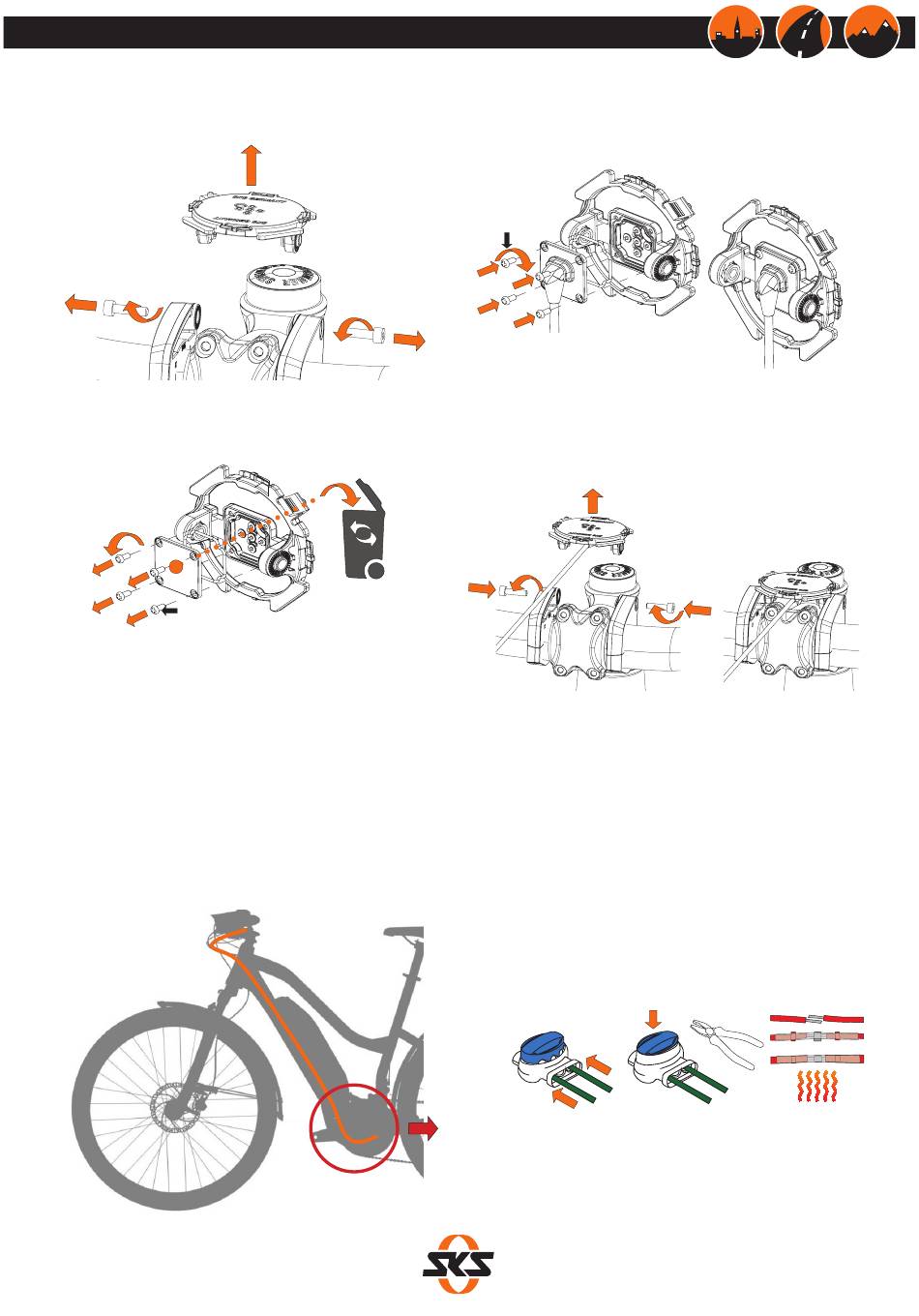

1. Prepare the COMPIT for the COM/PAD

All COMPIT versions (except COMPIT/ANYWHERE)

1. Loosen and remove the levelling screws on both sides

2. Remove the docking station

3-4. Loosen and remove the screws (T6). Remove and discard the dummy cover.

2. Connect the COMPIT to the e-bike

For e-bikes with a 12 V-36 V lighting system or power supply

Route the COMPIT connection cable to the motor, ensuring that the cable is

routed cleanly along the cable routing specific to the bicycle model.

Connect the COMPIT connection cable to the cable of the lighting system with

waterproof terminals at a suitable point. Alternatively, solder connections can also

be used. Motor

(connection cable is not supplied)

11756

4. Insert the sealing ring again. Attach the connection plate with the cable and

4. secure it with screws. Do not exceed the 0.15 Nm tightening torque of the

screws.

max. 0,15Nm

5. Insert the docking station between the retaining clamps.

6. Insert the levelling screws and tighten them slightly. Adjust the angle of the

docking station. Tighten the levelling screws.

GERMANY

ALLROAD

Wärmequelle/Heat source

ROAD

MOUNTAIN

Need help?

Do you have a question about the COM/PAD and is the answer not in the manual?

Page 1 ALLROAD ROAD MOUNTAIN 1. Prepare the COMPIT for the COM/PAD 4. Insert the sealing ring again. Attach the connection plate with the cable and 4. secure it with screws. Do not exceed the 0.15 Nm tightening torque of the All COMPIT versions (except COMPIT/ANYWHERE) screws.
Page 2 Screw in the anti-theft lock screw as far as it will go. Place the COM/PAD on the COMPIT and turn it (about 45°) either to the right or left above the docking station until you hear it click into place.
Page 3 Touch 2 sec. USB C-PD ON USB C-PD OFF 5. Charge the mobile device wirelessly 1 Switch on the COM/PAD. LED indicator lights up blue 2 Attach the mobile device and lock it by turning it 3 Mobile device is charged and LED indicator flashes blue. Touch 2 sec.
Page 4 MOUNTAIN 5 Charge the mobile device with cable 1 Switch on the COM/PAD USB C PD output. LED indicator is off! 2 Connect the cable (not supplied) to the COM/PAD. 3 Attach the mobile device and lock it by turning it 4 Connect the cable (not supplied) to the mobile device.

11756
