DCS 6000
Upgrade Manual
Digital Conference System

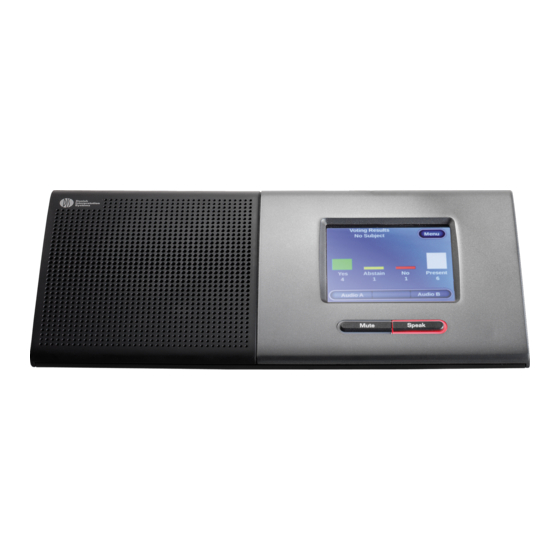

DCS 6000 Digital Conference System
Firmware Upgrade & Feature License Key
Import Manual
(Latest release 5.3.4)
Danish Interpretation Systems
DIS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCS-6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DIS DCS-6000

  • Page 1 DCS 6000 Upgrade Manual Digital Conference System DCS 6000 Digital Conference System Firmware Upgrade & Feature License Key Import Manual (Latest release 5.3.4) Danish Interpretation Systems...
  • Page 2 Danish Interpretation Systems Firmware Upgrade Manual Copyright © 2005 DIS DCS6000 UPGRADE MANUAL REV O.DOC 21-06-2006 No part of this publication may be reproduced or utilised in any form or by any means without permission in writing from the publisher.
  • Page 3: Table Of Contents

    Danish Interpretation Systems List of Contents List of Contents... 3 Introduction ... 4 Upgrade ability ... 5 System with CU 6000 - what to upgrade (recommendations)... 5 System with CU 6010 - what to upgrade (recommendations)... 6 Locked units ... 6 Upgrade tables...
  • Page 4: Introduction

    Danish Interpretation Systems Firmware Upgrade Manual Introduction This manual describes the procedure for upgrade/downgrade of the firmware in the various units in the DCS 6000 system. The manual does also describe how to upload CU 6010 Feature Licenses into the CU 6010 Central Unit The last section describes the compatibility and upgrade ability for the firmware versions in the DCS 6000 System Manual 01 18 04500...
  • Page 5: Upgrade Ability

    Danish Interpretation Systems Upgrade ability The following tables are guidelines to find the recommendations for when to upgrade. If you are in doubt please consult DIS product support at the e-mail: productsupport@dis.cc. System with CU 6000 - what to upgrade (recommendations) Find the DSP firmware version for the CU 6000 in the system...
  • Page 6: System With Cu 6010 - What To Upgrade (Recommendations)

    Danish Interpretation Systems System with CU 6010 - what to upgrade (recommendations) Find the DSP firmware version for the CU 6010 in the system Need to expand the system with new type of units? Is the DSP firmware version 0.18? Important CU 6010 Central Units with PPC firmware 4.5.3 (or less) or DSP firmware 0.18 (or less) must not be upgraded to release 5.x.x using FUU Upgrade Utility.
  • Page 7: Upgrade Tables

    Danish Interpretation Systems Upgrade tables The next tables show the ways the various units can be upgraded. The first table shows from previous releases to Release 5.3.2 and the last table shows from previous releases to Release 4.5.3 Upgrade ability beta 4.0.0 00.14 00.42...
  • Page 8: Compatibility

    Danish Interpretation Systems Compatibility The next tables show the compatibility for the various releases as well as the firmware versions, which are loaded into the units for each release. The ‘Grey’ color marks the firmware versions, which are compatible to the mentioned release.
  • Page 9: Firmware Upgrade Of The Dcs 6000 System

    Danish Interpretation Systems Firmware Upgrade Manual Firmware upgrade of the DCS 6000 system Before you start Needed equipment is a PC or laptop with a free RS232 port and a serial cable (straight) and the DCS 6000 Firmware Upgrade Utility (FUU) as well as the firmware. If your laptop does not have an RS232 port a RS232/USB adapter can be used instead.
  • Page 10: Dcs 6000 Firmware Upgrade Utility (Fuu) And Firmware Releases

    Danish Interpretation Systems DCS 6000 Firmware Upgrade Utility (FUU) and Firmware Releases The DCS 6000 Firmware Upgrade Utility (FUU) and Firmware Releases can be downloaded from /Distributor section. If you are not a distributor please contact your local distributor for getting the latest versions. How to upgrade/downgrade the Firmware Unzip the zip file containing the Firmware Releases and...
  • Page 11 Danish Interpretation Systems After the utility is started, you may be notified the ‘FUU_Library.XML’ is missing. Click OK Click ‘Library/Select Library’. A dialog box will appear. Browse to the ‘Release 5.3.x folder’. Select ‘FUU_Library.XML’ and click ‘Open’ Check the Com setting by clicking Setup/Serial Port.
  • Page 12 Danish Interpretation Systems The FUU will now show all units in the system as well as information about the Central Unit It is advisable to do “System Upgrade”, where the FUU Utility automatically will select each type of unit and upgrade to the selected release: System Upgrade...
  • Page 13: License Key

    Danish Interpretation Systems 10 The popup’ Upgrade status log’ will shown the progress of the firmware upgrade. The upgrade will take approximately 5 minutes pr. unit type. 11 After upgrade of the system the ‘Upgrade status log’ will close automatically and the popup ‘License key in the CU is missing’...
  • Page 14: How To Import The License Key

    Danish Interpretation Systems How to import the License key Unzip the zip file containing the Licence Key to the Desktop or another convenient place at the PC or Desktop Connect the laptop to the CU 6010 using the RS 232 serial interface cable and switch ON the CU 6010 Start DCS 6000 Firmware...
  • Page 15 Danish Interpretation Systems After the utility is started, you may be notified the ‘FUU_Library.XML’ is missing. This library is not needed for importing a License key. Click OK Check the Com setting by clicking Setup/Serial Port. Select the COM port in Use and click OK The FUU will now show all units in the system as well as...
  • Page 16: Feature Id

    Danish Interpretation Systems The popup ’Import License key’ will now show. Use the browse button to select the License Key file Press OK. The new license key will then be imported. After successfully having imported the license key, you will be notified to restart the CU 6010.
  • Page 17 Danish Interpretation Systems The Utility starts The FUU will now show all units in the system as well as Central Unit Manual 01 18 04500 Firmware Upgrade Manual...
  • Page 18 Danish Interpretation Systems Select the unit(s) where you want to change the feature Id. using the “Select unit type” or “Select unit” button. Click “3B Set FeatureID” button to open the “Setup features” popup. Select the value (Present / Not Present) for the loudspeaker and click OK.
  • Page 19: Buttons And Windows In The Fuu Firmware Upgrade Utility

    Danish Interpretation Systems Buttons and windows in the FUU Firmware Upgrade Utility ’Upgrade CU firmware buttons’ Press those buttons to upgrade the firmware in the CU: ’Upgrade PPC’ & ’Upgrade DSP’. ’Status window’ This window shows the status and give messages to the user ’CU window’...
  • Page 20: Check Dis-Lan' Commands From Fuu To Cu 6010

    Danish Interpretation Systems ’Check DIS-LAN’ commands from FUU to CU 6010 Commands for CU The following list summarises some useful commands in case problems with the cable occurs: AIB: Auto input test AOB: Auto output test ERC: List errors received. After the list of error counts has been printed. If the command name is folowed by a ‘!’...
