DIS DM 6080 F Datasheet

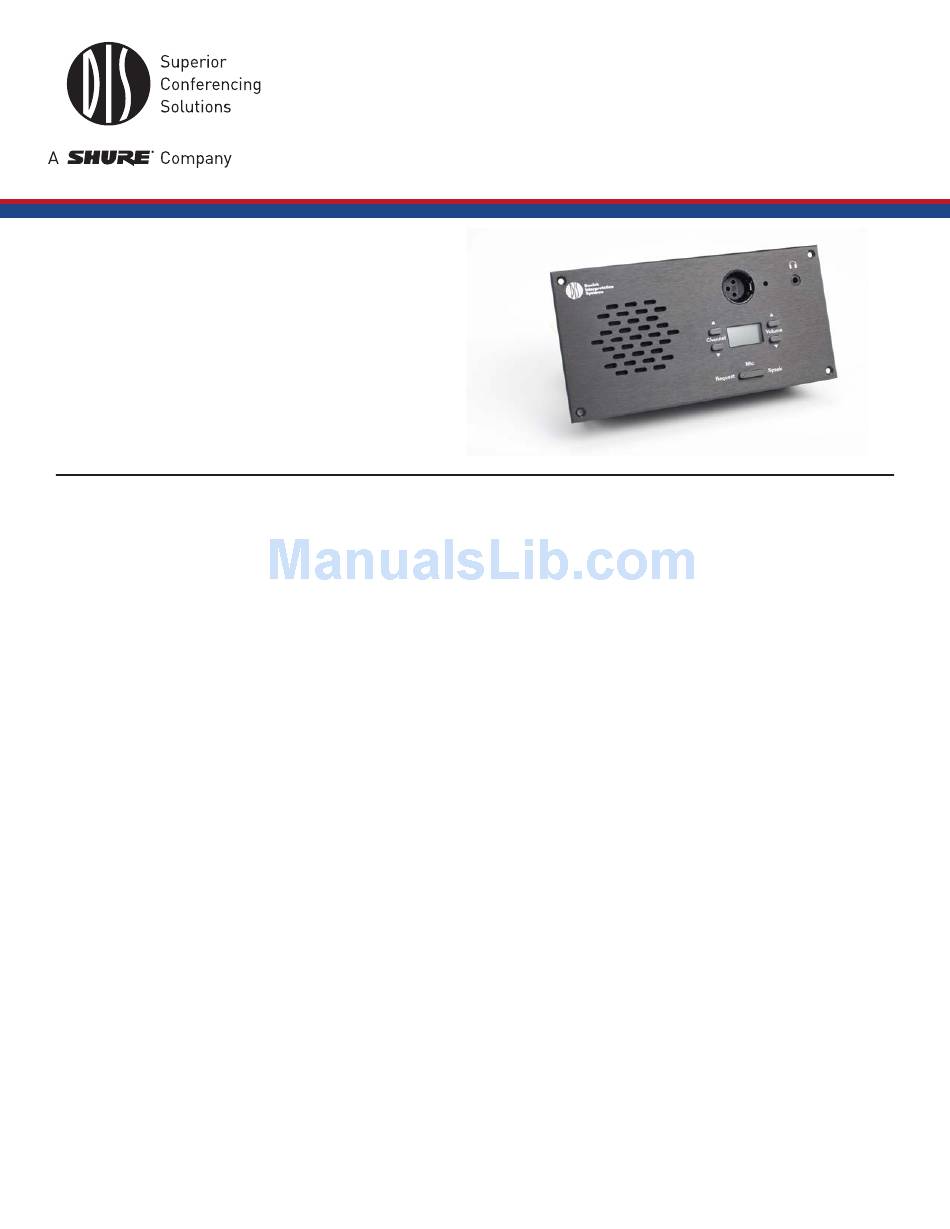

DM 6080 F Conference Unit
• Flush-mounted delegate conference unit
• Channel selector
• Loudspeaker
• Lockable XLR microphone connector
Description
The DM 6080 F is a fully digital flush-mounted conference unit in the DIS DCS
6000 Digital Conference System.
The unit is designed as a discussion unit with channel selector functionality. It fea-
tures a microphone button, headphone jack, channel selector, a loudspeaker and a
lockable XLR microphone connector.
The microphone button enables the user to activate/deactivate the microphone
either directly or by a request to speak. A button LED indicates whether the micro-
phone is on (red LED) or in request to speak mode (green LED).
The floor channel is distributed through the built-in loudspeaker, except when the
microphone is turned on. The user can also listen to the floor channel by insert-
ing headphones in the headphone jack and adjusting it with the volume buttons.
Optionally, the channel selector can be used for listening to an interpretation
channel.
The DM 6080 F can be used in combination with the gooseneck microphones GM
652x or GM 6622 or the boundary microphone BM 6620.
The gooseneck microphones GM 652x or GM 6622 can be locked to the unit with
a 2 mm hex key. The lock is accessible from the small hole to the right of the XLR
socket. Turn the hex key clockwise to enable the lock and insert the gooseneck
microphone into the XLR socket. Turn the hex key counter clockwise to disable the
lock and remove the gooseneck microphone.
The boundary microphone BM 6620 can be retrofitted by replacing the XLR insert
in the plastic adaptor with the boundary microphone. The molex mini-connector fits
with the microphone connector on the PCB.
The DM 6080 F can be combined with any conference units from the DCS 6000
Digital Conference System.
DIS Digital Conference Systems
DM 6080 F Conference Unit
Features
The DM 6080 F has the following standard features:
• Standard conference unit for delegates
• Fully digital audio transmission
• Daisy chain topology with loop-through connections or star
topology using junction boxes
• CAT 5e (or higher) F/UTP or U/FTP cabling
• Maximum 3800 conference units per system
• Support for four microphone operation modes; Automatic,
FIFO, Manual and VOX (voice activation)
• Support for three microphone interrupt modes enabling 'ping
pong' mode
• Auto off of microphones
• Lockable XLR gooseneck microphone connector
• A high-quality loudspeaker
• One channel selector supporting the floor channel and 31
interpretation channels
• One headphone jack
• One microphone button with LED indicators for speak and
request to speak
Data sheet DS-DM6080 F-b
