Banner EZ-SCREEN Assembly

EZ-SCREEN LP Safety Light Screen
®
Kit Components
Model Description
1. SLPE25-270P8 Emitter
2. SLPR25-270P8 Receiver
3. CSB-M1281M1281 Splitter Cordset
EZ-SCREEN LP Manual
—
(p/n 140044)
— Demo Bag
— Setup Card (p/n 143536)
3.
1.

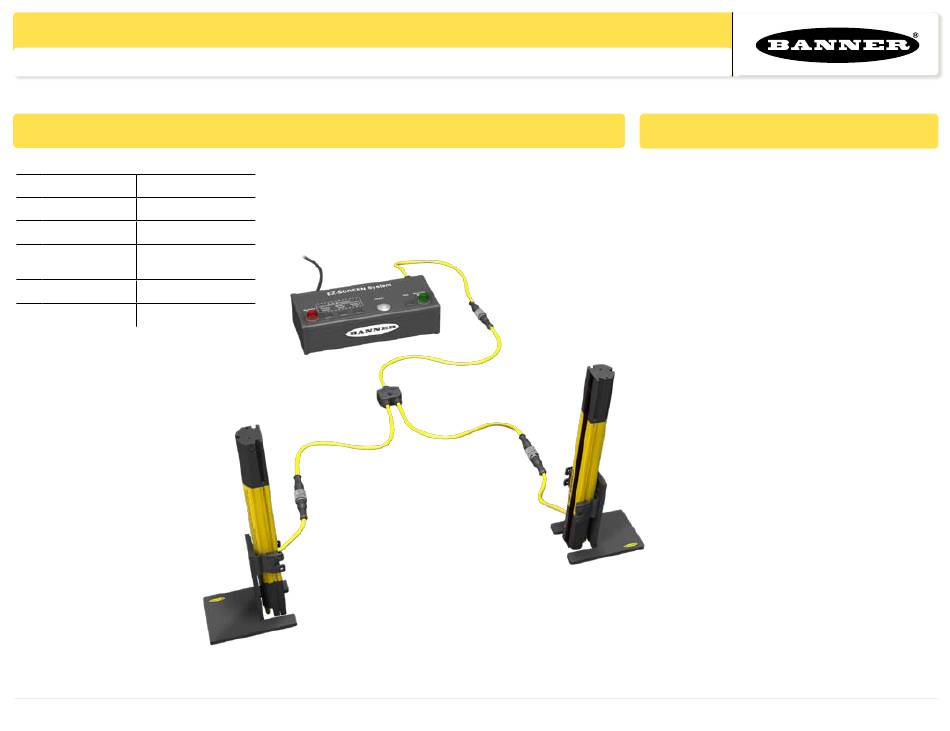

(Using EZ-SCREEN Demo Kit)
2.
Demo Kit
Assembly
1. Obtain EZ-SCREEN power supply demo box found in the
EZ-SCREEN Demo Kit p/n 71925.
2. Attach trunk of the splitter ccordset to the demo box 8-pin
cable.
3. Attach branches of the splitter cordset to the emitter and
receiver pigtail connections.
4. Apply power to demo box and align emitter/receiver to
illuminate the green indicator. This is assuming the emitter
and receiver are configured for default settings:
• Trip Output
• No Blanking
• Scan Code 1
• E2 (2-Channel EDM)
NOTE: Receiver can be configured for Latch output using
the Reset button on the demo box. Reduced
Resolution and Fixed Blanking can also be
configured, see manual for instructions. Receiver
must be configured for 2-Ch EDM (E2) to work with
demo box.
p/n 143536
