Widex WPT103 User Instructions

Sric charger
Hide thumbs Also See for WPT103:
Table of Contents

Advertisement

Quick Links

USER INSTRUCTIONS
WIDEX sRIC CHARGER
WPT103 model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPT103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Widex WPT103

Summary of Contents for Widex WPT103

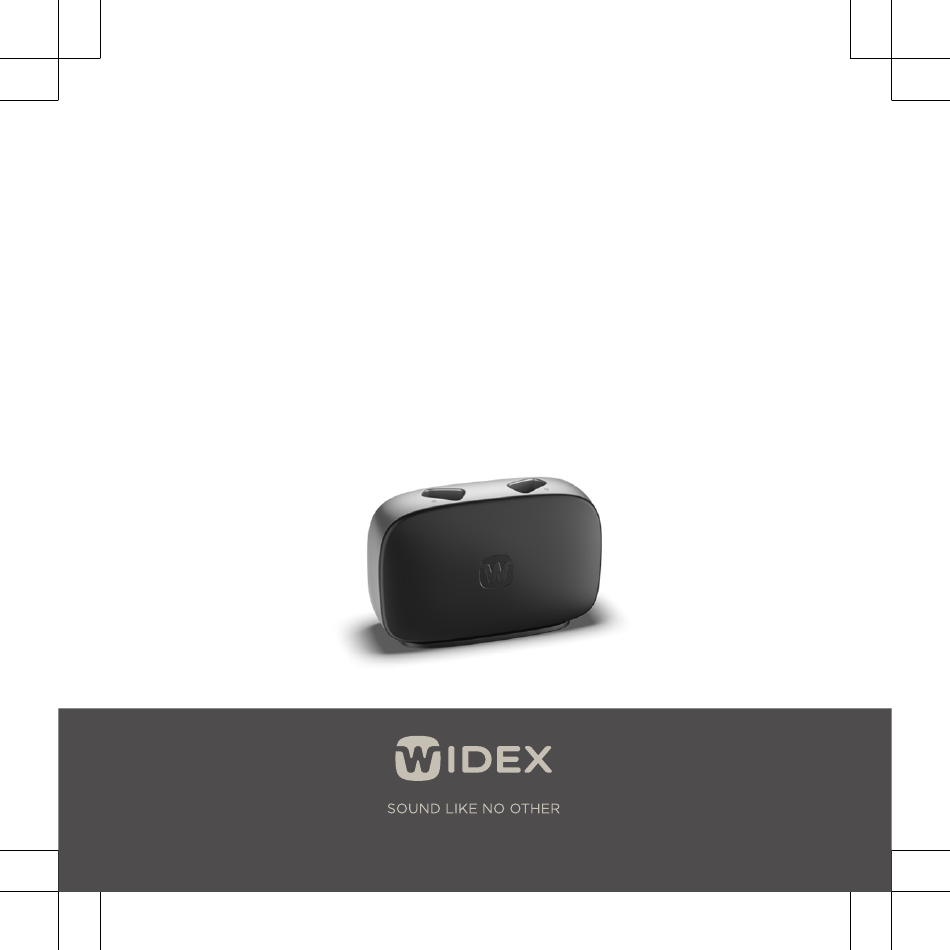

  • Page 1 USER INSTRUCTIONS WIDEX sRIC CHARGER WPT103 model...

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION............4 YOUR CHARGER..................6 Welcome......................6 The charger at a glance...................6 Operating, storage and transport conditions..........7 OPERATING THE CHARGER................8 Getting ready for use..................8 Power supply....................8 Power on....................... 9 Charging the hearing aid................10 Charging indicators..................11 After charging..................... 12 Overview of light indicators..............
  • Page 3 FCC and ISED statements................19 SYMBOLS....................22...

  • Page 4: Important Safety Information

    Never dry your devices in the micro-wave or oven. Use only a WPT103 charger with your hearing aids, If the WPT103 charger is compatible with your hearing aids. Use of a charger not recommended by WSAUD A/S may compromise the system or result in dangerous situa- tions.
  • Page 5 Never leave the charger in direct sunlight and do not immerse it in water. Never insert other objects than your hearing aids in the charging wells. The power adapter must comply with IEC 60601-1, IEC 62368-1 or equiva- lent safety standards acceptable in your region. Always use the supplied USB cable with a power adapter with a USB-A type socket.

  • Page 6: Your Charger

    YOUR CHARGER Welcome Thank you for choosing this product, which is intended to charge the sup- ported hearing aid(s). Read these instructions carefully before you start using this device. NOTE Your charger may not look exactly like the one illustrated in this booklet. We reserve the right to make any changes we consider necessary.

  • Page 7: Operating, Storage And Transport Conditions

    Store and transport the charger within the following conditions: Minimum Maximum Temperature -20°C (-4°F) 50°C (122°F) Humidity 10% rH 95% rH Atmospheric pressure 750 mbar 1060 mbar You can find technical data sheets and additional information on your charger on https://global.widex.com.

  • Page 8: Operating The Charger

    OPERATING THE CHARGER Getting ready for use Power supply You can connect your charger to different power supplies with 5V DC, 500 mA output: Use only the included USB cable.

  • Page 9: Power On

    Connect the cable to the charger: 1. Micro USB port Power on When the charger is connected to the power supply, the light indicators flash white 5 times and then turn off: The charger is now in standby mode and ready to charge your hearing aid.

  • Page 10: Charging The Hearing Aid

    Charging the hearing aid Gently place your hearing aid in the charging well. The hearing aid turns off automatically. When connected to power, the charger can charge two hearing aids simul- taneously; however, each hearing aid can be charged individually, depend- ing on the state of the hearing aid.

  • Page 11: Charging Indicators

    Charging indicators While the charger is detecting the hearing aid, the light indicator turns solid yellow: Once the charger has detected the hearing aid, the charging will begin. The light indicator will flash green to indicate that the hearing aid is low on battery and less than 40% charged:...

  • Page 12: After Charging

    The light indicator will glow green to indicate that the hearing aid is more than 40% charged: The light indicator will turn solid green to indicate that the hearing aid is 100% charged: After charging Avoid removing the hearing aids from the charging wells by pulling the ear wire/tube, as this could damage the connection to the hearing aid.

  • Page 13: Overview Of Light Indicators

    Instead, put your fingers round the hearing aid when removing it from the charger. When you remove the hearing aid from the charger, the hearing aid turns on after a few seconds. Remember to turn the hearing aid and/or the charger off if you are not go- ing to use them right away.
  • Page 14 Light indicators Status Solid green The hearing aid is fully charged Battery 100% charged One indicator flashing red An error occurred during charging and the charging has stopped See Troubleshooting Both indicators flashing red An error occurred during charging and the charging has stopped See Troubleshooting Flashing yellow The temperature of the hearing aid...

  • Page 15: Cleaning

    CLEANING The charger does not generally require cleaning. If necessary, disconnect the charger from the power supply and carefully wipe off the charger with a soft dry cloth If you notice any dust in the charging well, gently blow it clean. If this is not enough, gently clean the charging well with a cotton bud.

  • Page 16: Troubleshooting

    TROUBLESHOOTING These pages contain advice on what to do if your charger does not work as expected. Light indicators Possible cause Solution No lights The charger is not Make sure that the USB connected cable is connected to a power adapter and then plugged into a wall socket The hearing aid is not Place the hearing aid...
  • Page 17 Light indicators Possible cause Solution The hearing aid has a Remove the hearing aid, critical error disconnect from the pow- er for 10 seconds and then try again If the charger is still flashing red, contact your hearing care professional Both indicators The charger has a critical Remove the hearing aid,...

  • Page 18: Regulatory Information

    REGULATORY INFORMATION Intended use The WIDEX charger WPT103 model is to be used for charging the MRR4D hearing aid. EU directives Directive 2014/53/EU Hereby, WSAUD A/S declares that the WPT103 is in compliance with the es- sential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 19 Hearing aids, hearing aid accessories and chargers should be disposed of at sites intended for electrical waste and electronic equipment, or given to your hearing care professional for safe disposal. For returning or shipping the devices, please contact your hearing care pro- fessional.
  • Page 20 vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. —...
  • Page 21 (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’emetteur/recepteur exempt de licence contenu dans le present appareil est conforme aux CNR d’Innovation, Sciences et Developpement economi- que Canada applicables aux appareils radio exempts de licence. L’exploita- tion est autorisee aux deux conditions suivantes: (1) L’appareil ne doit pas produire de brouillage;...
  • Page 22 SYMBOLS Symbols commonly used by WSAUD A/S in medical device labelling (la- bels/IFU/etc.) Symbol Title/Description Manufacturer The product is produced by the manufacturer whose name and address are stated next to the symbol. If appropriate, the date of manufacture may also be stated. Catalogue number The product’s catalogue (item) number.
  • Page 23 Symbol Title/Description CE mark The product is in conformity with the requirements set out in Euro- pean CE marking directives. RCM mark The product complies with electrical safety, EMC and radio spectrum regulatory requirements for products supplied to the Australian or New Zealand markets.
  • Page 24 WSAUD A/S Nymoellevej 6, DK-3540 Lynge, Denmark https://global.widex.com 9 514 0788 001 01 Manual no.: 9 514 0788 001 01 Issue: 2022-02...
