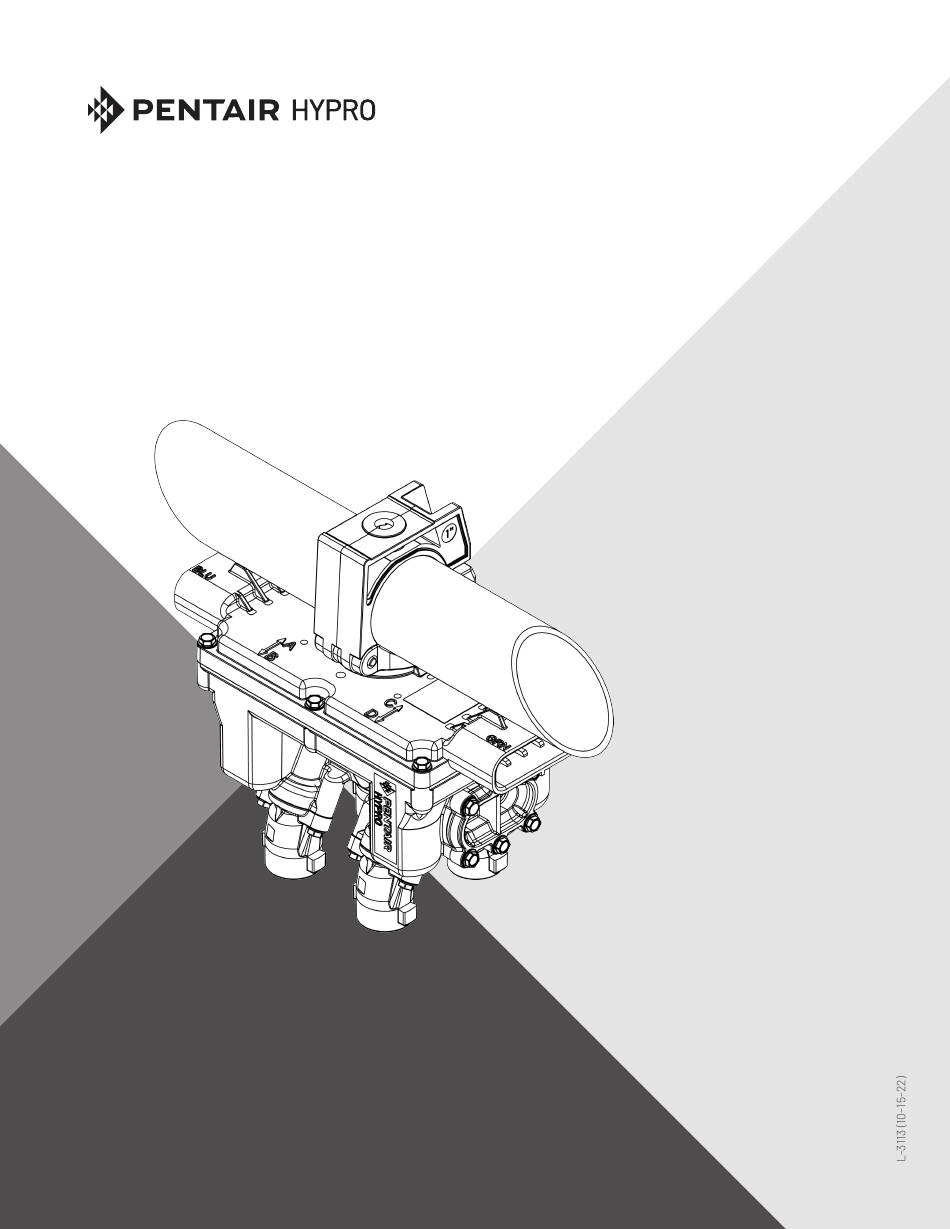

- Page 1 PROSTOP-E QUAD NOZZLE BODY ENGLISH: 1-16 INSTALLATION AND OPERATION MANUAL pentair.com ©2022. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ....................................2 Installation & Operation ..................................3 ISOBUS Communications ..................................6 General Commands ....................................7 Troubleshooting ....................................12 Parts List ....................................... 13 Warranty ........................................ 15 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during installation, operation, and maintenance of the product. -
Page 3: Installation & Operation
INSTALLATION AND OPERATION GENERAL INFORMATION ProStop-E Quad provides precision on/off control of individual nozzles along a spray boom, with high flow and low power consumption. A CAN bus interface communicates using an ISOBUS compatible protocol for complete individual control of the 4 nozzles per module, across the entire spray boom. - Page 4 INSTALLATION AND OPERATION Nozzle Body Clamp Torque: 17 in-lbs. Connector Information: 2X Aptiv Metri-Pack 280 Side designated “GRN” accepts Aptiv Connector 12084891 Side designated “BLU” accepts Aptiv Connector 15343999 A tab between terminals D & E on the “BLU” side prevents the cables from being installed backwards. ...
- Page 5 INSTALLATION AND OPERATION WIRING OPTIONS Cordsets are Metri-Pack 280 series with straight sealed connectors Cordsets can be sourced directly from Pentair. 2520-0270 – Daisy chain cordset. BLUE SEAL GREEN SEAL ON CONNECTOR ON CONNECTOR GRN SIDE BLU SIDE NO SLOT BETWEEN D &...
-
Page 6: Isobus Communications
ISOBUS COMMUNICATIONS ISOBUS COMMUNICATIONS Devices in mapping mode will not send responses to compete in the address claim process until there is a signal on their address The ProStop-E Quad supports 250 kbps ISOBUS compatible line. See PCM 1 below for putting the devices into mapping communication using a CAN bus interface mode. -
Page 7: General Commands
GENERAL COMMANDS PROPRIETARILY CONFIGURABLE MESSAGE (PCM) 1 Transmission Repetition Rate: No faster than 10ms Data length: 8 bytes Data page: 0 Protocol Data Unit (PDU) format: 177 PDU specific: Global (255 – required for commands 2, 3) or destination address (DA) Priority: 0 Parameter Group Number (PGN): 45312 (00B100 Byte 0: Command... - Page 8 GENERAL COMMANDS PCM X (X = 4, 6, 8, 10, 12) Transmission Repetition Rate: No faster than 10ms per PCM Data length: 8 bytes Data page: 0 PDU format: 176 + x (180, 182, …) PDU specific: DA Priority: 0 PGN: 45056 + 256·x (00B400 , 00B600 , …)
- Page 9 GENERAL COMMANDS The four bit error condition for each device is as follows: ERROR BITS MEANING 0000 No errors 0001 Unable to meet expected position(s) 0010 Low input voltage 0100 Reserved for future use 1000 Reserved for future use For example, to set the positions of the Nozzle Body at address 170 to valve 3 open and valves 0 – 2 closed and the positions of the Nozzle Bodies at addresses 166 –...
- Page 10 GENERAL COMMANDS For maximum performance and consistency regardless on the number of Nozzle Bodies on the bus, the ECU should continuously send and receive the following sequence of 80 position messages and up to 80 status responses with 2ms between sending messages. This allows each valve to be set on a 10ms interval and each Nozzle Body to report its status on a 160ms interval.
- Page 11 GENERAL COMMANDS FIRMWARE VERSION The segments will respond to the request message (00EA00 ) requesting PCM14 (PGN 00BE00 ) with the firmware version number for the Nozzle Body. The first two bytes of the response are the major and minor versions, respectively. The remaining six bytes are reserved.
-
Page 12: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Inspect for power supplied to the valve. Verify suitable voltage is present using a Power fault / low voltage. voltage meter. Overpressure. Valve will not open at pressures above 150PSI (10 bar). Reduce system pressure. Prevent contamination by practicing good sprayer hygiene and utilizing or Valve does Debris obstructing ball... -
Page 13: Parts List
PART LIST DESCRIPTION PART # Kit, Stem Bottom Clamp 1" pipe 3430-0901 Kit, Stem Bottom Clamp 20mm 3430-0902 Kit, Stem Bottom Clamp 22mm 3430-0903 Kit, Stem Bottom Clamp 25mm 3430-0904 Kit, Stem Bottom Clamp 28mm 3430-0905 Kit, Stem Bottom Clamp 1" pipe (tall) 3430-0914 Retainer Clip 1600-0106... - Page 14 THIS PAGE HAS BEEN LEFT BLANK INTENTIONALLY L-3113 (10-15-22)
-
Page 15: Warranty
(under the terms of this limited warranty), then the Buyer must pay return packing and freight charges. Where products are tested and found to be covered by this limited warranty, then Pentair will pay for return packing and freight charges. - Page 16 Fx: 800.323.6496 All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. Because we are continuously improving our products and services, Pentair reserves the right to change specifications without prior notice. Pentair is an equal opportunity employer.
