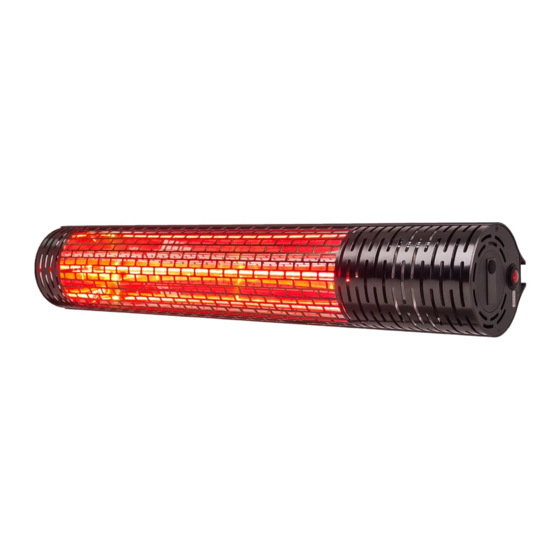

Carbon Infrared Heater Indoor/Outdoor
Owner's Manual
Model No.: DR-233

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR-233 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DR. Heater DR-233

Summary of Contents for DR. Heater DR-233

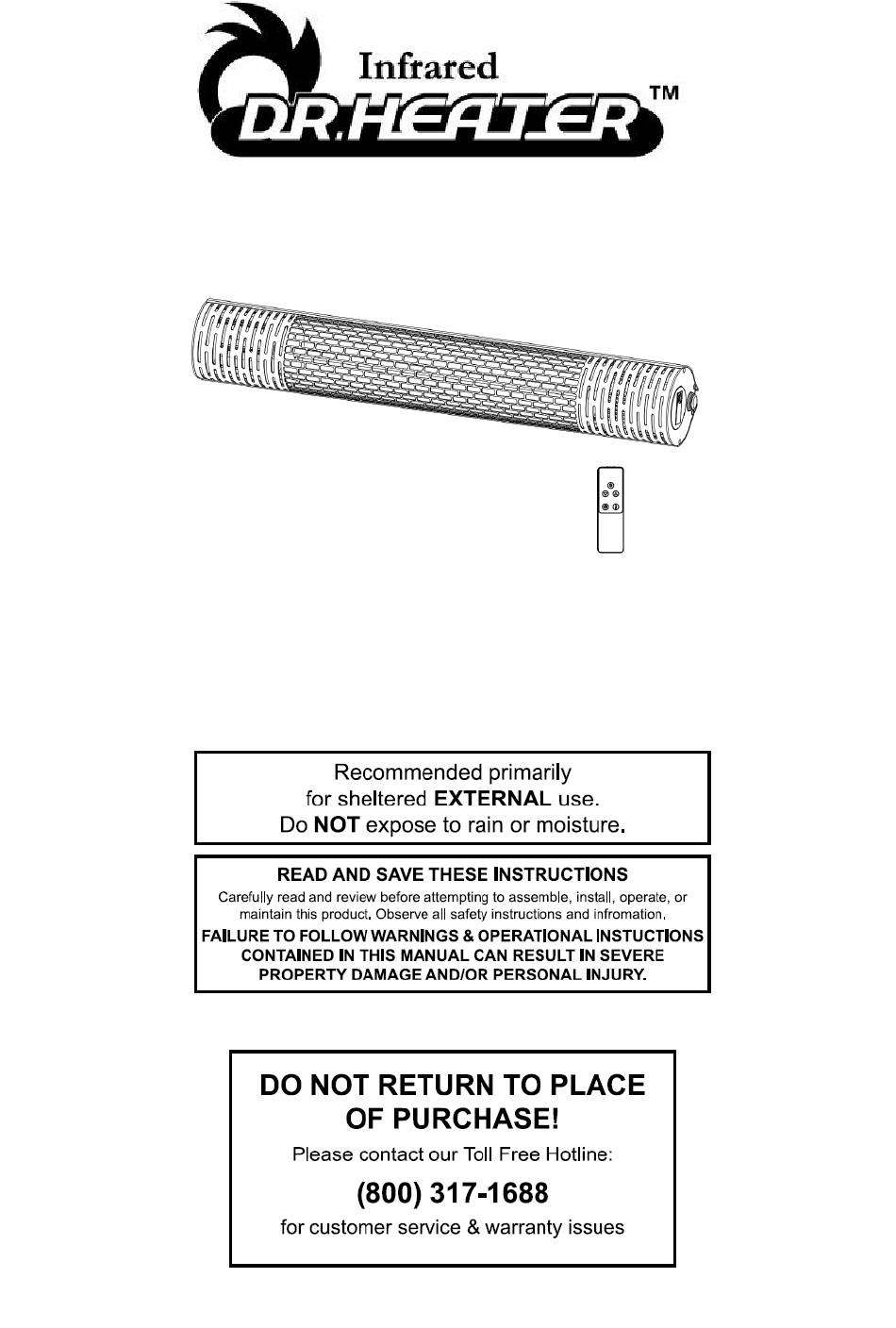

  • Page 1 Carbon Infrared Heater Indoor/Outdoor Owner’s Manual Model No.: DR-233...

  • Page 2: Important Safety Instructions

    Warning THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE, We cannot be liable for any damages caused by failure to observe these instructions. IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation, maintenance and operation of the heater can be dangerous.
  • Page 3 Please contact your local municipality for the nearest collection point. Introduction The infrared heaters produce instant and comfortable heat like the sun. These robust and weatherproof heaters are designed for domestic and commercial heating applications within indoor and outdoor areas. Model DR-233 Voltage(V) 110-120V AC Wattage(W) 1500 Hertz(Hz) Dimensions W×H×D(mm)

  • Page 4: Installation

    INSTALLATION Tools Needed: * Pencil *Hammer *Level *Screw Driver *Power Drill and drill bits A mounting bracket is provide with the heater which has been specifically designed to allow this product to be fitted to ceiling or wall before drilling the holders for the ceiling/wall is solid and that there are no hidden water pipes or electric wires.
  • Page 5 22. The brackets can be used to adjust the direction of the heater, adjust the heater angle by loosening the two bolts on the wall mounting bracket, tighten the bolts again when the desired angle is reached. Installation Mounting step 1.
  • Page 6 3. Drill holes with a smaller diameter drill bit than the plastic anchors 4. Insert the point end of plastic anchor into the holes, Tap the anchor with a hammer until the anchor is flush 5. Using a screwdriver attach the mounting bracket to the holes which with plastic anchor inside.
  • Page 7 6. Fasten the heater on the L shaped bracket with screws on the back of heater The heater must be installed at least 2.4m above the floor Attention: cable should not passing thought the heater...

  • Page 8: Remote Control Instructions

    Remote Control Instructions 1. POWER BUTTON: Turn the heater off. 2. UP BUTTON: Increase timer and level. 3. DOWN BUTTON: Decrease timer and level. 4. LEVEL BUTTON: Use to adjust the heat levels(L1-L2). Press the Level button then use the up and down buttons (buttons 2 and 3) to increase or decrease the heating level.

  • Page 9: Troubleshooting

    Troubleshooting 1. Check if the power cord is plugged into an electrical outlet, if not, plug in. 2. Check if electricity to the main fuse is working 3. Error code shows on display E1 Error on Display: Control unit overheat. Check installation clearances. L1,2,3, shows in display, but no heat: Bulb is damaged.

  • Page 10: Warranty Information

    Please visit: https://www.amazon.com/review/review-your-purchases# At Dr. Heater USA, we are committed to bringing top quality alternative & supplemental heating products to our customers. Note: There may be a trace of smoke or odor when the unit is first operated. Do not be alarmed. This indicates a drop of oil fell on the interior coils during the manufacturing process.
