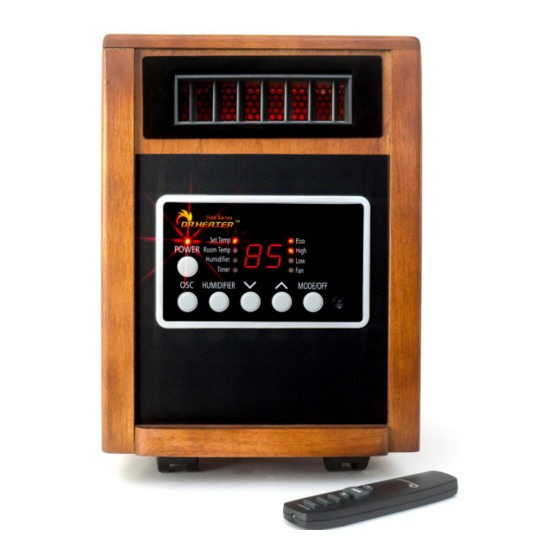

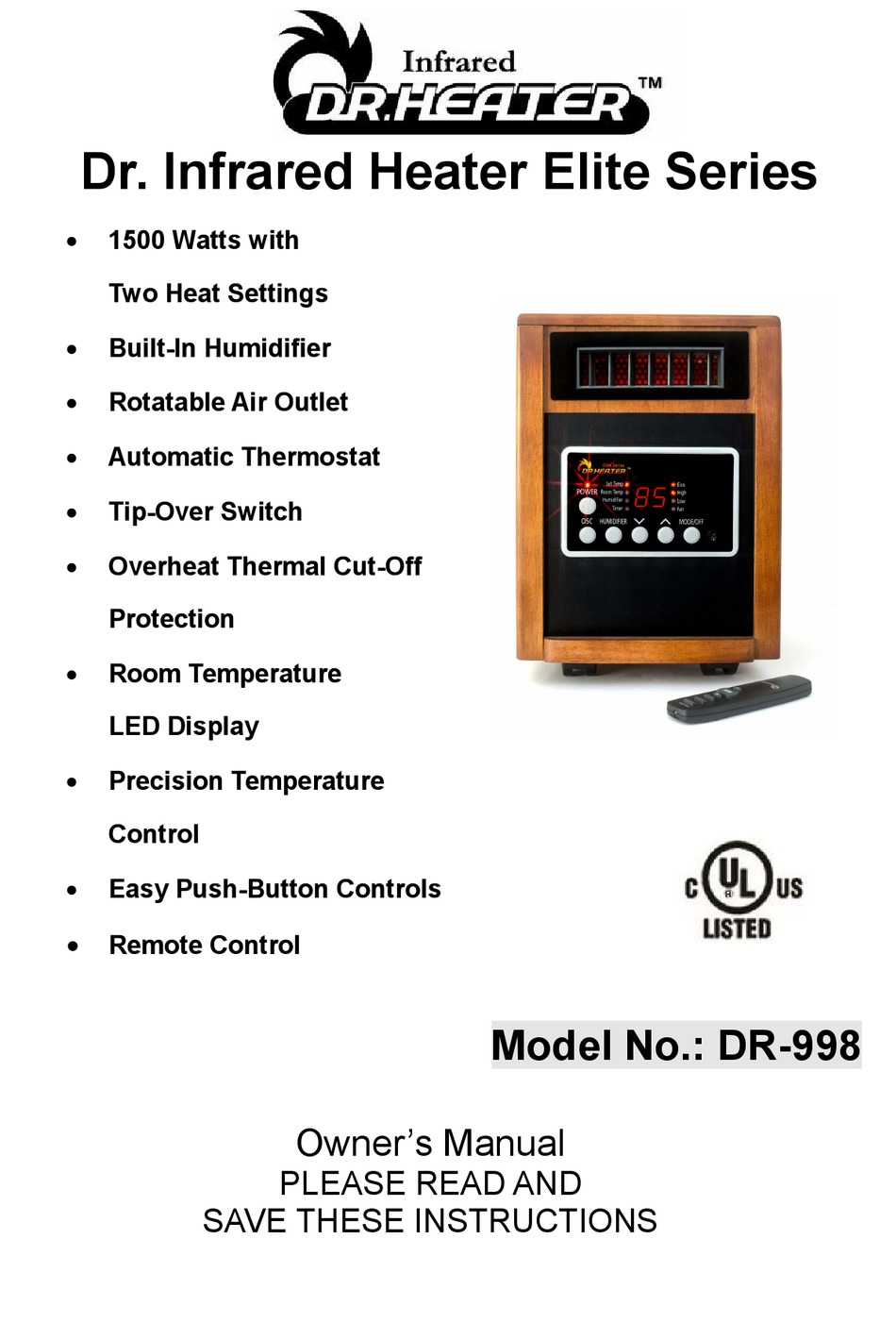

Dr. Infrared Heater Elite Series
1500 Watts with
Two Heat Settings
Built-In Humidifier
Rotatable Air Outlet
Automatic Thermostat
Tip-Over Switch
Overheat Thermal Cut-Off
Protection
Room Temperature
LED Display
Precision Temperature
Control
Easy Push-Button Controls
Remote Control
SAVE THESE INSTRUCTIONS
Owner's Manual
PLEASE READ AND
Model No.: DR-998

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DR. Heater Elite Series

Summary of Contents for DR. Heater Elite Series

  • Page 1 Dr. Infrared Heater Elite Series 1500 Watts with  Two Heat Settings  Built-In Humidifier  Rotatable Air Outlet Automatic Thermostat  Tip-Over Switch  Overheat Thermal Cut-Off  Protection  Room Temperature LED Display Precision Temperature  Control ...

  • Page 2: Important Instructions

    CONGRATULATIONS! he Dr. Infrared Heater Elite Series you have just purchased is a safe and powerful heater, designed to heat a room after a few minutes of operation. The far-infrared Quartz-PTC heating system is an excellent system for safely heating whole rooms, while saving on heating costs.
  • Page 3 3. Extreme caution is necessary when any heater is used by or near children or persons with physical challenges and whenever the heater is left operating and unattended. 4. Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.

  • Page 4: Humidifier Installation

    16. Always unplug heater when not in use. 17. Always plug heater directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip). 18. It is normal for the heater’s plug and cord to feel warm to the touch. A plug or cord which becomes hot to the touch or becomes distorted in shape may be a result of a worn electrical outlet.
  • Page 5 Water Tank Seal Installation Guide A. Install the rubber seal ring before use. B. Wrap the ring around the tube. C. Make sure the rubber ring is in the concave area.
  • Page 6 Water Bottle Adapter Seal Installation Guide (Seal may come in black or white) A. Install the rubber seal ring on the water bottle adapter before use. B. Wrap the ring around the tube. C. Make sure the rubber ring is all the way inside.
  • Page 7 2. Take out the water bottle (Max. 500 ml.) from the package and fill the water bottle with distilled water. Then tighten the connector on the water bottle as shown in Figure 2. FIG 2 CAUTION: You must use distilled water to keep the humidifier working properly. Also, make sure the connector is tightened to the bottle to prevent water leakage.

  • Page 8: Special Features

    This is a safety feature to avoid the possibility of fire should the unit be tipped accidentally. Advanced Dual Heating System (ADHS) - Dr. Heater is the first to feature a dual heating system for maximum heat transfer rate. It combines the energy efficiency of infrared heat with the comfort of convection heat to heat your room fast and comfortably—without hot spots and cold spots.
  • Page 9 Features A. “Cool-Touch” cabinet E. Decrease temperature button B. POWER button F. Increase temperature button C. Rotatable air outlet button G. MODE/OFF button D. Humidifier button H. LED display...
  • Page 10 Steps 1, 2, 3 to turn on the heater The heater default setting is 68ºF, if Step 1 – Plug in power cord to outlet. room temperature is above 68ºF, the heater won’t start if the room temperature is higher than the set temperature.

  • Page 11: Turning The Heater On

    Operating Instructions 1. Plug the power supply cord into a grounded wall outlet (120VAC, 60Hz). Important: This heater comes with a grounded (three-prong) plug. The grounded plug must be used with a grounded outlet. Do not use an adapter in a two-slot wall outlet unless the ground plug of the adapter properly connects to a building ground.

  • Page 12: Setting The Temperature

    component cooling process before turning off the fan. Once the desired temperature is achieved, the heater will maintain the room to the set temperature. LOW POWER MODE – 1000W LOW mode will control the heater to operate at low power until the room reached the set temperature.

  • Page 13: Remote Controller

    11.SETTING THE AIR OUTLET Press the OSC button. The air outlet can be rotatable left and right. For more efficient heating, try placing the heater a few feet above the floor in rooms with a large area. Ensure the heater is secure and won't fall. Remote Controller HOW TO INSERT BATTERIES NOTE: Remove the batteries if the remote control is not to be used for a month...

  • Page 14: Maintenance

    Maintenance 1. Always turn OFF the heater and disconnect the cord from the electrical outlet before cleaning the unit. 2. Light accumulation of dust may be removed from the heater with a soft cloth or vacuum cleaner. 3. Wipe the exterior surfaces of the heater occasionally with a damp cloth (not dripping wet), using a solution of mild detergent and water.

  • Page 15: Cleaning The Humidifier

    Cleaning the humidifier The humidifier should be cleaned once per month or as needed to ensure efficient operation. 1.Power the heater OFF by pressing the POWER button located on the left side of the Control Panel. 2. Unplug the heater’s power cord. 3.

  • Page 16: Warranty Information

    Let us know with a customer review. Please visit: https://www.amazon.com/review/review-your-purchases# At Dr. Heater USA, we are committed to bringing top quality alternative & supplemental heating products to our customers. Note: There may be a trace of smoke or odor when the unit is first operated.
  • Page 17 1-800-317-1688. Prior to your call, we encourage you to visit our service related website www.DrHeaterUSA.com for troubleshooting tips and service instructions if needed. Dr. Heater USA 860 Mahler Road Burlingame, CA 94010 Tel: 1-800-317-1688 EMAIL: SERVICE@DRHEATERUSA.COM...

  • Page 18: Questions And Answers

    QUESTIONS AND ANSWERS Why does the blower fan keep running after I have pressed the power off button? The blower fan will continue to run until the heat chambers cool down. After a few minutes the fan will shut off automatically. What if the heater’s airflow seems to have diminished? Please ensure the rear intake is not blocked and that the filter is clean.
  • Page 19 desired temperature, it will cycle on and off accordingly. Can the heater be used in a bathroom? It is not recommended due to a bathroom’s high level of moisture. Can the heater be used in a basement or garage? Yes, but keep in mind that rooms with little insulation will not retain the heat as efficiently.
  • Page 20 and one PTC element (which is rated for 80,000 hours and up). What is zone heating? Zone heating focuses heat where people spend the most time. After all, there is no point in heating multiple rooms to +68 degrees when not in use. Can I use an extension cord, surge protector, or power strip with my heater? No.
