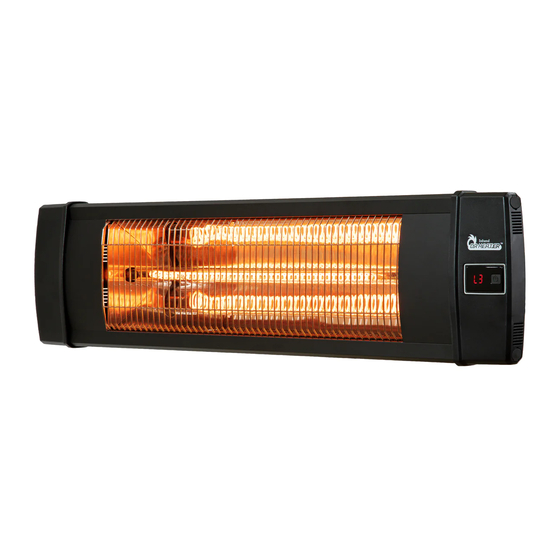

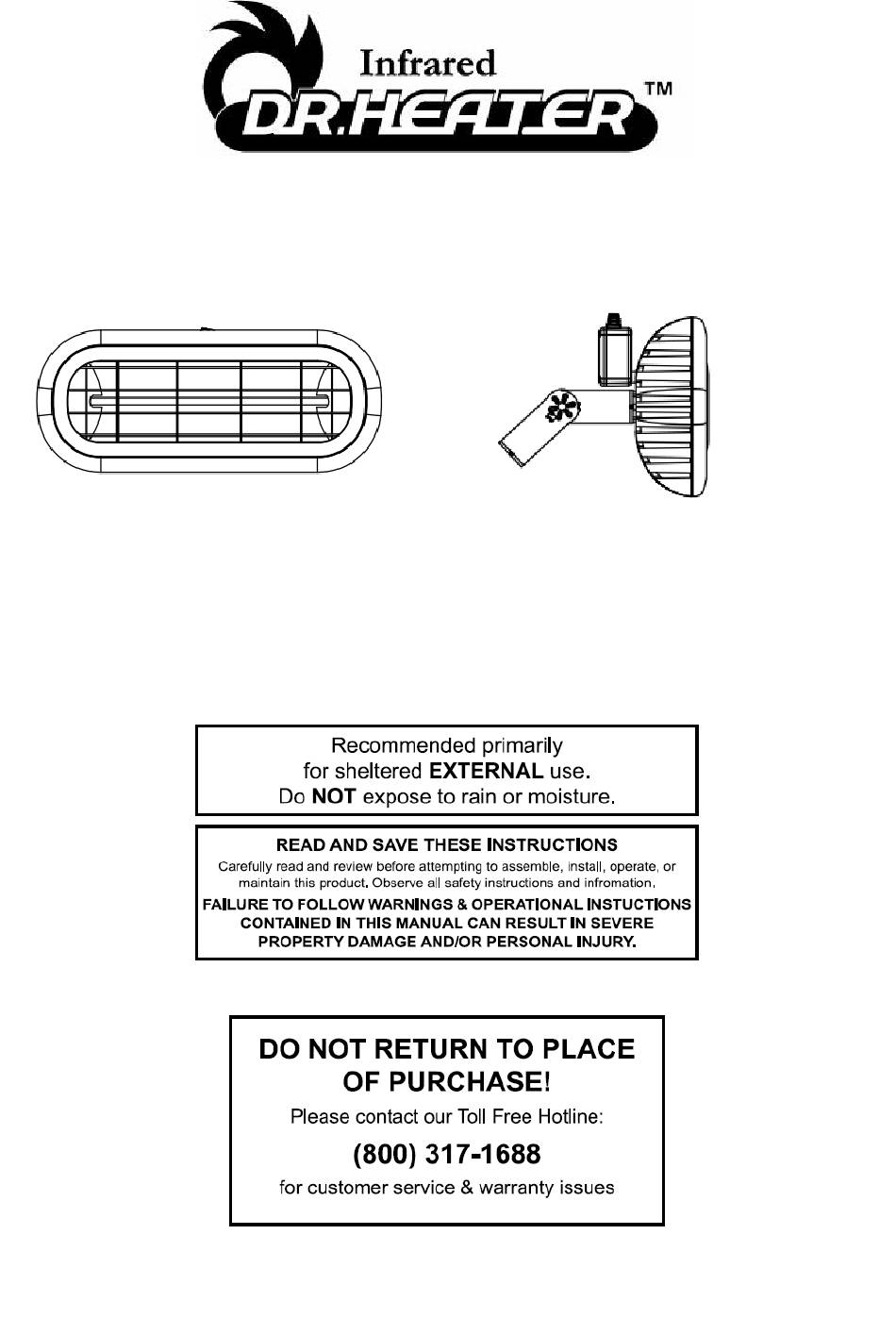

- Page 1 Carbon Infrared Heater Indoor/Outdoor Wall/Ceiling Mount Owner’s Manual Model No.: DR-222...
-
Page 2: Important Safety Instructions
Warning THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE, We cannot be liable for any damages caused by failure to observe these instructions. IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY-The infrared heater is designed for safe operation. Nevertheless, installation, maintenance and operation of the heater can be dangerous. - Page 3 Please contact your local municipality for the nearest collection point. Introduction The DR-222 carbon infrared heaters produce instant and comfortable heat like the sun. These robust and weatherproof heaters are designed for domestic and commercial heating applications within outdoor areas, it is for outdoor use only.
-
Page 4: Installation
INSTALLATION Tools Needed: * Pencil *Hammer *Level *Screw Driver *Power Drill and drill bits A mounting bracket is provide with the heater which has been specifically designed to allow this product to be fitted to ceiling or wall before drilling the holders for the ceiling/wall is solid and that there are no hidden water pipes or electric wires. - Page 5 20. Fasten the brackets securely to the mounting surface and the backside of the heater using the nuts and screws supplied. 21. Fasten the heater securely on the brackets using the nuts and bolts supplied. 22. The brackets can be used to adjust the direction of the heater, adjust the heater angle by loosening the two bolts on the wall mounting bracket, tighten the bolts again when the desired angle is reached.
- Page 6 Mounting step 1. Mark holes on the place where the heater to be mounted with a pencil using the U bracket 2. Drill holes with a smaller diameter drill bit than the plastic anchors 3. Insert the point end of plastic anchor into the holes, Tap the anchor with a hammer until the anchor is flush 4.
-
Page 7: Troubleshooting
Troubleshooting 1. Check if the power cord is plugged into an electrical outlet, if not, plug in. 2. Check if electricity to the main fuse is working 3. Check to see if the power button on the back of heater is power on. MAINTENANCE Attention! Careful and regular maintenance of your heater considering our instructions assume great importance so as to attain a long efficient operation of your appliance. - Page 8 6. The heater contains no user serviceable parts. Should the product suffer damage or breakdown, it must be returned to the manufacturer or its service agent. 7. Damaged supply cords to be replaced by the manufacturer, service agent or similarly qualified person in order to avoid hazard.
-
Page 9: Warranty Information
Please visit: https://www.amazon.com/review/review-your-purchases# At Dr. Heater USA, we are committed to bringing top quality alternative & supplemental heating products to our customers. Note: There may be a trace of smoke or odor when the unit is first operated. Do not be alarmed. This indicates a drop of oil fell on the interior coils during the manufacturing process.
