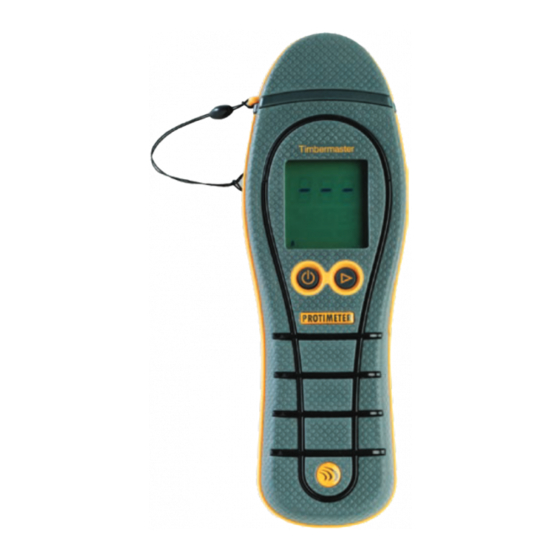

- Page 1 PROTI METER TimberMaster Protimeter Moisture Meter (BLD5605, BLD5609, BLD5605-SW, BLD5609-SW) Instruction Manual Amphenol INS5605-EN Rev. D Advanced Sensor s February 2018...
- Page 2 Pin (WME) Mode Operation The Protimeter TimberMaster is a conductivity moisture meter designed for use in wood. Moisture measurements can be taken using the integral pin electrodes. When...
- Page 3 3.5mm socket at the right hand side of the TimberMaster, and switch ON by pressing Select the appropriate wood calibration scale (A, B, C, D, E, F, G, H or J) by referring to the enclosed Protimeter wood calibration tables and pressing . Drive the moisture probe pins or hammer electrode needles in to the wood and observe the reading.
- Page 4 “calcheck” device (supplied) or across the terminals of the protimeter check box (optional accessory). When checking the calibration, the A scale should be selected and the temperature probe must be disconnected.
- Page 5 See page 6 for further information. Operating TimberMaster 8.1 Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Protimeter TimberMaster Page 5...
- Page 6 Press and hold the button and switch on the unit by pressing . Hold both buttons until the TimberMaster displays the version. Release both buttons while it shows the version number. The unit enters Settings Mode. Page 6 Protimeter TimberMaster...
- Page 7 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Protimeter TimberMaster Page 7...
- Page 8 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 8 Protimeter TimberMaster...
- Page 9 5 sec. Turn off time can be set by pressing the button, and can be saved by pressing After you save this setting, the unit will exit to the measurement screen. Protimeter TimberMaster Page 9...
- Page 10 Remove the screw assembled to Ûx the battery lid on the back side of the unit Slide the battery lid downwards applying a little pressure with the thumb to open the battery compartment. Page 10 Protimeter TimberMaster...
- Page 11 19cm x 6.5cm x 3.5cm (7.5” x 2.5” x 1.4”) Gross Weight (without Battery) ~228g Maximum Needle Depth For WME pins: 0.4” (10mm) Buzzer Audible buzzer for key tone and measurement indication, user conÛgurable Regulatory Compliance CE, RoHS, ETL Protimeter TimberMaster Page 11...
- Page 12 15857 USA Priorswood Road Taunton, TA2 8QY, UK T: +1 814-834-9140 T: +44 1823 335 200 www.protimeter.com www.amphenol-sensors.com Amphenol Copyright ® 2018 Amphenol Thermometrics, Inc. All rights reserved. Protimeter TimberMaster® is a registered Advanced Sensor s trademark of Amphenol Thermometrics, Inc.
