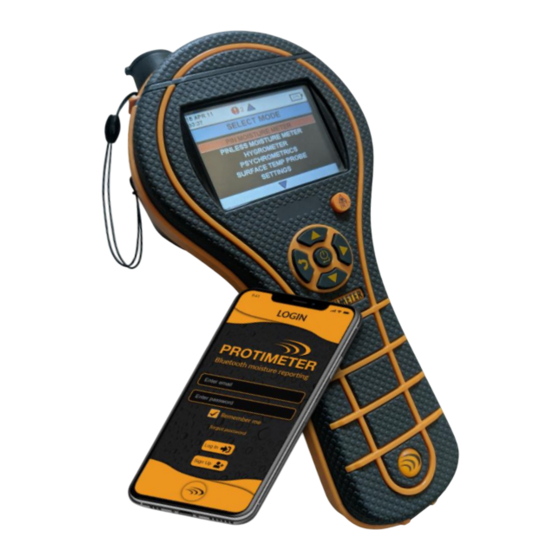

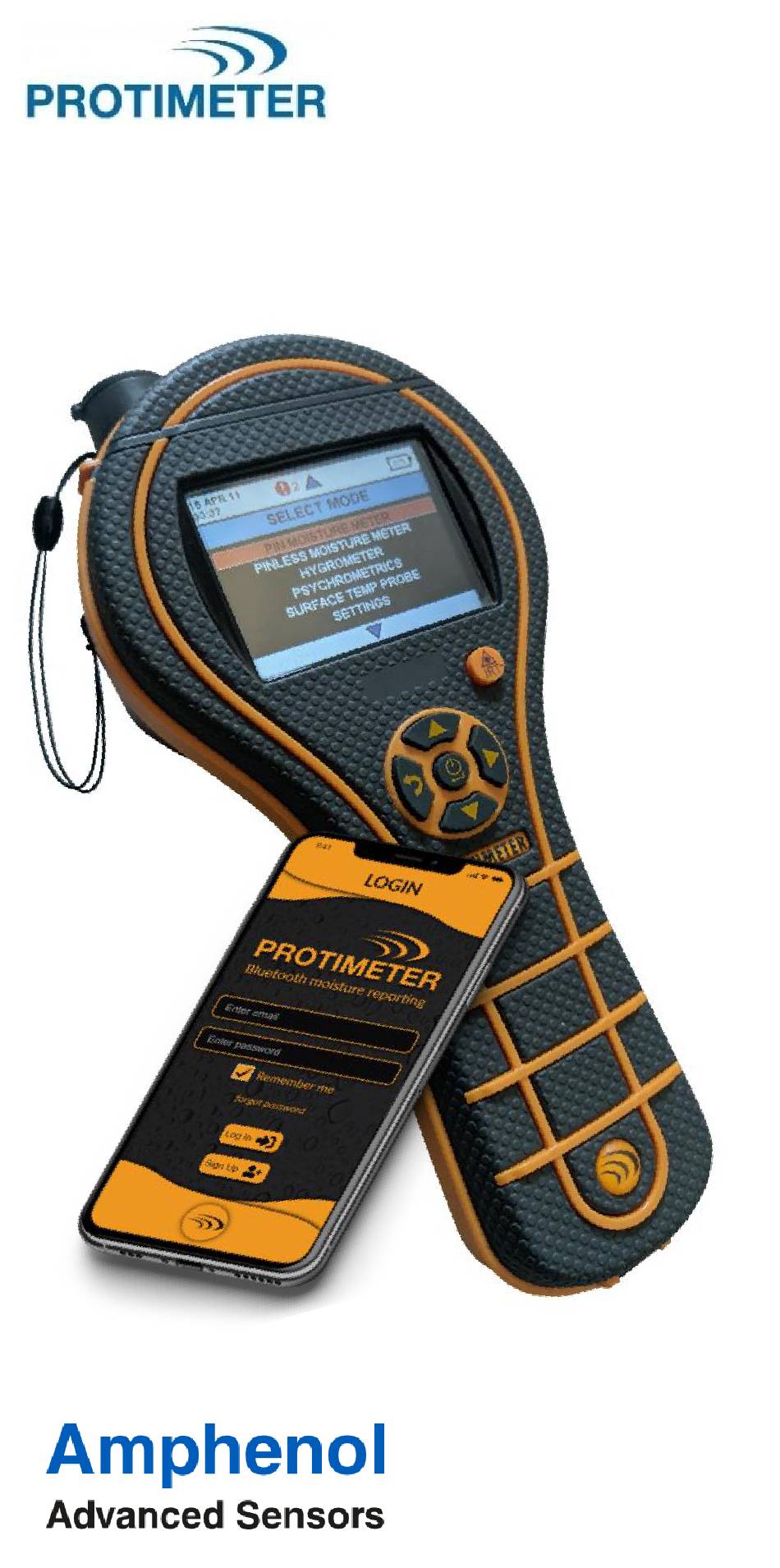

- Page 1 MMS3 INS9800 INSTRUCTION MANUAL INS9800 Rev B SEP 2024...
- Page 3 Quick start guide Before getting started, the batteries should be installed in the compartment. Functions of Keys Power Press to turn ON the device. Press and hold / long press to turn OFF the device. Press to select from the menu. UP / Increment Navigate up through menu.
-
Page 4: Table Of Contents
Contents Introduction Safety Considerations Product Components and accessories 3.1. Switching the MMS3 On and Off MMS3 Modes 4.1. Pin moisture meter-selection and use 4.1a Using auxiliary deep wall moisture probes in measure mode 4.1b Detecting hygroscopic salts 4.2. Pinless moisture meter – selection and use 4.3. - Page 5 Contents 4.7m USB communication Instructions – selection and use About – Selection and use System behaviour during low battery System errors Diagnostic procedure guidelines Care and maintenance Technical Specifications Operating conditions Measurement Specifications 9.2a Humidity Measurement 9.2b Moisture Measurement Physical Specifications 9.3a Power 9.3b Size (W x H x D) 9.3c Gross weight...
-
Page 6: Introduction
MMS3 Instruction Manual 1.Introduction The Protimeter Moisture Measurement System3 (Protimeter MMS3) is a powerful and versatile instrument for measuring and diagnosing dampness in buildings and building materials. This product enables building surveyors and other practitioners to measure moisture levels of building elements such as walls, floors and building environments simply by switching between the five different modes of operation. -
Page 7: Product Components And Accessories
MMS3 Instruction Manual • Use only laser pointers meeting the following criteria: Labelled with FDA certification stating “DANGER: Laser Radiation” for Class 3R lasers or “CAUTION: Laser Radiation” for Class 2 lasers. Classified as Class 2 or 3R according to the label. -
Page 8: Switching The Mms3 On And Off
MMS3 instruction Manual USB socket: - This is for connection to a PC when using the optional MMS3 logging software as well as to upgrade the device firmware. • The Hygrostick (POL4750), Quikstick (POL8750) and Short Quikstick (POL8751) probes measure relative humidity (%RH) and ambient air temperature in rooms or materials. -
Page 9: Mms3 Modes
BATTERY LOW 4. MMS3 Modes The Protimeter MMS3 can be used to detect and measure moisture in non-conductive solid materials such as wood, drywall and masonry. The MMS3 can measure the different parameters in building... -
Page 10: Using Auxiliary Deep Wall Moisture Probes In Measure Mode
Note: The MMS3 has the capability to show %MC value for 8 wood types. When the instrument is in Pin Moisture Meter mode, by default it displays WME WOODTYPE A (see the Protimeter wood calibration chart) Use the up and down buttons to navigate between different wood types. -
Page 11: Detecting Hygroscopic Salts
Electrode. Detecting Hygroscopic Salts 4.1b The Protimeter MMS3 instrument can be used as a basic salts detector when used with the moisture probe, filter papers and distilled water (not included). Moisten the filter paper with the water and take a reference reading across it with the moisture probe. - Page 12 MMS3 Instruction Manual When holding the meter at the bottom, away from any Note: objects, it should not show any reading. As reliable readings are obtained only if the sensor bulge is in direct contact with the surface, the Search mode is not suitable for surveying textured finishes.
-
Page 13: Hygrometer - Selection And Use
Navigate to SELECT MODE -> HYGROMETER and press to select the Hygrometer mode. To use the Protimeter MMS3 as a Hygrometer connect the Hygrostick, Quikstick or Short Quikstick probe into probe socket behind, either directly or indirectly with the extension lead. -
Page 14: Psychrometric - Selection And Use
MMS3 Instruction Manual Relative humidity and temperature measurements are made with the Hygrostick, Quikstick or Short Quikstick probe, and the MMS3 instrument uses these values to calculate a range of psychometric readings. When using the MMS3 to measure the conditions in air, the humidity probe is normally connected directly to the instrument. -
Page 15: Dew Point
MMS3 Instruction Manual Dew point 4.4a Navigate to SELECT MODE -> PSYCHROMETRICS -> DEW POINT and press to get the Dew Point reading. Grains per Pound / grams per Kilogram 4.4b Navigate to SELECT MODE -> PSYCHROMETRICS -> GRAMS PER KILOGRAM/GRAINS PER POUND and press to get the Specific Humidity reading. -
Page 16: Condensator Mode
MMS3 Instruction Manual 4.5 Condensator mode The Condensator Mode enables the user to assess the risk of condensation occurring on surfaces or to confirm whether or not condensation is present on a surface. The MMS3 can be used as a Condensator using two modes: Surface Temperature probe (contact based)- 4.5a... -
Page 17: Logging - Selection And Use
Keypad or through a PC using MMS3 Logging Software or with the Protimeter App after connecting through BLE refer “Set Logging Parameters”. After the logging parameters are saved, logging starts after the START AFTER minutes have elapsed. -
Page 18: Settings - Selection And Use
Software or through the App or when the instrument is turned OFF. 4.7 Settings – selection and use The Protimeter MMS3 instrument has a range of user- selectable features. Navigate to SELECT MODE -> SETTINGS and press to configure the MMS3. The... -
Page 19: Bluetooth
4.7b MMS3 provides user the option to connect the device with the Protimeter app through BLE. Only while connecting to the app the BLE needs to be active and hence an option is available to turn the BLE ON and OFF saving battery while in regular use. -
Page 20: Custom
MMS3 Instruction Manual Custom 4.7d MMS3 supports custom Psychrometrics option to display different Psychrometric parameters in single screen. Parameters to be displayed can be set in Custom settings screen. Navigate to SELECT MODE -> SETTINGS -> CUSTOM and press to configure the options. -
Page 21: Date And Time
MMS3 Instruction Manual Date and Time 4.7f Navigate to SELECT MODE -> SETTINGS -> DATE AND TIME and press to change the device date and time. Use to navigate to the required field. Then, use to increment / decrement the value in that box. -
Page 22: Set Brightness
MMS3 Instruction Manual Set Brightness 4.7h Navigate to SELECT MODE -> SETTINGS -> SET BRIGHTNESS and press to set the Brightness level. to navigate between the different brightness levels (1 to 10) and press to set the desired brightness. (Brightness level 5 is the default setting.) Outdoor mode: Outdoor mode can be used when operating the device... -
Page 23: Buzzer On/Off
MMS3 Instruction Manual Buzzer On/Off 4.7i This option is used to switch the Buzzer ON/OFF. When the Buzzer is ON: • Any key press will make a beep sound. • In WME/Aquant mode, a RISK/WET condition will be alerted. • Instrument turn OFF will be indicated Navigate to SELECT MODE ->... -
Page 24: Set Logging Parameters
MMS3 Instruction Manual To verify if the pin moisture is in calibration, select pin moisture from the calibration menu. Make sure that the WME cap is closed and no WME probe is connected to the device. Press to start the check. The calibration will be auto-checked and the result will be displayed. -
Page 25: Clear Logged Data
MMS3 Instruction Manual The highlighted number can be changed by pressing . Pressing will take the cursor to the next number which will be highlighted and then can be changed. Once all the numbers are set as per need press to start the logging. -
Page 26: Usb Communication
MMS3 Instruction Manual USB communication. 4.7m MMS3 can be configured to work with PC software or as Mass storage device. Navigate to SELECT MODE -> SETTINGS -> USB CONNECTION and press to set the USB connection type. Use to navigate between the PC Software and File Viewer and press to set the desired Option. -
Page 27: System Behaviour During Low Battery
MMS3 Instruction Manual 5. System behaviour during low battery MMS3 indicates that the battery is low by blinking the battery level indicator in the right corner of the display header. MMS3 restricts high power operations during low battery condition to avoid any system misbehaviour and the user will be alerted. -
Page 28: Diagnostic Procedure Guidelines
(from moisture- a safe air-dry related deterioration or decay) in condition? buildings. When the Protimeter MMS3 moisture meter modes are selected, measured values are identified as DRY, AT RISK or Is the surface... - Page 29 MMS3 Instruction Manual Item 1: The Search and Measure modes (pinless and pin) should be used in combination to map out the extent of a moisture problem and to distinguish between surface and sub-surface moisture. The profile of readings obtained will give insight into the potential cause (e.g., condensation, lateral ingress or rising dampness) of a moisture-related problem.
-
Page 30: Care And Maintenance
In summary, effective dampness diagnosis is a process that draws on the knowledge and expertise of the surveyor. The Protimeter MMS3 kit enables the user to investigate moisture levels in materials and environments from various perspectives that, in turn, permits a more thorough and reliable judgment as to the cause of dampness related problems. -
Page 31: Technical Specifications
MMS3 Instruction Manual 9. Technical specifications 9.1 Operating conditions Operating Temperature range Instrument only 0°C -50°C Humidity 0 to 95% non-condensing 9.2 Measurement specifications umidity Measurement. 9.2a H Hygrostick Data (Nominal) Relative humidity Range: 30%-40% RH, Accuracy ±3% RH at 68°F (20°C) Range: 41%-98% RH, Accuracy ±2% RH at 68°F (20°C) Temperature Range: 14°F to 122°F (-10°C - 50°C), Accuracy... -
Page 32: Moisture Measurement
MMS3 Instruction Manual Measurement. 9.2b Moisture For Integrated and remote pin probes Integrated Pins Strong and reliable integrated WME pins with cap No effect on readings by surface moisture Pin (%WME) 6% to 100%, reading over 30% are relative. Non-invasive (RF) Up to ¾”... -
Page 33: Buzzer
Samples with Date and Time stamp: store in device up to 10000 Samples Store results of interest in cloud from live data stream on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface. INS9800... - Page 34 T: +1 814-834-9140 Amphenol Thermometrics (U.K.) Limited Crown Industrial Estate Priorswood Road Taunton, TA2 8QY, UK T: +44 1823 335 200 www.protimeter.com www.amphenol-sensors.com ©2021 Amphenol Thermometrics, Inc. All rights reserved. Technical content subject to change without notice. INS9800 Rev B SEP 2024...
