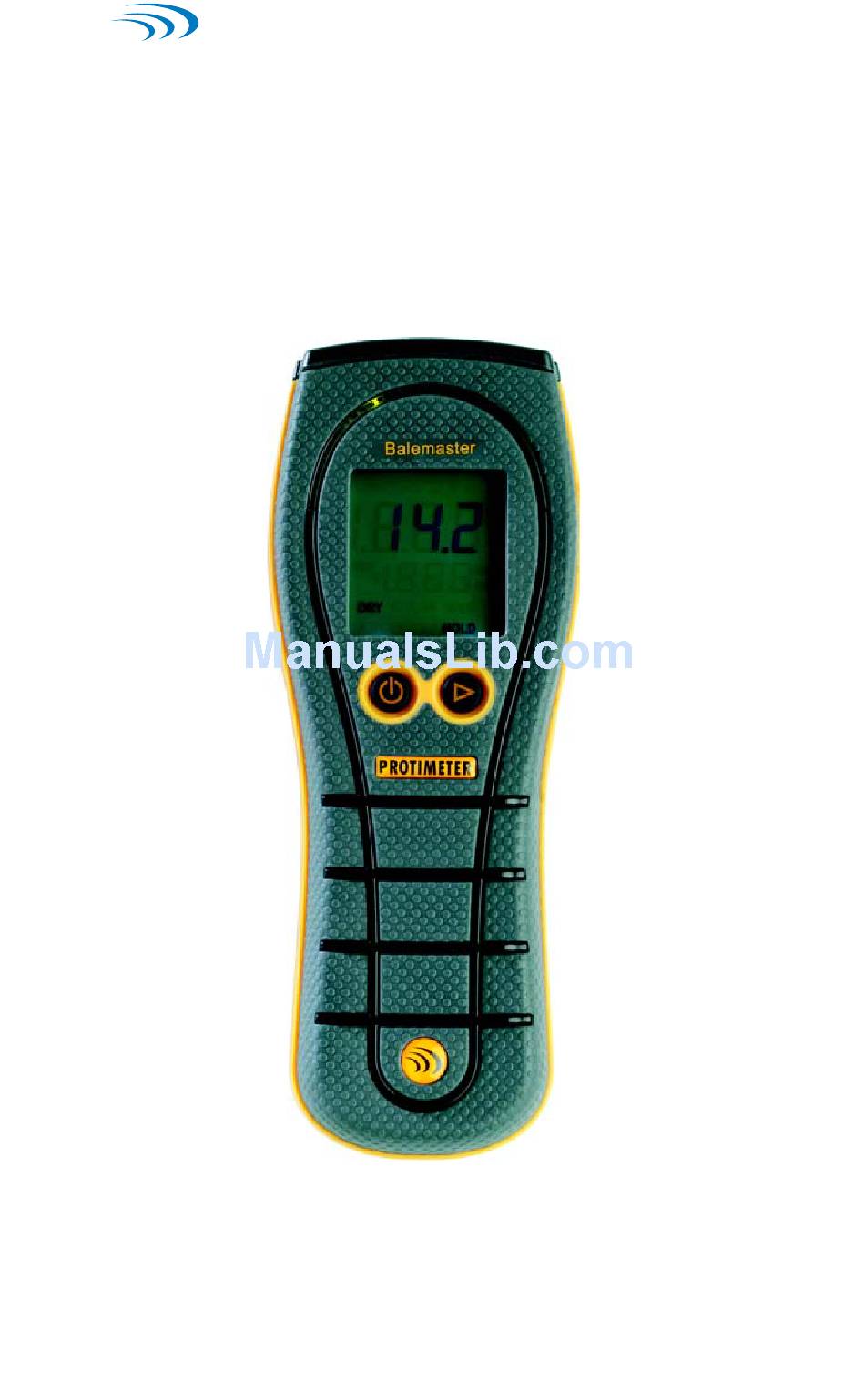

- Page 1 ® Protimeter BaleMaster GRN6165 PROTIMETER User Instructions BaleMaster (GRN6165) Protimeter Moisture Meter Amphenol AAS-INS6165, Rev. A August 2017 Advanced Sensors...
- Page 2 2 Introduction The Protimeter BaleMaster is a conductivity moisture meter designed for measuring moisture level of baled products such as straw and hay. The instrument is calibrated for wheat straw and may be used to take relative measurements in other baled products.
- Page 3 OFF automatically. 4 Calibration Check Calibration can be checked using the Protimeter Calcheck device (Part # BLD5086) and a 2-pin moisture probe (Part # BLD5079), connected via the Bale probe socket. Correctly calibrated BaleMaster instruments register a value in the range 14.0 –...
- Page 4 7 Operating BaleMaster Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Page 4 Protimeter BaleMaster GRN6165...
- Page 5 The numeric measurement and color LED will be shown, as well as “DRY” (green) or “AT RISK” (yellow) or “WET” (red), based on the measurement shown. 8.5-15 DRY (Green), 15.1-19.5 AT RISK (Yellow), 19.6-36.8 WET (Red) Protimeter BaleMaster GRN6165 Page 5...
- Page 6 Press and hold the button and switch on the unit by pressing . Hold both the buttons until the BaleMaster displays the version. Release buttons while it shows the version number. The unit enters Settings Mode. Page 6 Protimeter BaleMaster GRN6165...
- Page 7 If the unit detects no key press for 2 seconds in the Settings screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, it will save the setting and move the screen to the next setting. Protimeter BaleMaster GRN6165 Page 7...
- Page 8 If the unit detects no key press for 2 seconds in the Settings screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 8 Protimeter BaleMaster GRN6165...
- Page 9 If the unit detects no key press for 2 seconds in the Settings screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, it will save the setting and move the screen to the next setting. Protimeter BaleMaster GRN6165 Page 9...
- Page 10 5 sec. Turn off time can be set by pressing the button, and can be saved by pressing After you save this setting, the unit will exit to the measurement screen. Page 10 Protimeter BaleMaster GRN6165...
- Page 11 Slide the battery lid downwards, applying a slight pressure with the thumb to open the battery compartment. Remove and replace the battery. Care must be taken to ensure that the polarity is correct as below. Protimeter BaleMaster GRN6165 Page 11...
- Page 12 Operating temperature range: 0°C to 50°C Humidity: 0 to 90% RH, non-condensing Measurement Specifications: Protimeter Balemaster (Part# GRN6165) consists of: BaleMaster instrument (Part# 6165) and Bale probe (GRN6148) The Balemaster instrument is calibrated for Wheat Straw Measurement Range: 8.5 – 36.8% mc...
- Page 13 MODEL: GRN6165 POL6148 Bale Probe Meter Protimeter BaleMaster GRN6165 Page 13...
- Page 14 Copyright © 2017 Amphenol Thermometrics, Inc. All rights reserved. ® Protimeter BaleMaster is a registered trademark of Amphenol Thermometrics, Inc. Amphenol Thermometrics, Inc. Amphenol 967 Windfall Road St. Marys, Pennsylvania 15857, USA Advanced Sensors Page 14 Protimeter BaleMaster GRN6165...
