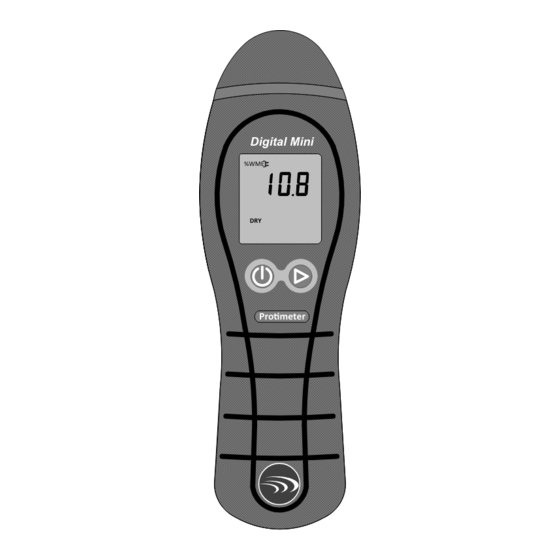

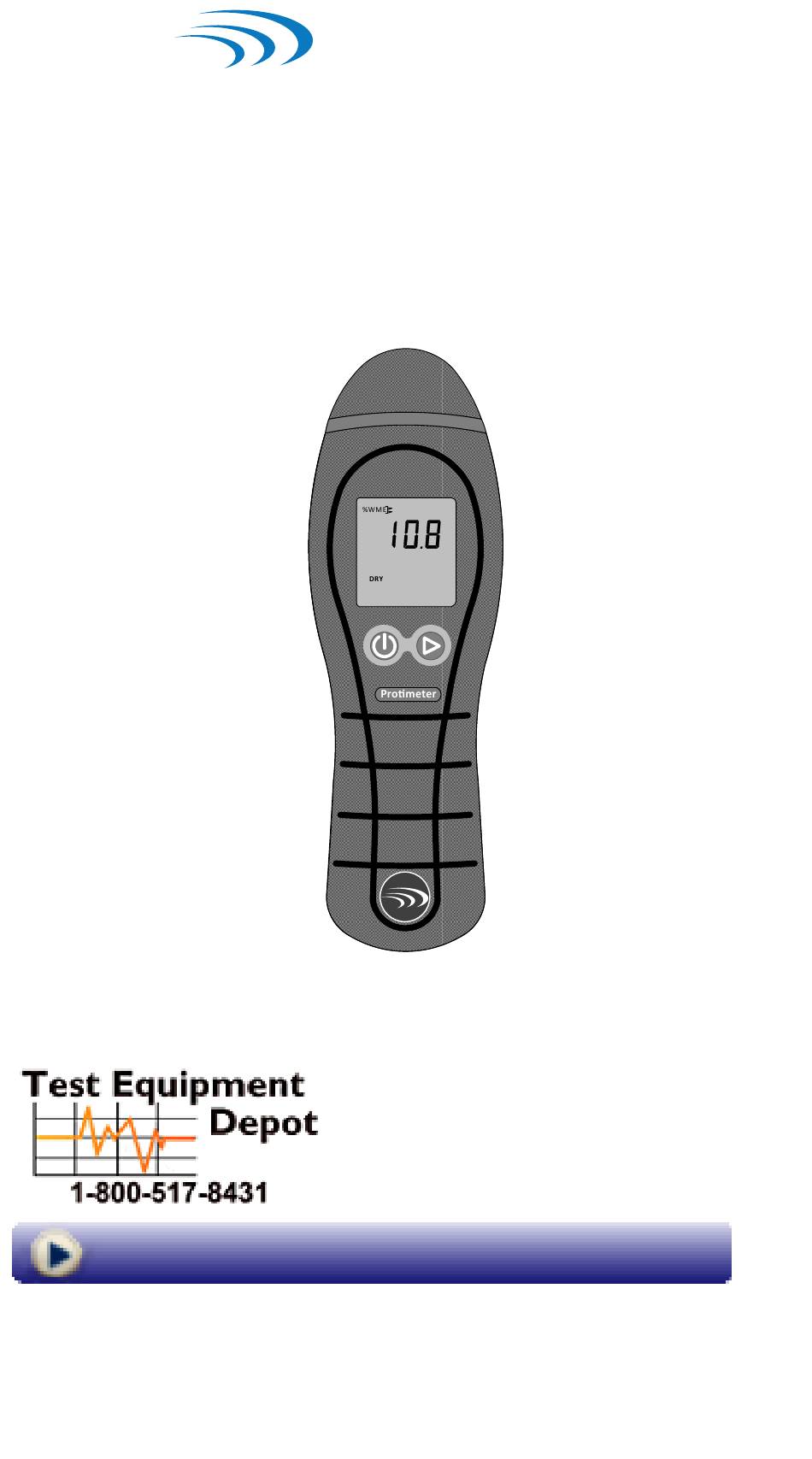

- Page 1 PROTIMETER Digital Mini Protimeter Moisture Meter Digital Mini Instruction Manual 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Amphenol INS5702-EN Rev. B Advanced Sensors May 2014...
-
Page 3: Safety Considerations
Heavy Duty Pin Probe, Deep Wall Probes, a Hammer Electrode (optional) or an EIFS probe (optional). Remove the needle cap from the top of the Digital Mini and press to switch it on. Protimeter Digital Mini Page 1... - Page 4 Hold them firmly against the base of the holes and take the reading. The optional Protimeter Hammer Electrode can also be used to make measurements deep into hard and softwoods.
-
Page 5: Instrument Calibration Check
A calibration check device (Calcheck) is supplied with the instrument for checking the Measure mode calibration. Hold the Calcheck across the electrode pins as shown. A correctly calibrated Digital Mini will read 18.2 ±1.0. Contact your supplier if the instrument is reading incorrectly. Protimeter Digital Mini Page 3... -
Page 6: Reference Mode
See page 6 for further information. 7 Operating Digital Mini Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Page 4 Protimeter Digital Mini... - Page 7 The numeric measurement and color LED will be shown as well as the “DRY” (green) or “AT RISK” (yellow) or “WET” (red), based on the measurement shown. 7-16.9 DRY (Green), 17-19.9 AT RISK (Yellow), 20-99.9 WET (Red) Protimeter Digital Mini Page 5...
- Page 8 Press and hold the button and switch on the unit by pressing . Hold both the buttons until the Digital Mini displays the version. Release both buttons while it shows the version number. The unit enters Settings Mode. Page 6 Protimeter Digital Mini...
- Page 9 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Protimeter Digital Mini Page 7...
- Page 10 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 8 Protimeter Digital Mini...
-
Page 11: Backlight Settings
If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Protimeter Digital Mini Page 9... - Page 12 5 sec. Turn off time can be set by pressing the button, and can be saved by pressing After you save this setting, the unit will exit to the measurement screen. Page 10 Protimeter Digital Mini...
- Page 13 Holding / Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A text “HOLD” will be displayed on the screen. Protimeter Digital Mini Page 11...
-
Page 14: Battery Replacement
Slide the battery lid downwards applying a little pressure with the thumb to open the battery compartment. Remove the battery, and replace. Care must be taken to ensure that the polarity is correct as below. Place the battery inside the compartment. Page 12 Protimeter Digital Mini... - Page 15 19cm x 6.5cm x 3.5cm (7.5" x 2.5" x 1.4") Gross Weight (without battery) ~228g Maximum Needle Depth For WME pins: 0.4" (10mm) Buzzer Audible buzzer for key tone and measurement indication, user configurable Regulatory Compliance CE, RoHS, ETL Protimeter Digital Mini Page 13...
- Page 16 Page 14 Protimeter Digital Mini...
- Page 17 Protimeter Digital Mini Page 15...
- Page 18 Page 16 Protimeter Digital Mini...
- Page 20 Contact Information: 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Amphenol Copyright © 2014 Amphenol Thermometrics, Inc. 967 Windfall Road Advanced Sensors St. Marys, Pennsylvania 15857, USA...
