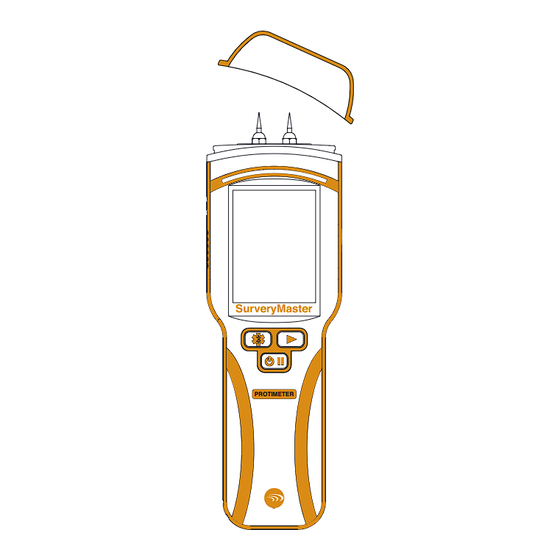

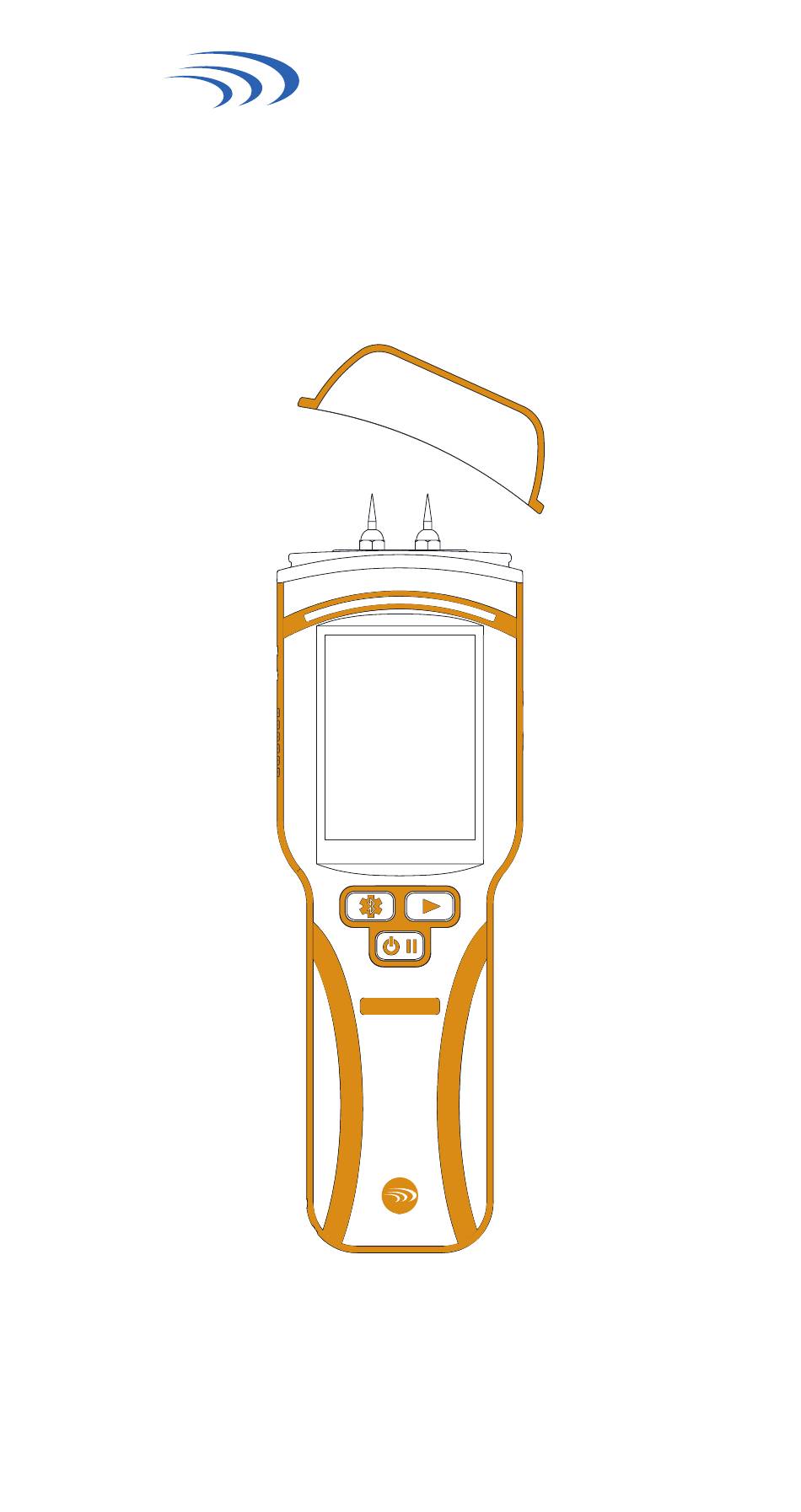

- Page 1 PROTIMETER ® Surveymaster Protimeter Dual-Function Moisture Meter SurveryMaster PROTIMETER Instruction Manual Amphenol INS5375 Rev. A Jun 2023 Advanced Sensors...
- Page 2 Copyright © 2023 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA...
-
Page 3: Safety Considerations
Heavy Duty Pin Probe, Deep Wall Probes, a Hammer Electrode (optional) or an EIFS probe (optional). Remove the needle cap from the top of the Surveymaster and press to switch it on. Protimeter Surveymaster Page 1... - Page 4 Probe pins onto the surface at the chosen point of measurement. Additional accessories can be purchased, including deep wall probes. The Protimeter Hammer Electrode can also be used to make measurements deep into hard and softwoods. Note: Deep Wall Probes may be used to investigate high readings that may have been obtained in Search mode.
- Page 5 Note: Ensure that no auxiliary probes are connected to the device Before a calibration check is run. Connecting any probe to the right side Jack may cause interference in the calibration check value. Protimeter Surveymaster Page 3...
-
Page 6: Reference Mode
It is advised to do user calibration of the device in REL mode before a study is started. Refer the operations section for details. 8 Reference Mode In both Pin and Search mode, Protimeter's patented feature “Reference Mode” can be used. Measure the material until the meter’s reading is stable then press for 2 seconds. - Page 7 The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Mode Change: Press mode button to change to the REL (Search) mode from WME (Pin), and vice versa. WME (pin) REL (Search) Protimeter Surveymaster Page 5...
- Page 8 “DRY” (green) or “AT RISK” (yellow) or “WET” (red), based on the measurement shown. 7-16.9 DRY (Green), 17-19.9 AT RISK (Yellow), 20-99.9 WET (Red) 70-169 DRY (Green), 170-199 AT RISK (Yellow), 200-999 WET (Red) Page 6 Protimeter Surveymaster...
- Page 9 To return to the normal measurement mode, press again. Settings: Press the button to enter in to settings. Press again to return to measurement The device enters in to language settings as a first setup screen. Protimeter Surveymaster Page 7...
-
Page 10: Setting Up Language
Buzzer ON/OFF Settings: Pressing key from the language settings will move on to Buzzer setting. press to toggle between on and off. Choose and go to the next setting by pressing Page 8 Protimeter Surveymaster... - Page 11 Auto Off Time Settings: When Auto Off is set, the unit will shut down automatically at a specified time between 1 and 10 minutes, if there is no key press detected within the set time. Protimeter Surveymaster Page 9...
- Page 12 ON or OFF. When it is ON, the moisture condition will be displayed on the screen. When it is OFF, no indication is displayed on screen. Pressing toggles the state from Off to On and vice versa. Page 10 Protimeter Surveymaster...
- Page 13 When the device is in pin mode measurement (WME mode) press and hold keys. Device will check the calibration internally and display the reading along with the pass fail result. press and hold press key to exit the calibration check. Protimeter Surveymaster Page 11...
- Page 14 REL mode. unit calibrates the REL mode considering the environmental offset and displays the value read for the situation. press key to exit the calibration. page12 Protimeter Surveymaster...
- Page 15 100% Holding / Freezing the Reading: While measuring, if the reading needs to be frozen for any observation, press during measurement. A symbol will be displayed on the screen. Protimeter Surveymaster Page 13...
-
Page 16: Battery Replacement
Remove the battery lid to open the battery compartment. Remove the batteries, and replace. Care must be taken to ensure that the polarity is correct as below. Place the battery inside the compartment. Page 14 Protimeter Surveymaster... -
Page 17: Specification
6 to 100% (readings over 30% are relative) Non-Invasive moisture measurement: Measurement depth - up to 3/4" (19mm) deep, 60 to 999, no effect on reading by surface moisture Regulatory Compliance CE, RoHS, ETL, UKCA, FCC Protimeter Surveymaster Page 15... - Page 18 Amphenol Thermometrics, Inc. 967 Windfall Road St. Marys, Pennsylvania 15857, USA St.MarysCC@amphenol-sensors.com +1 814-834-9140 U.K. Amphenol Thermometrics (U.K.) Ltd. Crown Industri a l Estate Priorswood Road Taunton, TA2 8QY, UK Taunton.cc@amphenol-sensors.com +44.1823.335.200. www.protimeter.com www.amphenol-sensors.com Amphenol Advanced Sensors INS5375 Rev. A, Jun 2023...
