Summary of Contents for Protimeter MMS3
- Page 1 MMS3 INS9800 INSTRUCTION MANUAL INS9800 Rev A OCT 2021...
- Page 3 Quick start guide Before getting started, the batteries should be installed in the compartment. Functions of Keys Power Press to turn ON the device. Press and hold / long press to turn OFF the device. Press to select from the menu. UP / Increment Navigate up through menu.
-
Page 4: Table Of Contents
Contents Introduction Safety Considerations Product Components and accessories 3.1. Switching the MMS3 On and Off MMS3 Modes 4.1. Pin moisture meter-selection and use 4.1a Using auxiliary deep wall moisture probes in measure mode 4.1b Detecting hygroscopic salts 4.2. Pinless moisture meter – selection and use 4.3. - Page 5 Contents 4.7m USB communication Instructions – selection and use About – Selection and use System behaviour during low battery System errors Diagnostic procedure guidelines Care and maintenance Technical Specifications Operating conditions Measurement Specifications 9.2a Humidity Measurement 9.2b Moisture Measurement Physical Specifications 9.3a Power 9.3b Size (W x H x D) 9.3c Gross weight...
-
Page 6: Introduction

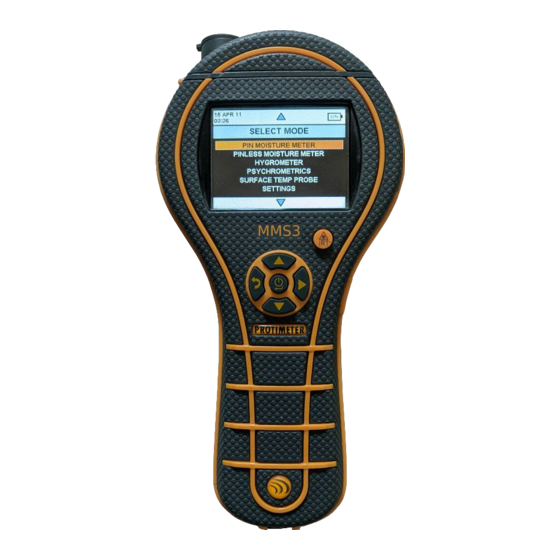

MMS3 Instruction Manual 1.Introduction The Protimeter Moisture Measurement System3 (Protimeter MMS3) is a powerful and versatile instrument for measuring and diagnosing dampness in buildings and building materials. This product enables building surveyors and other practitioners to measure moisture levels of building elements such as walls, floors and building environments simply by switching between the five different modes of operation. -
Page 7: Product Components And Accessories
(contact and non-contact method). To measure all the above-mentioned parameters, MMS3 uses different sensors, along with a variety of accessories for convenient measurements. The following external connections are found on the... -
Page 8: Switching The Mms3 On And Off
MMS3 instruction Manual USB socket: - This is for connection to a PC when using the optional MMS3 logging software as well as to upgrade the device firmware. The Hygrostick (POL4750), Quikstick (POL8750) • and Short Quikstick (POL8751) probes measure relative humidity (%RH) and ambient air temperature in rooms or materials. -
Page 9: Mms3 Modes
BATTERY LOW 4. MMS3 Modes The Protimeter MMS3 can be used to detect and measure moisture in non-conductive solid materials such as wood, drywall and masonry. The MMS3 can measure the different parameters in building... -
Page 10: Using Auxiliary Deep Wall Moisture Probes In Measure Mode
RISK Yellow ≥20 MC%WME value Note: The MMS3 has the capability to show %MC value for 8 wood types. When the instrument is in Pin Moisture Meter mode, by default it displays WME WOODTYPE A (see the Protimeter wood calibration chart) -
Page 11: Detecting Hygroscopic Salts
Electrode. Detecting Hygroscopic Salts 4.1b The Protimeter MMS3 instrument can be used as a basic salts detector when used with the moisture probe, filter papers and distilled water (not included). Moisten the filter paper with the water and take a reference reading across it with the moisture probe. - Page 12 Pinless Moisture Meter mode is selected, the device will display the surface moisture in terms of Wood Moisture Place the MMS3 on the surface, but do not slide it. Note: Sliding will wear out the back of the meter, as well as possibly mark the wall.
-
Page 13: Hygrometer - Selection And Use
≥999 In Search mode, the device has the capability to give comparative measurement. Note: If metal is present below the surface, the MMS3 may give a false positive. Comparative measurement helps in measuring whether the surface moisture/material is wetter or dryer than the Reference surface/ material. -
Page 14: Psychrometric - Selection And Use
Note: For best response time, do not store the MMS3 in excessively hot or cold locations, such as in a vehicle. 4.4 Psychrometric – Selection and use Navigate to SELECT MODE ->... -
Page 15: Dew Point
MMS3 Instruction Manual Dew point 4.4a Navigate to SELECT MODE -> PSYCHROMETRICS -> DEW POINT and press to get the Dew Point reading. 17 FEB 21 09:58 DEW POINT 13.3 C DEW POINT TEMP 43.3 % 26.8 C QUIKSTICK SNO:... -
Page 16: Condensator Mode
The Condensator Mode enables the user to assess the risk of condensation occurring on surfaces or to confirm whether or not condensation is present on a surface. The MMS3 can be used as a Condensator using two modes: Surface Temperature probe (contact based)- 4.5a... -
Page 17: Logging - Selection And Use
Continuous logging is used to sample and store data continuously. Continuous logging is enabled either by setting logging parameters through the Keypad or through a PC using MMS3 Logging Software or with the Protimeter App after connecting through BLE refer “Set Logging Parameters”. After the logging parameters are saved, logging starts after the START AFTER minutes have elapsed. -
Page 18: Settings - Selection And Use
4.7 Settings – selection and use The Protimeter MMS3 instrument has a range of user- selectable features. Navigate to SELECT MODE -> SETTINGS and press to configure the MMS3. The following options are available for configuring: Language 4.7a The Protimeter MMS3 comes with pre-configured languages. -
Page 19: Bluetooth
CUSTOM DEEP MODE DATE AND TIME Note: MMS3 will auto turn on Bluetooth during power on, if the Bluetooth setting was on during the last power off. The MMS3 will auto turn off Bluetooth if no connection is established or active for more than 2 mins. -
Page 20: Custom
MMS3 supports custom Psychrometrics option to display different Psychrometric parameters in single screen. Parameters to be displayed can be set in Custom settings screen. Navigate to SELECT MODE -> SETTINGS -> CUSTOM and press to configure the options. Use to navigate between parameters and press to select. -
Page 21: Date And Time
MONTH YEAR Auto off 4.7g The MMS3 will switch OFF automatically after auto switch off time if no activity/key press is observed. Navigate to SELECT MODE -> SETTINGS -> AUTO OFF and press to configure the Auto off time. Use... -
Page 22: Set Brightness
Note: The selected outdoor mode brightness level will be remembered by the device until power cycle only. Outdoor mode and auto-logging are mutually exclusive. MMS3 Instruction Manual INS9800 Buzzer On/Off 4.7i... -
Page 23: Buzzer On/Off
CALIBRATION LOGGING USB CONNECTION Calibration 4.7j MMS3 provides an automatic calibration to the user for non-invasive measurement as well as a calibration verification for pin moisture measurement. Navigate to SETTINGS->CALIBRATION-> and then press choose the option by selecting using 17 FEB 21... -
Page 24: Set Logging Parameters
PRESS LEFT TO RETURN Set logging parameters. 4.7k To initiate continuous logging using MMS3, there are three options. User can configure a continuous logging using the unit itself getting in to logging and making some key presses. The user can use the App or software for the same which will be an easy method. -
Page 25: Clear Logged Data
(1 to 999). • Job Number: 1 to 255 Clear logged data. 4.7l MMS3 has an option to erase the logged data in the device. Navigate to SELECT MODE -> SETTINGS -> LOGGING -> CLEAR DATA and press . Then it will display confirmation message asking for erasing data. -
Page 26: Instructions - Selection And Use
MMS3 can be configured to work with PC software or as Mass storage device. Navigate to SELECT MODE -> SETTINGS -> USB CONNECTION and press to set the USB connection type. Use to navigate between the PC Software and File Viewer and press to set the desired Option. -
Page 27: System Behaviour During Low Battery
5. System behaviour during low battery MMS3 indicates that the battery is low by blinking the battery level indicator in the right corner of the display header. MMS3 restricts high power operations during low battery condition to avoid any system misbehaviour and the user will be alerted. - Page 28 (from moisture- a safe air-dry related deterioration or decay) in condition? buildings. When the Protimeter MMS3 moisture meter modes are selected, measured values are identified as DRY, AT RISK or Is the surface Dew point is the temperature at...
- Page 29 RH from 40% to 60%, so there may be cause to investigate environments that register RH values outside this range. MMS3 Instruction Manual INS9800 Item 3: Two hygroscopic salts, chlorides and nitrates, may build up on the surface of walls where rising dampness or wicking occurs.
-
Page 30: Care And Maintenance
• When not in use, keep the MMS3 instrument and its accessories in the factory carry case. Store the case in a stable, dust-free environment and keep it out of direct sunlight. -
Page 31: Measurement Specifications
Operating Temperature range Instrument only 0°C -50°C Humidity 0 to 95% non-condensing 9.2 Measurement specifications umidity Measurement. 9.2a H Hygrostick Data (Nominal) Relative humidity Range: 30%-40% RH, Accuracy ±3% RH at 68°F (20°C) Range: 41%-98% RH, Accuracy ±2% RH at 68°F (20°C) Temperature Range: 14°F to 122°F (-10°C - 50°C), Accuracy ±0.6°F(±0.3°C) -
Page 32: Moisture Measurement
MMS3 Instruction Manual Measurement. 9.2b Moisture For Integrated and remote pin probes Integrated Pins Strong and reliable integrated WME pins with cap No effect on readings by surface moisture Pin (%WME) 6% to 100%, reading over 30% are Non-invasive (RF) Up to 3/4"... -
Page 33: Buzzer
Samples with Date and Time stamp: store in device upto 10000 Samples Store results of interest in cloud from live data stream on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface. INS9800... - Page 34 T: +1 814-834-9140 Amphenol Thermometrics (U.K.) Limited Crown Industrial Estate Priorswood Road Taunton, TA2 8QY, UK T: +44 1823 335 200 www.protimeter.com www.amphenol-sensors.com ©2021 Amphenol Thermometrics, Inc. All rights reserved. Technical content subject to change without notice. INS9800 Rev A OCT 2021...
