Lumineux Draycote Installation Instructions

Draycote
Emergency
Twin Spot Self-Test
1
READ THESE INSTRUCTIONS
THOROUGHLY BEFORE
INSTALLATION KEEP THESE
INSTRUCTIONS FOR
FUTURE REFERENCE.
IMPORTANT:
This product must be installed
by a qualified electrician or
competent person, and in
accordance with current building
and IET wiring regulations.

BOX CONTENTS

This lighting fixture has been properly
packed to avoid damage during
transit. Before commencing with the
installation carefully inspect the
4
luminaire to confirm there is no
damage. DO NOT INSTALL if any
damage has occurred to the fixture
or any of its components.
• Woodhead Emergency
• Instruction Manual

TOOLS REQUIRED

• Hole Saw
• Screwdriver
• Cable
A
Manby Business Park, Manby, Lincolnshire, LN11 8UT
G G
Lumineux is a B&T Associates Ltd company.
G

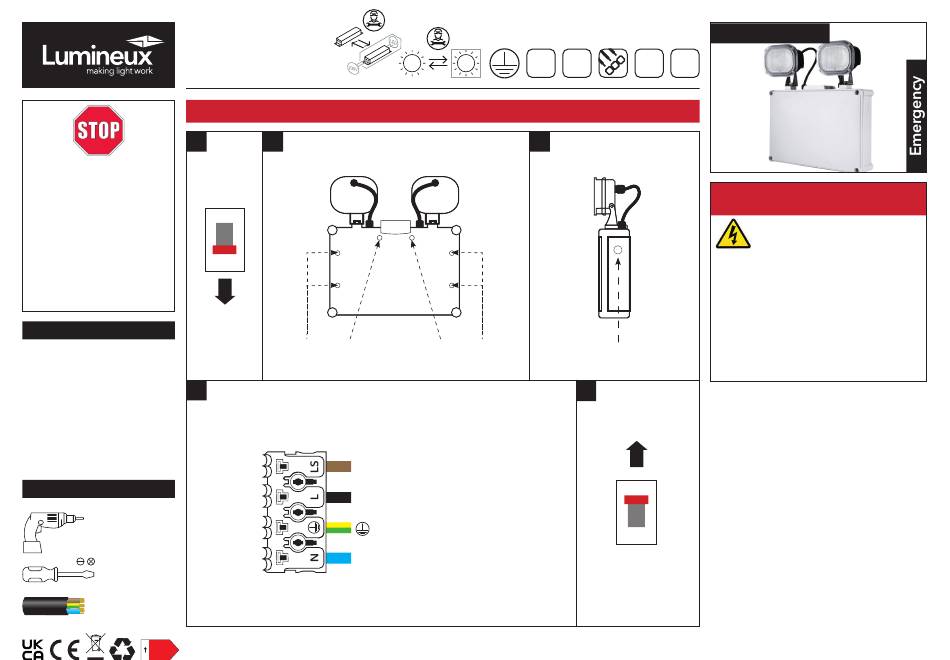

INSTALLATION INSTRUCTIONS
2
on
off
Mounting Holes
L - LIVE (SW) = Brown
PL - PERMANENT LIVE = Black
- EARTH = Green/Yellow
N - NEUTRAL = Blue
IP65
6000K
3
Mounting Holes
Cable entry knock-out
5
Technical Helpline: +44 (0)1507 328031
6W
Draycote
2 YR
5 YR
Battery
Warranty
Warranty
PLEASE READ THESE INSTRUCTIONS
BEFORE INSTALLATION.
WARNING: Risk of electric shock! Isolate
the mains power before proceeding.
• Turn off the mains power before performing
inspections, installation, or removal
• Verify that the supply voltage is correct by
comparing it with the luminaire label information
• It is the installers responsibility to ensure installation
is suitable for the total load of the luminaire(s). The
supply cable, fuses/circuit brakers must be correctly
rated for the electrical load and considering for any
transient inrush currents that may occur
• Do not perform insulation strength or resistance
tests on installed luminarie(s) connected
1. Disconnect mains supply
2. Remove centre front screw, push locking tabs, and
remove front cover
3. Mount housing to wall using fixing kit provided
4. Use required entry cable knock out and feed input
on
mains supply through hole
5. Connect mains to terminals as shown
6. Reconnect centre front screw to secure front cover,
off
reconnect mains supply when deemed safe
www.lumineux.co.uk
