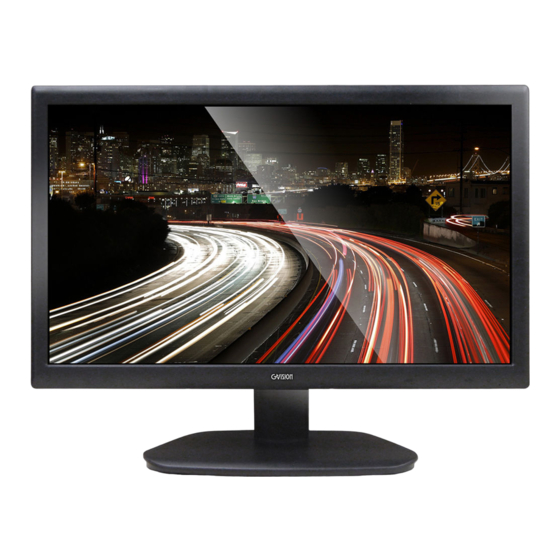

- Page 1 WWW.GVISION-USA.COM C22BD-A6-4000 USER’S MANUAL SECURITY CCTV MONITOR GVISION USA, INC 30398 Esperanza, Rancho Santa Margarita CA 92688 / 949.586.3338 / info@gvision-usa.com...
- Page 2 CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not supplied with this equipment, please contact GVISION. For all other cases, please use the power cord with the plug style that matches the power socket where the monitor is located.
- Page 3 Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
-
Page 4: Table Of Contents
1.2 Monitor Controller Button……………………………………………………………………………………….6 1.3 Remote Control……………………………………………………………………………………………………7 1.4 Select Input Source……………………………………………………………………………………………..7 1.5 OSD Menu………………………………………………………………………………………………………..8 1.5.1 Picture...…………………………………………………………………………………...……………...8 1.5.2 PC…………………………………………………………………………………………………………10 1.5.3 Sound…………………………………………...………………………………………………………..11 1.5.4 Setting…………………………………………………………………………………………………….12 Specifications…………………………………………………………………………………………………………...13 Dimensions…………………………………………………………………………………..…………...…....14 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 5: Controllers & Settings
PC AUDIO IN Audio Input for VGA Input channel BNC(CVBS) IN BNC Input for CVBS Source BNC(CVBS) Out BNC Looping output for CVBS Source 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 6: Monitor Controller Button
Switch a menu on OSD POWER Monitor Power On / Off LED Indicator Blue color: monitor on / Red color: monitor standby IR Receiver Remote controller receiver 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 7: Remote Control
► button to select input source on press monitor. ▲/▼ button to change input source and then press Press “INPUT”/► buttons to select input source on remote controller. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 8: Osd Menu
Choose between SD 4:3 and HD 16:9 aspect ratio. If analog images Aspect Ratio appear stretched use 4:3 scaling. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... - Page 9 Adjust color reproduction: choose between Warm/ User/ Cool/ Color Temperature Medium. In the “USER”, setting you have full control to alter the individual settings “Red:0-100, Green: 0-100, and Blue:0-100. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
- Page 10 Adjust the H-Position position of picture.value:0~100. Vertical Pos. Adjust the V-Position position of picture.value:0~100. Clock Adjust the Clock of picture.value:0~100. Phase Adjust the Phase of picture.value:0~100. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
-
Page 11: Sound
Select one of the presets (User, Sport, Movie, Music, Standard). Treble Adjust the Treble of picture.value:0~100. Bass Adjust the Bass of picture.value:0~100. Balance Adjust the Balance of picture. Value: -50 ~ +50. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 12: Setting
No Signal Standby Allows the user to select ON/OFF the standby model. Prevent Burn-in Allows the user to select the prevent Burn In model. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 13: Specifications
Electrical Rating 12V DC / 3A (AC 100V ~ 240V, 50/60Hz) TEMPERATURE Operating 0~50°C VESA™ Mount Size 100x100mm Specifications subject to change without any notice 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 14: Dimensions
WWW.GVISION-USA.COM Dimensions C22BD-A6-4000 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
