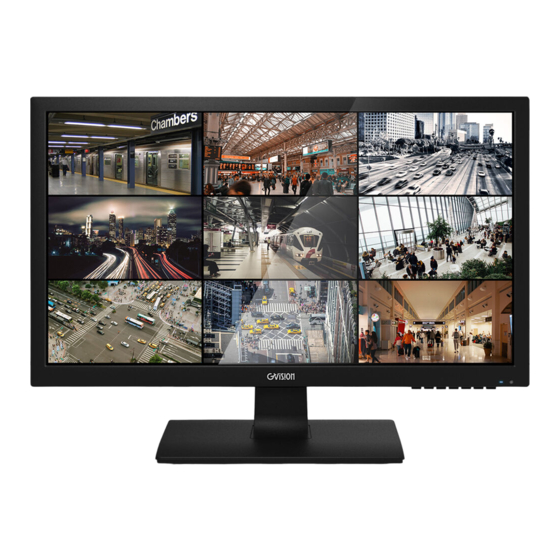

- Page 1 WWW.GVISION-USA.COM C27BD-AU-4000 USER’S MANUAL SECURITY CCTV MONITOR GVISION USA, INC 30398 Esperanza, Rancho Santa Margarita CA 92688 / 949.586.3338 / info@gvision-usa.com...
- Page 2 CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not supplied with this equipment, please contact GVISION. For all other cases, please use the power cord with the plug style that matches the power socket where the monitor is located.
- Page 3 Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
-
Page 4: Table Of Contents
Controllers & Settings……………………………………………………………………………………………………5 1.1 Monitor Interface………………………………………………………………………………………………….5 1.2 Monitor Controller Button……………………………………………………………………………………….6 1.3 Remote Control……………………………………………………………………………………………………7 1.4 OSD Menu………………………………………………………………………………………………………..8 1.4.1 Picture...…………………………………………………………………………………...……………...8 1.4.2 PC…………………………………………………………………………………………………………10 1.4.3 Sound…………………………………………...………………………………………………………..11 1.4.4 Setting…………………………………………………………………………………………………….12 Specifications…………………………………………………………………………………………………………...13 Dimensions…………………………………………………………………………………..…………...…....14 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 5: Controllers & Settings
WWW.GVISION-USA.COM Controllers & Settings GVision’s 27″ 1080p Full HD CCTV security monitor is designed for 24 / 7 operating. It support HDMI, VGA, BNC CVBS and BNC AHD/TVI/CVI looping inputs. C24BD security CCTV monitor is featured Anti-Pixel burn technology and superior quality V56 chipset. -
Page 6: Monitor Controller Button
Enter the menu, save the adjustment of sub-menu and exit the OSD LEFT/RIGHT Change the value on selected menu UP/DOWN Switch a menu on OSD POWER Monitor Power On / Off 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 7: Remote Control
YPbPr Input Select - N/A Left HDMI Input Select Menu AV Input Select - CVBS Right TVI Input Select - N/A Down DVI Input Select - N/A 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 8: Osd Menu
Choose between SD 4:3 and HD 16:9 aspect ratio. If analog images Aspect Ratio appear stretched use 4:3 scaling. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... - Page 9 Adjust color reproduction: choose between Warm/ User/ Cool/ Color Temperature Medium. In the “USER”, setting you have full control to alter the individual settings “Red:0-100, Green: 0-100, and Blue:0-100. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
- Page 10 Adjust the H-Position position of picture.value:0~100. V-Position Adjust the V-Position position of picture.value:0~100. Clock Adjust the Clock of picture.value:0~100. Phase Adjust the Phase of picture.value:0~100. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
-
Page 11: Sound
Adjust the Bass of picture.value:0~100. Balance Adjust the Balance of picture. Value: -50 ~ +50. Surround Adjust sound effect, Value: Surround, Off, SRS TruSurround XT 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 12: Setting
No Signal Standby Allows the user to select ON/OFF the standby model. Prevent Burn-in Allows the user to select the prevent Burn In model. 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 13: Specifications
Electrical Rating 12V DC / 3A (AC 100V ~ 240V, 50/60Hz) TEMPERATURE Operating 0~50°C VESA™ Mount Size 100x100mm Specifications subject to change without any notice 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com... -
Page 14: Dimensions
WWW.GVISION-USA.COM Dimensions C27BD-AU-4000 52.07 624.07 12.7 18.79 12.7 192.78 277.87 30398 Esperanza Rancho Santa Margarita CA 92688 / Tel. 949-586-3338 / Fax. 949-272-4594 / Email. info@gvision-usa.com...
