L N
Gnd
EMI Filter
Output: 700mA (2-15 VDC)
LED
Driver
Input: 120 VAC
SEL0115572A
NOTE: *COMPONENTS AND WIRES DRAWN WITH THE DASHED LINE ARE OPTIONAL.
12

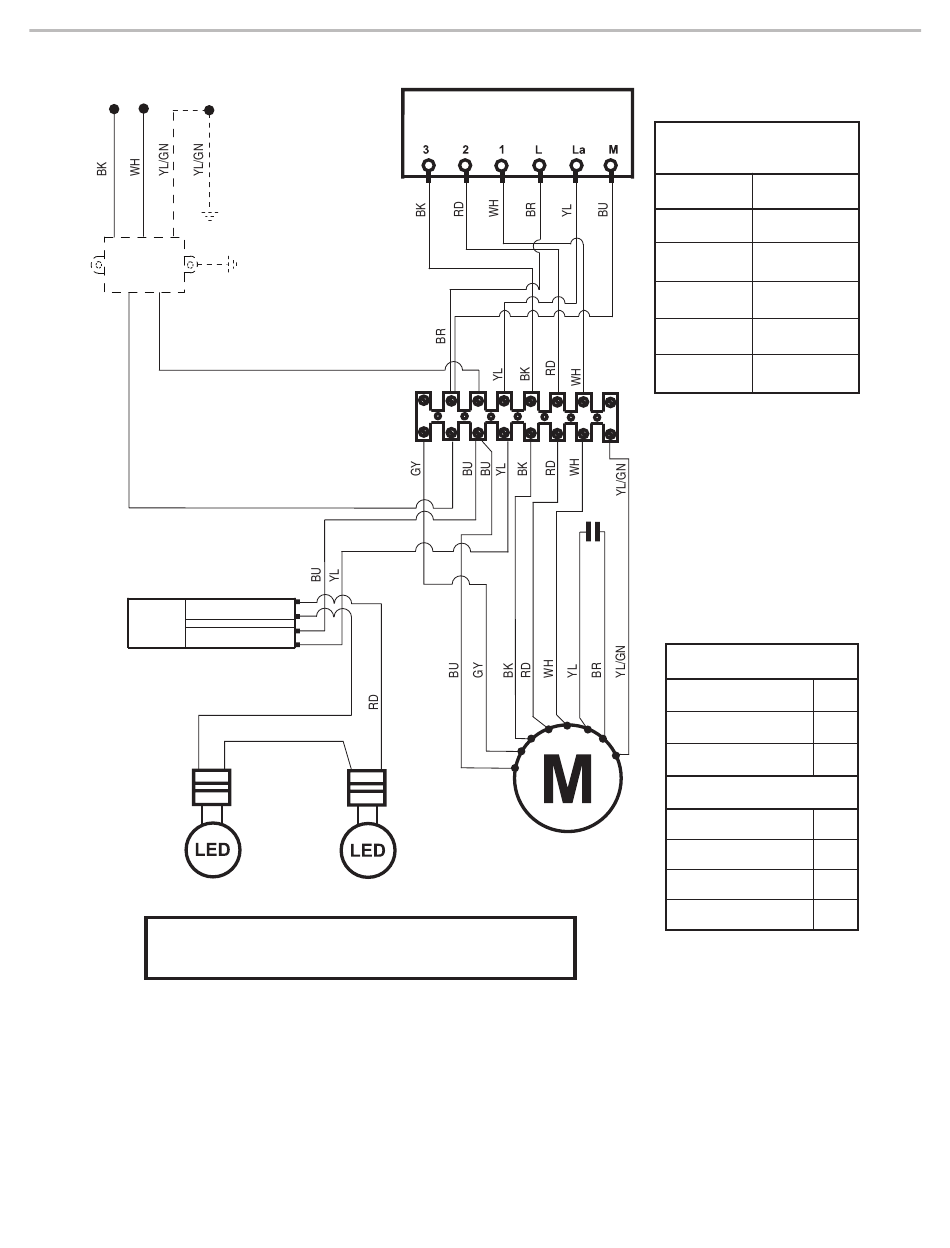

WIRING DIAGRAM
WH
BK
+
-
BK
BU
Push Button Switch
BU
Push Button
Switch Operation
FUNCTION
POSITION
Off
No Connection
Lamps
Blue/Yellow (M-La)
Low Speed
Brown/White (L-1)
Med Speed
Brown/Red (L-2)
High Speed
Brown/Black (L-3)
Motor Specifications
Power Supply
120 VAC
Frequency
60 Hz
Power Absorption
240 W
Motor Resistance (Ω)
Blue/Black
17.7
Blue/Gray
27.1
Blue/Red
34.6
Blue/White
41.2
