Hager EK051 - Bimetal Room Thermostat Manual

Product presentation

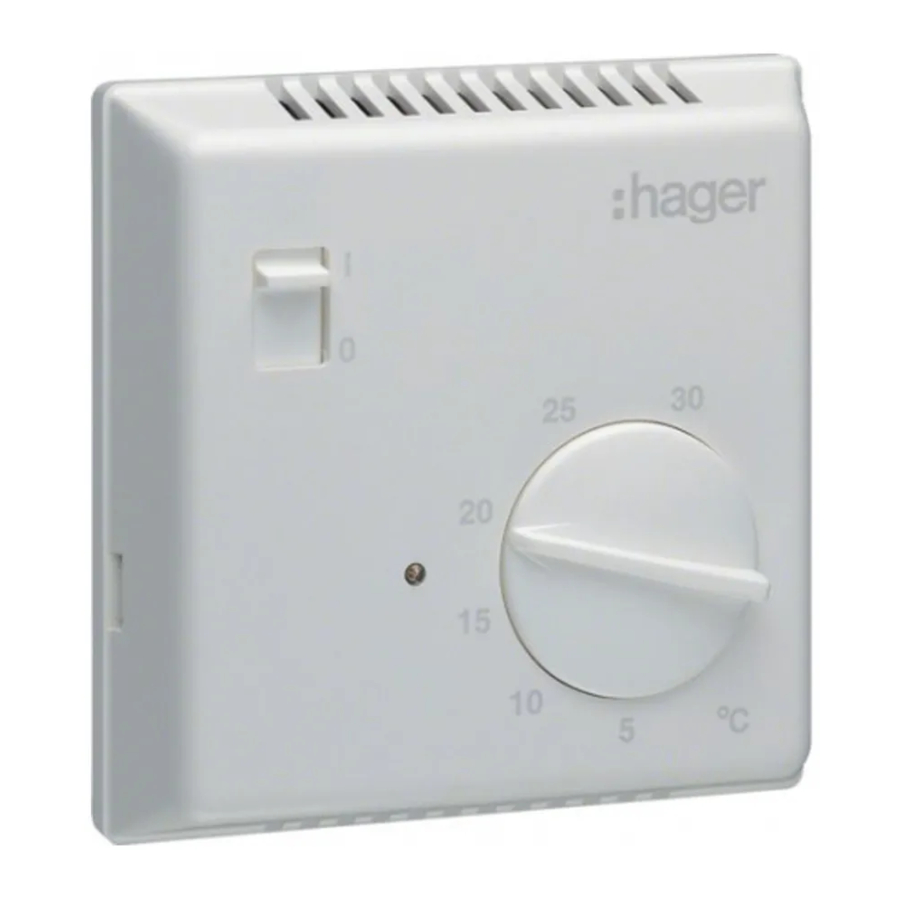

The EK051 is a bimetallic room thermostat designed to control heating installations.

Adjustable temperature's range

Some days after the installation, measure the room temperature with a reference thermometer.

Draw back the knob and locate it to reach the same value of the reference thermometer.

Electrical connection

Temperature's range limitation

It is possible to limit mechanically the temperature's range (between 10° to 20°C for example) or even to lock the temperature range at a fixed temperature (20°C for example).

For that:

1. Take the two range limiting nibs which are found in the thermostat base.


2. Locate the knob to indicate a precise value (20°C for example) and remove it.
3. Place the two range limiting nibs.

   Ex: to lock the temperature's range at 20°C
4. Put back the knob and check that the temperature's range is limited to the requested values.

Installation of the EK051 thermostat

Install the thermostat at 1,50 m from the floor, on the internal wall avoiding external influences: ( extraction fan, external wall, sunlight) and internal influences: ( lighting devices, chimney, electrical heater).

Seal the conduit to avoid any draught coming from it.

1. external influences
2. internal influences

Installation

The thermostat can be installed either surface mounted or on a flush box 60 mm.

Cables should arrive from the back.

• take off the front cover
• fix the product's base through the fixing holes
• connect the wires on the terminals
• put back the front cover
• indicating light to signal heating
• switch ON/OFF.

Technical specifications

Electrical characteristics:

• supply: 230V ~ +10/-15% 50/60 Hz
• output: 1 NO contact
  10 A - 250 V ~ AC1
• consumption: 0,5 VA

Functional characteristics:

• ON/OFF regulation
• static differential < 0,5K
• dimensions: 80 x 80 x 30

Environment

• operating temperature: 0°C to +50°C
• storage temperature: -10°C to +65°C
• protection degree: IP 30.

Connection

• flexible: 1 ^□ to 2,5 ^□
• rigid: 1,5 ^□ to 4 ^□

Warranty

A warranty period of 24 months is offered on hager products, from date of manufacture, relating to any material of manufacturing defect. If any product is found to be defective it must be returned via the installer and supplier (wholesaler). The warranty is withdrawn if:

• after inspection by hager quality control dept the device is found to have been installed in a manner which is contrary to IEE wiring regulations and accepted practice within the industry at the time of installation.
• the procedure for the return of goods has not been followed.

Explanation of defect must be included when returning goods.
