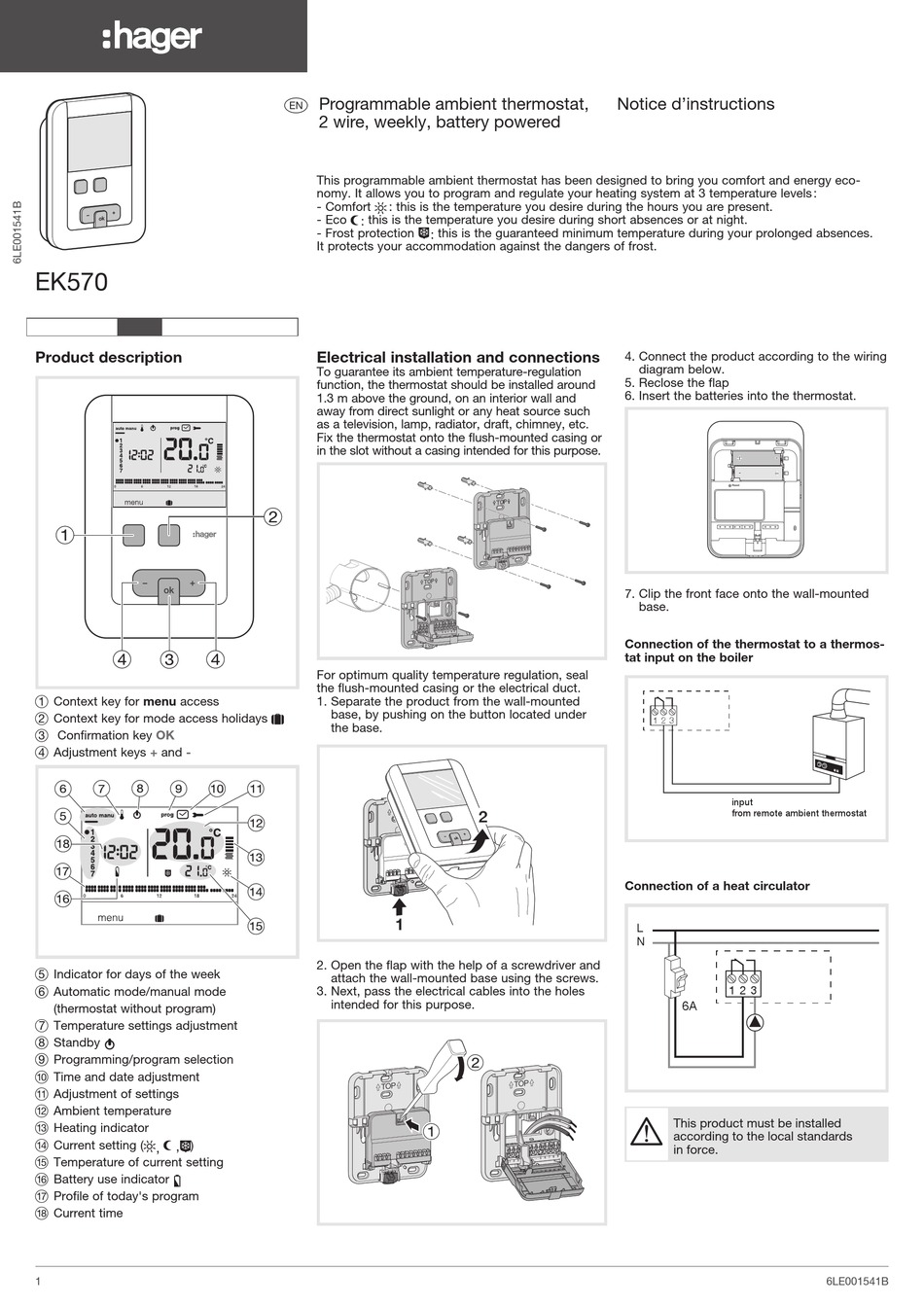

hager EK570 Instructions

EK570
Product description
+
–
ok
Context key for menu access
1
Context key for mode access holidays
2
Confirmation key OK
3
Adjustment keys + and -
4
Indicator for days of the week
5
Automatic mode/manual mode
6
(thermostat without program)
Temperature settings adjustment
7
Standby
8
Programming/program selection
9
Time and date adjustment
A
Adjustment of settings
Z
Ambient temperature
E
Heating indicator
R
Current setting ( , , )
T
Temperature of current setting
Y
Battery use indicator
U
Profile of today's program
I
Current time
O
1

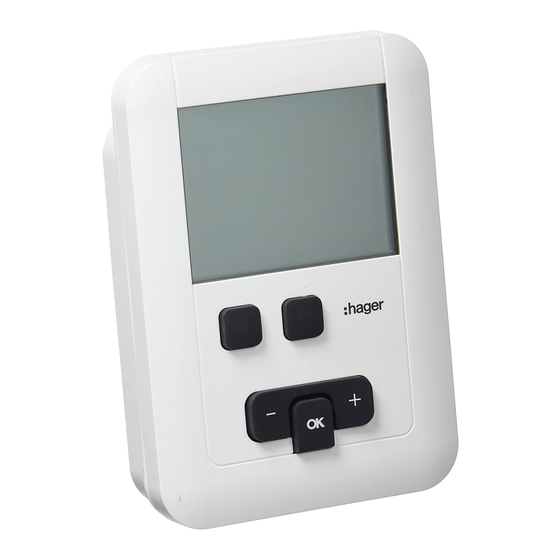

z Programmable ambient thermostat,
2 wire, weekly, battery powered
This programmable ambient thermostat has been designed to bring you comfort and energy eco-
nomy. It allows you to program and regulate your heating system at 3 temperature levels :
- Comfort : this is the temperature you desire during the hours you are present.
- Eco : this is the temperature you desire during short absences or at night.
- Frost protection : this is the guaranteed minimum temperature during your prolonged absences.
It protects your accommodation against the dangers of frost.
Electrical installation and connections
To guarantee its ambient temperature-regulation
function, the thermostat should be installed around
1.3 m above the ground, on an interior wall and
away from direct sunlight or any heat source such
as a television, lamp, radiator, draft, chimney, etc.
Fix the thermostat onto the flush-mounted casing or
in the slot without a casing intended for this purpose.
For optimum quality temperature regulation, seal
the flush-mounted casing or the electrical duct.
1. Separate the product from the wall-mounted
base, by pushing on the button located under
the base.
2. Open the flap with the help of a screwdriver and
attach the wall-mounted base using the screws.
3. Next, pass the electrical cables into the holes
intended for this purpose.
Notice d'instructions
4. Connect the product according to the wiring
diagram below.
5. Reclose the flap
6. Insert the batteries into the thermostat.
30%
7. Clip the front face onto the wall-mounted
base.
Connection of the thermostat to a thermos-
tat input on the boiler
Connection of a heat circulator
This product must be installed
according to the local standards
in force.
6LE001541B
