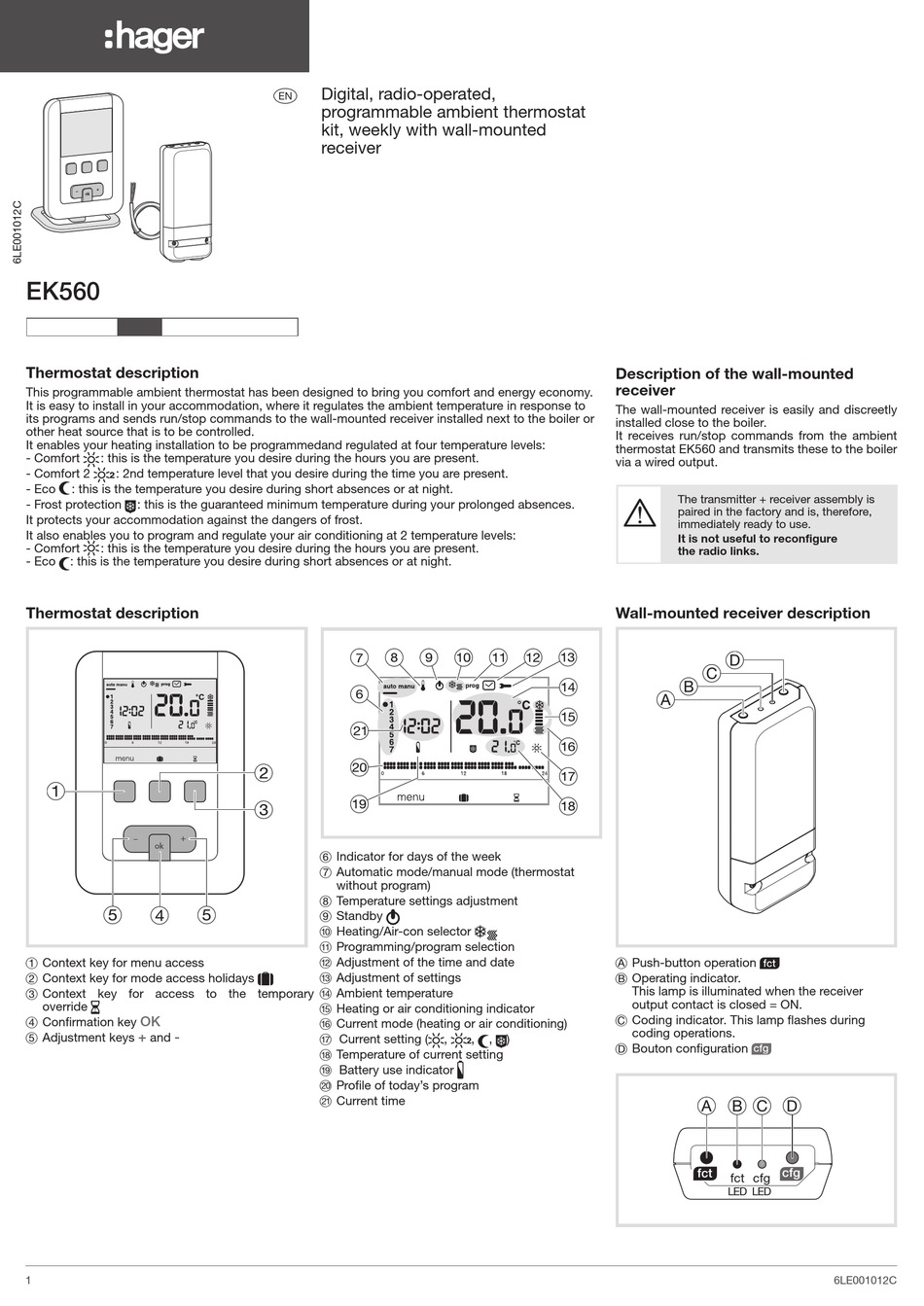

EK560

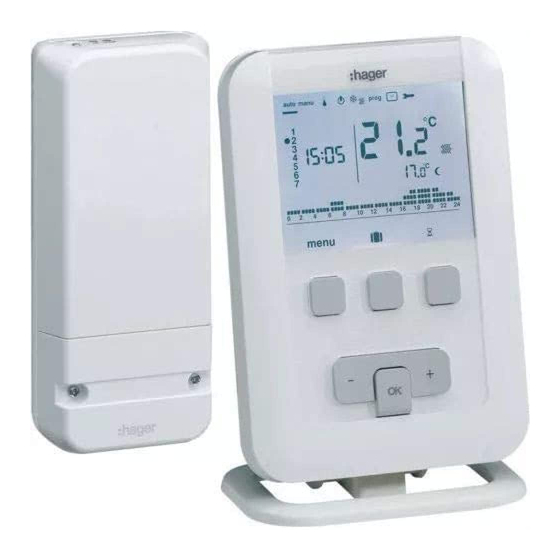

Thermostat description
This programmable ambient thermostat has been designed to bring you comfort and energy economy.
It is easy to install in your accommodation, where it regulates the ambient temperature in response to
its programs and sends run/stop commands to the wall-mounted receiver installed next to the boiler or
other heat source that is to be controlled.
It enables your heating installation to be programmedand regulated at four temperature levels:
- Comfort : this is the temperature you desire during the hours you are present.
- Comfort 2 : 2nd temperature level that you desire during the time you are present.
- Eco : this is the temperature you desire during short absences or at night.
- Frost protection : this is the guaranteed minimum temperature during your prolonged absences.
+
–
ok
It protects your accommodation against the dangers of frost.
It also enables you to program and regulate your air conditioning at 2 temperature levels:
- Comfort : this is the temperature you desire during the hours you are present.
- Eco : this is the temperature you desire during short absences or at night.
Thermostat description
– +
ok
1 Context key for menu access
2 Context key for mode access holidays
3 Context key for access to the temporary
override
OK
4 Confirmation key
+ -
5 Adjustment keys and
1
Digital, radio-operated,
z
programmable ambient thermostat
kit, weekly with wall-mounted
receiver
6 Indicator for days of the week
7 Automatic mode/manual mode (thermostat
without program)
8 Temperature settings adjustment
9 Standby
A Heating/Air-con selector
Z Programming/program selection
E Adjustment of the time and date
R Adjustment of settings
T Ambient temperature
Y Heating or air conditioning indicator
U Current mode (heating or air conditioning)
I Current setting ( ,
O Temperature of current setting
P Battery use indicator
Q Profile of today's program
S Current time
Description of the wall-mounted
receiver
The wall-mounted receiver is easily and discreetly
installed close to the boiler.
It receives run/stop commands from the ambient
thermostat EK560 and transmits these to the boiler
via a wired output.
Wall-mounted receiver description
A Push-button operation T
B Operating indicator.
This lamp is illuminated when the receiver
output contact is closed = ON.
C Coding indicator. This lamp flashes during
coding operations.
, , )
D Bouton configuration
The transmitter + receiver assembly is
paired in the factory and is, therefore,
immediately ready to use.
It is not useful to reconfigure
the radio links.
R
cfg
fct
fct cfg
LED LED
6LE001012C
