Lexing LX-PR-29A Instruction Manual

LX-PR-29A Infrared Sensor Instruction

Summary

The product is a new saving-energy switch, it adopts good sensitivity
detector, integrated circuit and SMT. It gathers automatism, convenient safe,
saving-energy and practical functions. One detector inside compose a wide
range detection field, it utilizes the infrared energy from human as
control-signal source, it can start the load at once when one enters detection
field. It can identify day and night automatically. It is easy to install and used
widely, possessing the functions of power show and detecting show.

Specifications

Power source: 220-240V/AC,50Hz
100-130V/AC,60Hz
Rated load:1200W Max.tungsten (220-240V/AC)
300W Max.fluorescent (220-240V/AC)
600W Max.tungsten (100-130V/AC)
150W Max.fluorescent (100-130V/AC)
Time setting: 10±3sec~8±3min
Sensor´s LED:
1. It always light after switch on power, and be off after the unit enter working state.
2. It light once when the unit receives sensing signal.
Sensor information
Height of installation2.5~3.5m

Function

You can manually adjust the time setting, Sensitivity and light-control (For detail: see 1.knob setting); it is very easy to use.
Install Sensor at 2.5~3.5m position on the wall (For detail: see 3. installation instruction) and connect the wire according to
the 2. connection figure. Switch on power, after about 1 minute the unit enter stable working state. Here please turn TIME
knob to the position close to minimum, and turn LUX to sun for testing. If it works normally, turn the TIME knob to the
minimum" IMPULSE" position(
above tests go through, then select the time, light-control and sensitivity to your need. So its installation is ok.

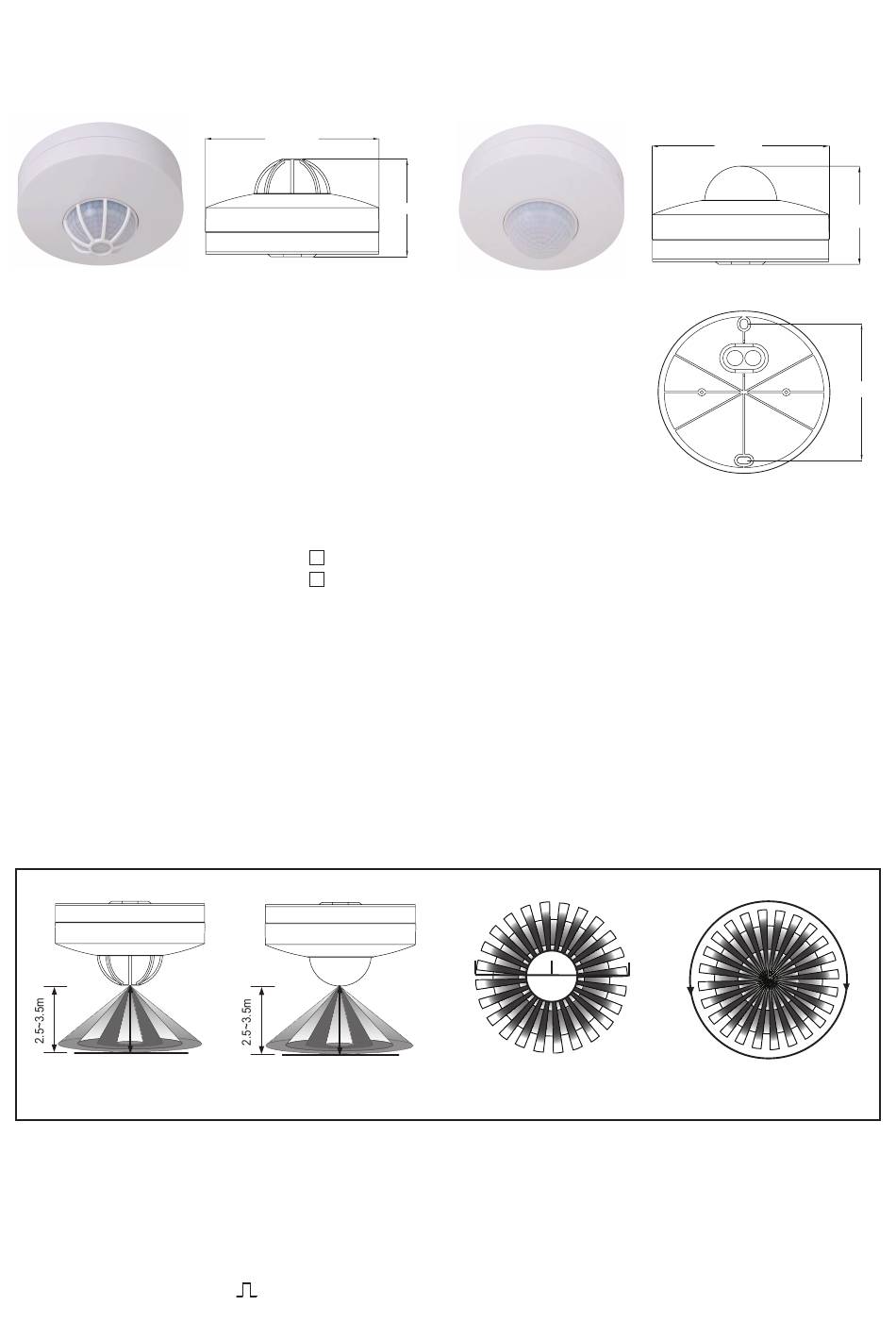

105mm
59mm
Height of installation2.5~3.5m
). When it senses again, the controlled lamp will be turned on and off regularly. If the
Light-control: 10LUX~2000LUX
Detection range: 1-8m (radii.)
Detection angle: 360º (ceiling installation)
Installation height: 2.5~3.5m
Working temperature: -10°C~+40°C
Power consumption: working 0.45W(static 0.1W)
Sense motion speed: 0.6~1.5m/s
1m 1m
8m
1 X Detector
Sensing distance adjustment range
105mm
360°
8m
Sensing angle adjustment range
58mm
88.0mm
