LX-MV-360S2-A-Z Microwave Sensor Instruction
Specifications
Power source: 100-240VAC
Power frequency: 50/60Hz
Rated
load:1200W. any load(220-240VAC)
600W. any load (100-130VAC)
Transmission power: <0.2mW
Working temperature: -15°C~+70°C
Detection angle: 360°
Note:
the high-frequency output of this sensor is
<0.2mW- that is just one 5000 of the transmission
power of a mobile phone or the output of a
microwave oven.
Sensor information
L
14
13
12
11
10
9
8
7
Detection rang: 6M max (Height of installation2M)
Detection rang: 6-7M max (Height of installation6M)
Detection rang: 6-7M max (Height of installation10M)
Utilizing field and introduction

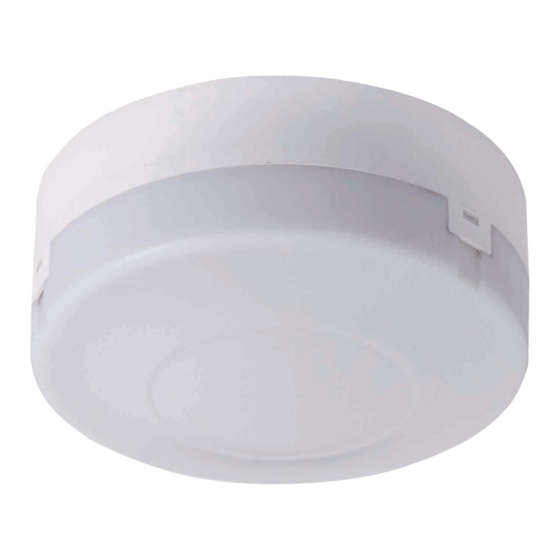

LX-MV-360S2-A-Z is a motion sensor whose detection range is 360° and working frequency is 5.8G. It adopts
a microwave sensor (HFoutput<0.2mW), so it is of more stable and safer performance than PIR motion sensor,
it can also be used where the ambient temperature is about -15°C~+70°C.
th
H
12
11
10
9
8
7
6
5
4
3
2
1
6
5
4
3
2
1
0
1
2
3
4
Ground
Detection range: 2-10m (radii.) (adjustable)
Time setting: 8sec to 12min (adjustable)
Light-ontrol: 2-2000LUX (adjustable)
Power consumption: approx.0.5W
Installation sit: ceiling mounting
HF system: 5.8GHz CW electric wave,ISM band
L
5
6
7
8
9
10
11
12
13
14
Detection rang: 7-8M max (Height of installation4M)
Detection rang: 6-8M max (Height of installation8M)
mm
Transmission power<0.2mW
360º
Sensing angle adjustment range
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lexing LX-MV-360S2-A-Z
Summary of Contents for Lexing LX-MV-360S2-A-Z
- Page 1 Detection rang: 6-7M max (Height of installation10M) Utilizing field and introduction LX-MV-360S2-A-Z is a motion sensor whose detection range is 360° and working frequency is 5.8G. It adopts a microwave sensor (HFoutput<0.2mW), so it is of more stable and safer performance than PIR motion sensor,...
- Page 2 Installation 1、Through the buckle under cover(see fig.1)(fig2) 2、Hold base against the Ceiling and mark drill holes, paying attention to any existing wiring in the Ceiling(fig.3); 3、Drill the holes, insert wall plugs (6mm dia.);(see fig.4); fig.1 fig.2 fig.3 Warning! When you are drilling ,please make sure you wear glasses and dust masks to prevent the dust fly into the nose and throat causing unnecessary trouble...
- Page 3 If you want LX-MV-360S2-A-Z to detect small zone, you can just adjust the sense knob SENS to the range that you need (You may need to adjust some times untill you think it is suitable).If you want that the light can be...
- Page 4 Warning! The following situations will lead to error reaction. 1、Being installed on the rocking object will lead to error reaction. 2、The shaking curtain blown by wind will lead to error reaction. Please select the suitable place to install. 3、Being installed where the traffic is busy will lead to error reaction. 4、The sparks produced by some equipment nearby will lead to error reaction.
