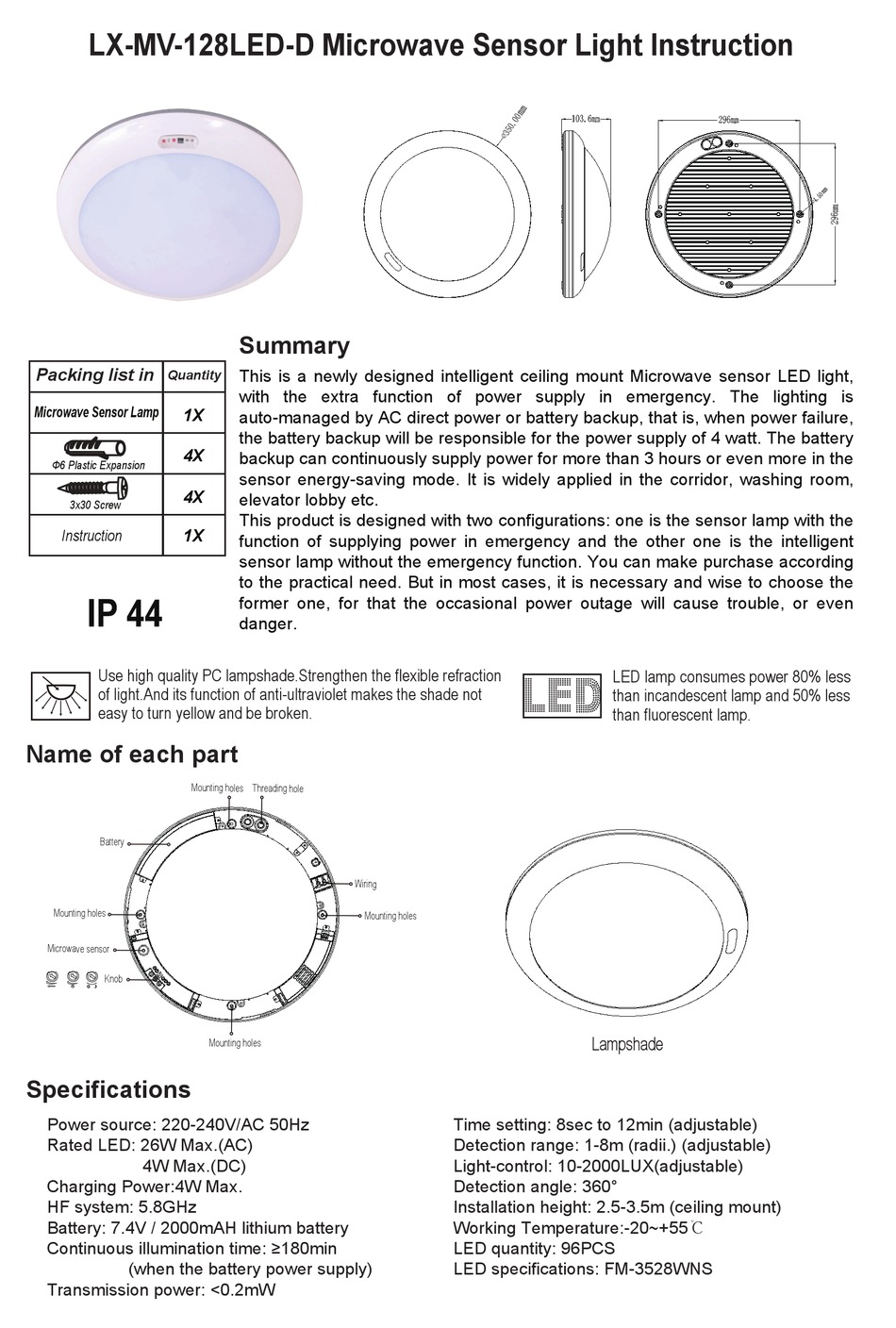

LX-MV-128LED-D Microwave Sensor Light Instruction
Packing list in
Quantity
Microwave Sensor Lamp
1X
4X
Φ6
Plastic Expansion
4X
3x30 Screw
1X
Instruction
IP 44
Use high quality PC lampshade.Strengthen the flexible refraction
of light.And its function of anti-ultraviolet makes the shade not
easy to turn yellow and be broken.
Name of each part
Specifications
Power source: 220-240V/AC 50Hz
Rated LED: 26W Max.(AC)
4W Max.(DC)
Charging Power:4W Max.
HF system: 5.8GHz
Battery: 7.4V / 2000mAH lithium battery
Continuous illumination time: ≥180min
(when the battery power supply)
Transmission power: <0.2mW
Summary
This is a newly designed intelligent ceiling mount Microwave sensor LED light,
with the extra function of power supply in emergency. The lighting is
auto-managed by AC direct power or battery backup, that is, when power failure,
the battery backup will be responsible for the power supply of 4 watt. The battery
backup can continuously supply power for more than 3 hours or even more in the
sensor energy-saving mode. It is widely applied in the corridor, washing room,
elevator lobby etc.
This product is designed with two configurations: one is the sensor lamp with the
Function of supplying power in emergency and the other one is the intelligent
sensor lamp without the emergency function. You can make purchase according
to the practical need. But in most cases, it is necessary and wise to choose the
former one, for that the occasional power outage will cause trouble, or even
danger.
LED lamp consumes power 80% less
than incandescent lamp and 50% less
than fluorescent lamp.
Lampshade
Time Setting: 8sec to 12min (adjustable)
Detection range: 1-8m (radii.) (adjustable)
Light-control: 10-2000LUX(adjustable)
Detection angle: 360°
Installation height: 2.5-3.5m (ceiling mount)
Working Temperature:-20~+55℃
LED quantity: 96PCS
LED specifications: FM-3528WNS
Advertisement
Table of Contents
Related Manuals for Lexing -MV-128LED-D
Summary of Contents for Lexing -MV-128LED-D
- Page 1 LX-MV-128LED-D Microwave Sensor Light Instruction Summary Packing list in This is a newly designed intelligent ceiling mount Microwave sensor LED light, Quantity with the extra function of power supply in emergency. The lighting is Microwave Sensor Lamp auto-managed by AC direct power or battery backup, that is, when power failure, the battery backup will be responsible for the power supply of 4 watt.
- Page 2 In case of sudden blackout, our products can still work properly In case of sudden blackout and there is nobody in the surrounding After the blackout, people evacuate from the elevator 安全出口 安全出口 EXIT EXIT * Installed in the elevator, when power fails, it still supports lighting for the trapped. Fig.1 Sensor information 360º...
- Page 3 Detection range setting (sensitivity) Detection range is the term used to escribe the radii of the roughly circle casting on the ground when installed at the height of 2.5 m. To turn the knob fully anti-clockwise is the minimum range（approx.1m radii), fully clockwise is the maximum(approx.8m radii). NOTE: the above detection range is gained in the case of a person who is between 1.6m~1.7m tall with middle figure and moves at a speed of 1.0~1.5m/sec.
- Page 4 Installation location: 1、There is an optical sensor inside the lamp(as fig.4),during the installation,it should be turned to where the sunshine is sufficient.At the same time,it should avoid other light sources,which will influence the judgement of optical sensor to the ambient illumination. 2、For different people have different demand on installation location and ambient illumination,the LUX value differs.It will take times to adjust the value to your need.
- Page 5 • Step1 Seperate the lamp into two parts:A and B. Fig.7 • Step2 Turn the knobs to the ideal conditions (Please define the settings as per the above FUNCTION part mentioned.). • Step3 Put the base of the product on the ceiling to make the drilling mark (as Fig.8) •...
- Page 6 • Step8 Rotate the lampshade clockwise into the base.Installation finished. (as Fig.13) Fig.13 Fault and the solution Fault Failure cause Solution Light-illumination is set incorrectly. Adjust the setting of the load. The load fails to work. The load is broken. Change the load.
- Page 7 Application Warning! 1.The LEDS in serial can function when all the seals installed in place. 2.Please don’t remove or connect with other lamp when powered on. 3.When the LEDS in serial are damaged ,you need experienced technician to repair using the same rating LEDS.
