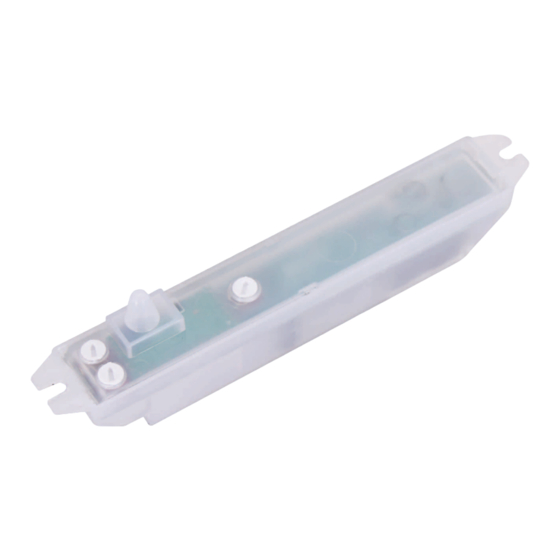

LX-MV-360S18 Microwave Sensor Instruction
Summary
This is a hi-precision digital microwave sensor whose detection range is 360°and working frequency is
5.8GHz. It is based on Doppler principle which integrates the emitting and receiving. It adopts MCU (Micro
Control Unit) that greatly increases its precision and decreases its fault rate. It's delicate in appearance and
compact in structure. It can be independently connected to the loads or easily installed inside the lightings with
lampshade made of glass or plastic. It is widely applied in the passageway, washroom, elevator, household or
other public areas for security protection or energy saving. It applies for several technical patents and is the
perfect choice for your intelligent living.
Features
1.Non-radiation harm: its transmitter power is lower than 0.3mW, which does no harm to human body.
2.Reliable & Stable performance: it applies the RC filtering and digital filtering in digital processing. It also
uses the digital zero trigger technology, that is, at zero point it will be auto-connected or auto-disconnected. It
adopts power management chip to guarantee its stable performance in 100-240V/AC.
3.Remote setting: it is designed with the remote function, that is, you can preset its function by potentiometer
or remote controller to your practical need.
Specifications
Power source: 100-240V/AC
Power frequency: 50/60Hz
Transmission power: <0.3mW
Rated load:
1200W Max,tungsten(cosφ=1)(220-240V/AC)
300W Max,fluorescent(cosφ=0.5)(220-240V/AC)
600W Max,tungsten(cosφ=1)(100-130V/AC)
150W Max,fluorescent(cosφ=0.5)(100-130V/AC)
Working temperature: -15°C~+70°C
Sensor information
Height of installation2.5-3.5m
145mm
129mm
Protection level: IP20,Class II
Installation sit: indoors, ceiling mounting
HF system: 5.8GHz CW electric wave,ISM band
Detection angle: 360°(Ceiling installation)
Detection range: 1-8m (radii.)
Time Setting: 8sec-12min, (adjustable)
Light-control: 10-1000LUX, (adjustable)
Power consumption: approx.0.5W
Min:1m
Min:1m
Max:8m
Sensing distance adjustment range
138mm
(adjustable)(Ceiling installation)
360º
Max:8m
Sensing angle adjustment range
