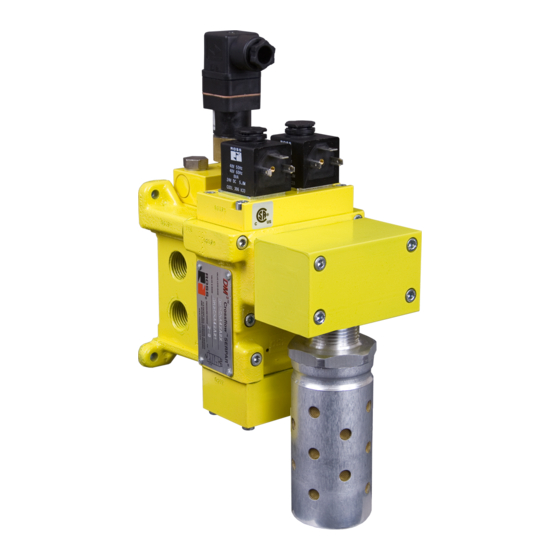

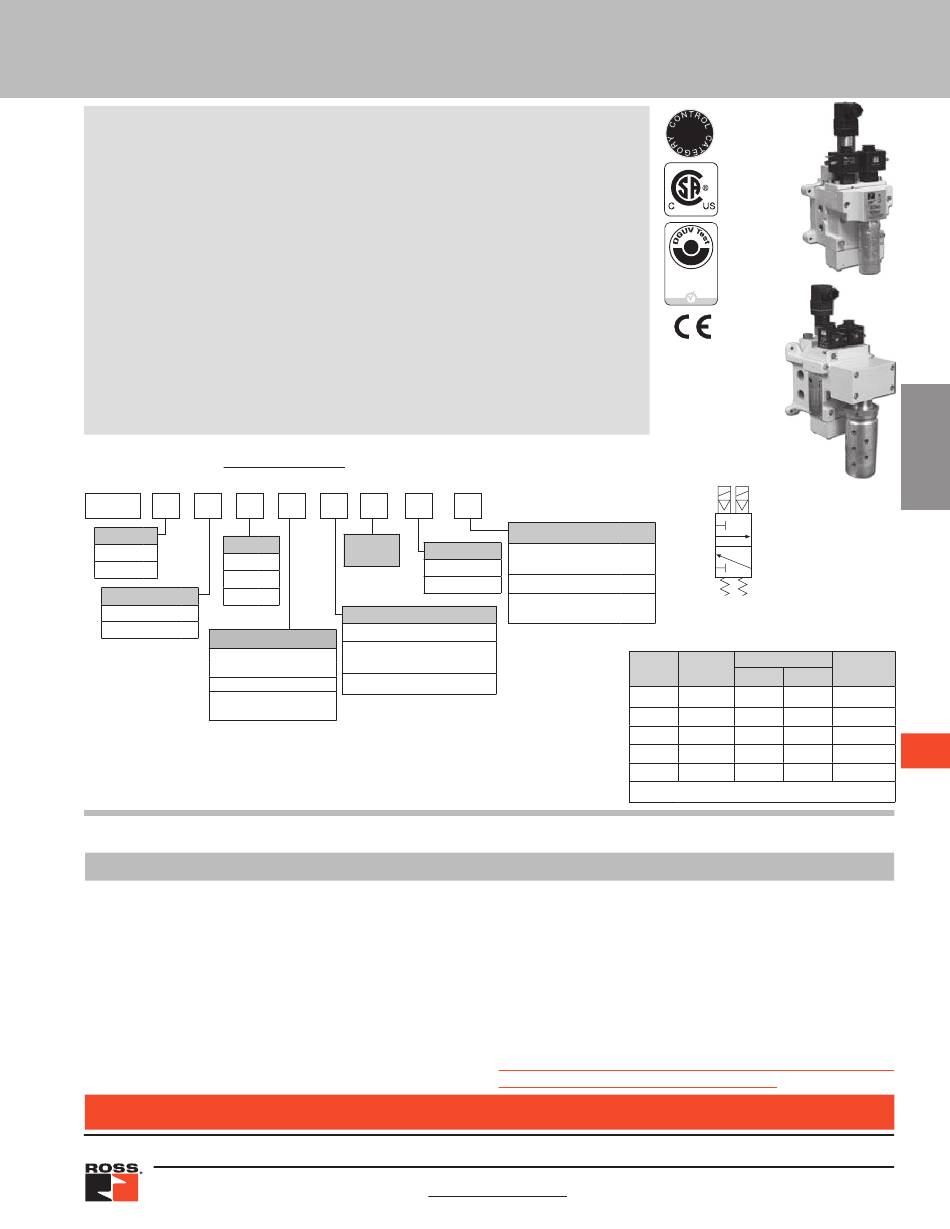

Control Reliable Double Valves
with Dynamic Monitoring
Dynamic Monitoring:
Monitoring and air flow control functions are integrated into two identical valve
elements for CAT 4 applications. The valve exhausts downstream air if asynchronous movement of
valve elements occurs during actuation or de-actuation, resulting in a residual outlet pressure of less
than 1% of supply. If the abnormality clears itself, the valve will return to the ready-to-run state; there
is no memory of the abnormal behavior, as in the ROSS DM
that require an intentional reset following lockout.
Basic 3/2 Normally Closed Valve Function:
quick response and high flow capacity. PTFE back-up rings on pistons to enhance valve endurance –
operates with or without inline lubrication.
Ready-to-run:
If an abnormality clears itself upon the removal of electricity to both solenoids, it will be
ready-to-run again. It does not remember the abnormality and stay in a locked-out state until intentionally
reset. Therefore, cumulative abnormalities may go undetected.
Status Indicator:
Includes a pressure switch with both normally open (NO) and normally closed (NC)
contacts to provide status feedback to the control system indicating whether the valve is in the "ready-
to-run" condition or has experienced abnormal function. MUST be integrated into machine controls in
order to prevent run signal until fault is cleared in valve. This indicator only reports status, it is not part
of a lockout function.
Silencers:
All models include high flow, clog resistant silencers.
Mounting:
Base mounted – with BSPP or NPT pipe threads. Inlet and outlet ports on both sides
provide for flexible piping (plugs for unused ports included). Captive valve-to-base mounting screws.
HOW TO ORDER
(Choose your options (in red) to configure your valve model number.)
DM1C
N
A
4
Thread
Basic Size
BSPP
D
2
NPT
N
4
REVISION LEVEL
8
Size 4, 8, 12, 30
A
Size 2
B
Base Port Size
1/4 inlet – 1/4 outlet
2
3/8 inlet – 3/8 outlet
4 1/2 inlet – 1/2 outlet
3/4 inlet – 3/4 outlet
8
1 inlet – 1 outlet
Explosion proof solenoid pilot available for basic size 4 valves, for more information consult ROSS.
Construction: Dual poppet.
Mounting Type: Base mounted.
Pilot Solenoids: According to VDE 0580. Enclosure rating according to
DIN 400 50 IP 65. Three solenoids, rated for continuous duty.
Standard Voltages/Pilot Solenoids Power Consumption
(each solenoid):
Basic Size 2 & 4:
24 volts DC; 110 volts AC, 50 Hz; 120 volts AC, 50/60 Hz.
5.8 watts nominal on AC and DC; 6.5 watts maximum on AC and DC.
Basic Size 8:
15 watts on DC; 36 VA inrush and 24.6 VA holding on AC.
Enclosure Rating: IP65, IEC 60529.
Electrical Connection: EN 175301-803 Form A, or M12.
This valve is not designed for controlling clutch/brake mechanisms on mechanical power presses,
Online Version
Rev. 11/14/16
2®
Series E and DM
Dirt tolerant, wear compensating poppet design for
2
A
3
1
Automatic
Status Indicator
Reset Type
2
Yes
4
No
5
Voltage*
24 volts DC
110 volts AC, 50 Hz
0
120 volts AC, 50/60 Hz
1
2
*
For other voltages consult ROSS.
4
5
see DM2
series D for mechanical power press applications.
®
Please read carefully and thoroughly all of the
www.rosscontrols.com
2®
Series C products
ISO 13849-1:2006
Connection Type
EN 175301-803 Form
A*
Blank
(connector not included)
1
M12 (connector included)
005
X
*See options for connectors
or wiring kits.
A
B
Basic
Size
2
2
4
8
8
#
Valve and base assembly with status indicator.
Ambient Temperature: 15° to 122°F (-10° to 50°C).
Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered, lubricated or unlubricated (mineral oils according
to DIN 51519, viscosity classes 32-46).
Inlet Pressure: Basic Size 2: 45 to 150 psig (3.1 to 10.3 bar).
Basic Size 4, 8, 12, 30: 30 to 120 psig (2.1 to 8.3 bar).
Pressure Switch (Status Indicator) Rating: Contacts - 5 amps at 250
volts AC, or 5 amps at 30 volts DC.
Monitoring: Dynamically, cyclically, internally during each actuating and
de-actuating movement.
Mounting Orientation: Preferably horizontally (valve on top of base) or
vertically with pilot solenoids on top.
Product data for Sistema Library users, pending.
CAUTIONS, WARNINGS
DM
Series C
1
Air Dump / Release
(Basic Size 2
4
DGUV, CE
Certifications
pending)
HSM 16008
Sicherheit seprüft
tested safety
Category 4 PL e
applications
3
2
1
Simplified Schematic
C
Inlet
Weight
V
Port Size
lb (Kg)
1-2
2-3
5.3 (2.4)
1/4
1.67
2.61
3/8
2.17
2.61
5.3 (2.4)
5.9 (2.6)
1/2
3
10
3/4
4.2
13
8.4 (3.7)
8.4 (3.7)
1
4.4
13
on the inside back cover.
F3
F
F3.5
