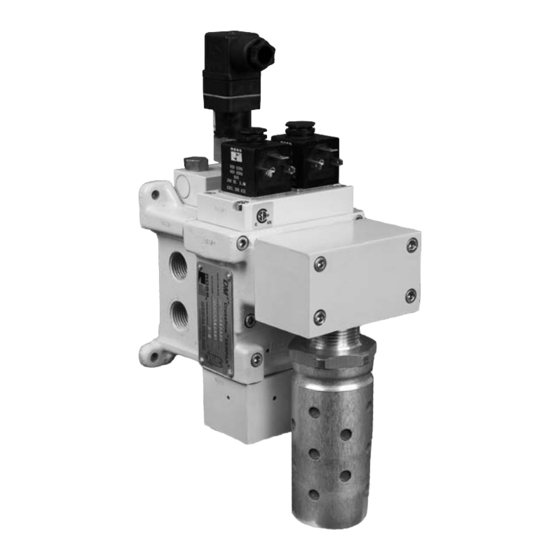

    Control Reliable Double Valves Safety Exhaust (Dump) with Dynamic Monitoring and Memory Series C 2® Basic Size 2, 4, 8, 12 and 30 SIL 3 Functional Safety Dynamic Monitoring With Complete Memory: Memory, monitoring, and air flow control functions are simply integrated into two identical valve elements.
  • Page 3 0.50 (12.7) (4 places) 16.87 1.16 9.73 3.34 (84.8) (428.5) (29.5) (247.1) 2.54 (64.5) 6.14 (156) 1-1/2 NPT Inlet Port 1.73 (Each Side) 2.42 (61.5) (44) Solenoid Reset Online Version F2.12 © ROSS CONTROLS . All Rights Reserved. ® 04/05/19...
  • Page 4 Control Reliable Double Valves Series C 2® with Dynamic Monitoring and Memory Valve Operation & Options Valve De-actuated (ready-to-run): The flow of inlet Valve Actuated: Energizing the pilot valves air pressure into the crossover passages is restricted simultaneously applies pressure to both pistons, by the size of the passage between the stem and forcing the internal parts to move to their actuated the valve body opening.
  • Page 5 M12-DIN cable (1 meter). Pressure switch available separately, see valve options. IMPORTANT NOTE: CAUTIONS, WARNINGS Please read carefully and thoroughly all of the on the inside back cover. Online Version F2.14 © ROSS CONTROLS . All Rights Reserved. ® 04/05/19...
  • Page 6 Air Entry Assemblies with DM Series C 2® Safety Exhaust/Energy Isolation M & RC Series Double Valves with Dynamic Monitoring and Memory M DM Series C Double Valves with Integrated Soft-Start, Manual Lockout L-O-X Valves 2® ® Cat. 4 PL e with Integrated Filter/Regulators Pre-engineered panel mountable design with air entry via a filter and regulator “FR”, or filter, regulator and lubricator “FRL”...

  • Page 7: Standard Warranty

    When bowl gets dirty, replace it or wipe it with a clean dry cloth. All products sold by ROSS CONTROLS are warranted for a one-year period [with the exception of all Filters, Regulators and Lubricators (“FRLs”) which are...
